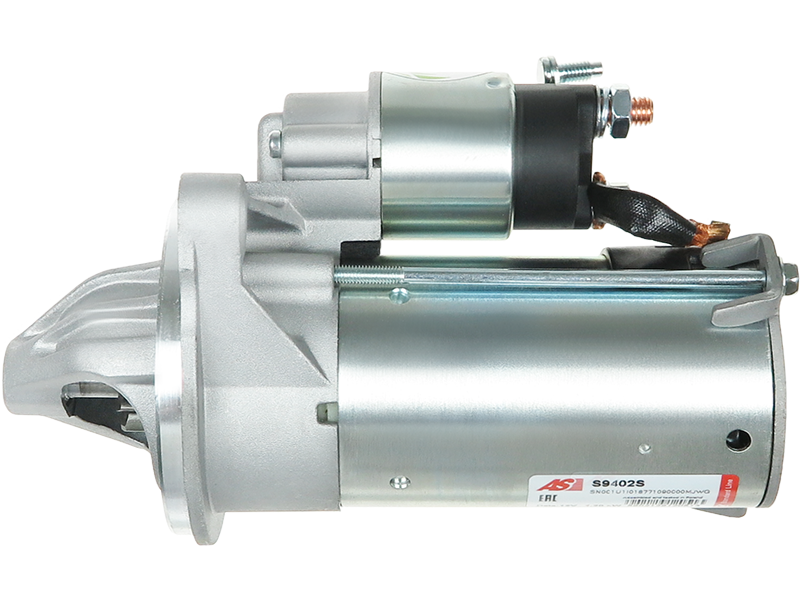

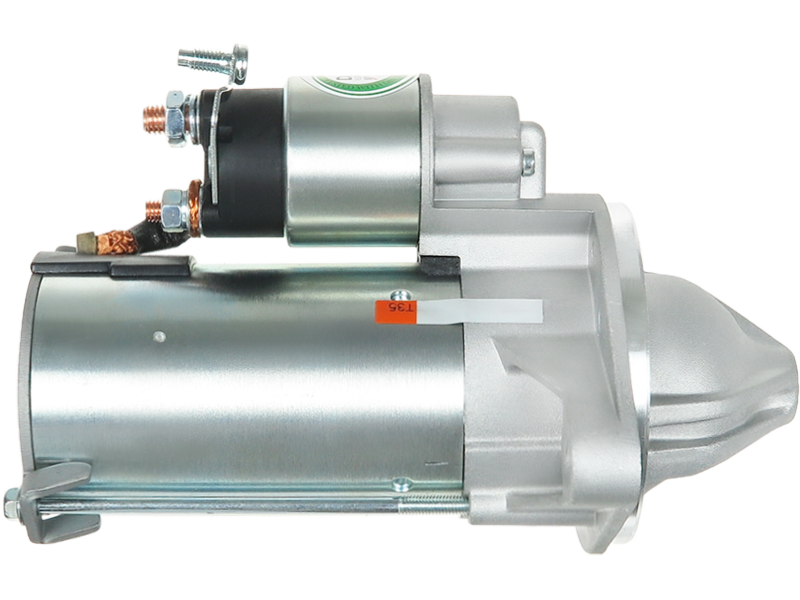

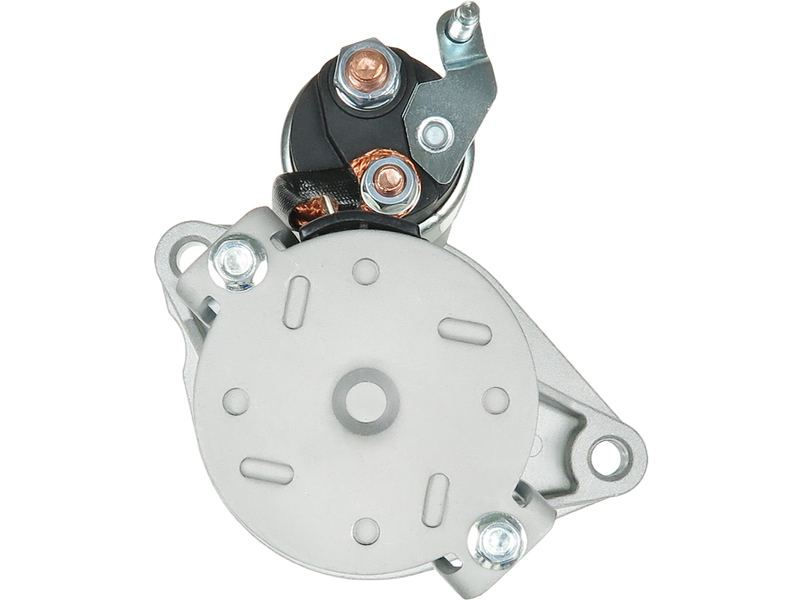

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 271.56 including GST
NZ$ 236.14 excluding GST
or four payments of $67.89
with
Learn More
each
S9402S
1
Information
CV6T-11000-AASpecifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 195 mm |
| Mount Hole Center - Center (O.1) | 115 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 86 mm |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | B-Max 1.0 EcoBoost | [M1JA] | 01.2012- |
| FORD | B-Max 1.0 EcoBoost | [M1JE] | 01.2012- |
| FORD | B-Max 1.0 EcoBoost | [SFJA] | 01.2012- |
| FORD | B-Max 1.0 EcoBoost | [SFJB] | 01.2012- |
| FORD | B-Max 1.0 EcoBoost | [YYJC] | 01.2016- |
| FORD | EcoSport 1.0 EcoBoost | [M1JC] | 01.2013- |
| FORD | EcoSport 1.0 EcoBoost | [YYJD] | 01.2016- |
| FORD | Fiesta 1.0 | [P4JA] | 01.2012- |
| FORD | Fiesta 1.0 | [P4JB] | 01.2012- |
| FORD | Fiesta 1.0 | [XMJA] | 01.2012- |
| FORD | Fiesta 1.0 | [XMJB] | 01.2012- |
| FORD | Fiesta 1.0 EcoBoost | [M1JA] | 01.2012- |
| FORD | Fiesta 1.0 EcoBoost | [M1JE] | 01.2012- |
| FORD | Fiesta 1.0 EcoBoost | [SFJA] | 01.2012- |
| FORD | Fiesta 1.0 EcoBoost | [SFJB] | 01.2012- |
| FORD | Focus 1.0 EcoBoost | [M1DA] | 01.2012- |
| FORD | Focus 1.0 EcoBoost | [M2DA] | 01.2012- |
| FORD | Tourneo Courier 1.0 Eco Boost | [SFCA] | 01.2014- |
| FORD | Tourneo Courier 1.0 Eco Boost | [SFCB] | 01.2014- |
| FORD | Transit Courier 1.0 Eco Boost | [SFCA] | 01.2014- |
| FORD | Transit Courier 1.0 Eco Boost | [SFCB] | 01.2014- |
Reference Information
| 10971N | WAI / TRANSPO |
| 10971-OS | WAI / TRANSPO |
| 11090315 | EUROTEC |
| 12246 | EAI |
| 1776538 | FORD |
| 20479092OE | REAL |
| 220732 | ERA |
| 2380310 | FORD |
| 25-4446 | ELSTOCK |
| 255021V | KUHNER |
| 3227 | CEVAM |
| 438301 | VALEO |
| 458711 | VALEO |
| 590.573.082 | PSH |
| 590.573.082.000 | PSH |
| 590.573.082.500 | PSH |
| 6015290.1 | SANDO |
| 88214446 | POWERMAX |
| CST15290GS | CASCO |
| CV6T-11000-AA | FORD |
| CV6T-11000-AB | FORD |
| CV6T-11000-BA | FORD |
| DRS0952 | DELCO |
| DS2062 | DELCO |
| E4B5-11000-AA | FORD |
| EZ0241 | ELTA AUTOMOTIVE |
| LRS02773 | LUCAS |
| LRS2773 | LUCAS |
| LS12E401 | VALEO |
| RECV6T11000AB | FORD |
| RECV6T-11000-AB | FORD |
| S12VA0699 | SIDAT |
| S12VA0699A2 | SIDAT |
| S134.387 | PSH |
| S144.621 | PSH |
| S-6583 | DIXIE |
| S9402S | AS-PL |
| STR00136 | ELECTROLOG |
| STV2401 | KRAUF |
| STX200949 | STARDAX |
| STX200949R | STARDAX |
| TS12E40 | VALEO |
| UD16513S | AS-PL |
| VAL438301 | WOODAUTO |
