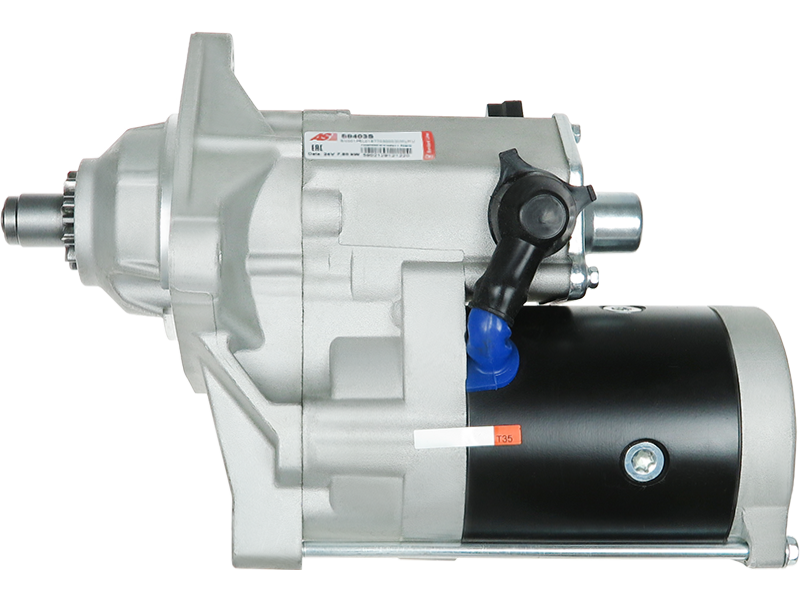

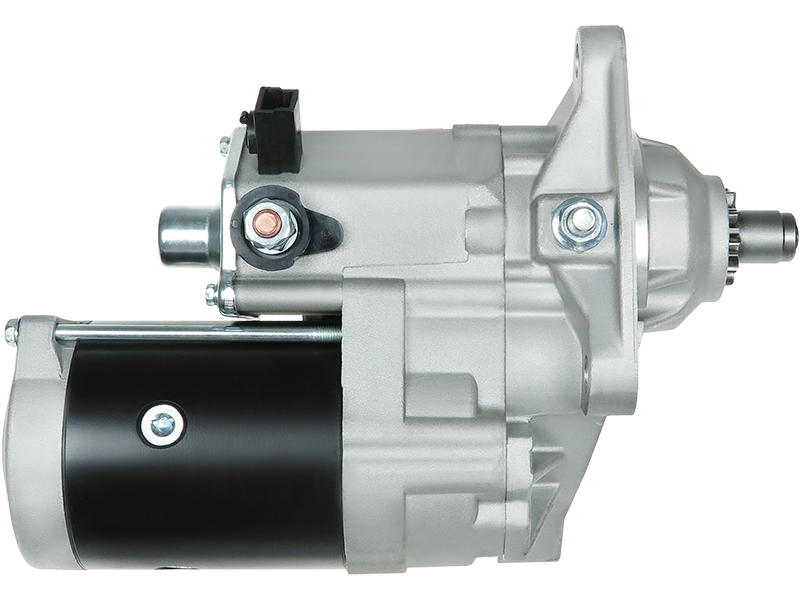

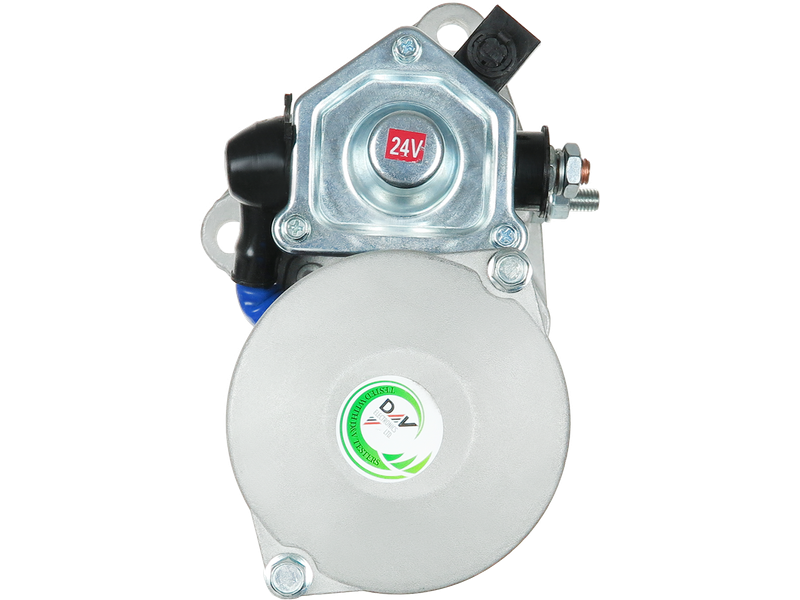

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
CUMMINS
Price:
NZ$ 528.84 including GST
NZ$ 459.86 excluding GST
or four payments of $132.21
with
Learn More
each
S9403S
No stock in NZ currently
No stock in NZ currently
Information
3958033Specifications
| Kilowatt | 7.80 kW |
| Length (L.1) | 317 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 14 mm |
| Mount Hole Diameter (C.2) | 14 mm |
| Mount Hole Diameter (C.3) | 14 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | CUMMINS |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | Various Models |
Reference Information
| 12022101 | CUMMINS |
| 190-30144 | ROBERT'S |
| 19097N | WAI / TRANSPO |
| 20432036BN | REAL |
| 20432036OE | REAL |
| 246-30214 | DIXIE |
| 246-30234 | DIXIE |
| 254750 | KUHNER |
| 254750C | KUHNER |
| 254751C | KUHNER |
| 3958033 | CUMMINS |
| 428000-0060 | DENSO |
| 4280800060 | DENSO |
| 6040630.0 | SANDO |
| 6040630.1 | SANDO |
| 641.515.103 | PSH |
| 701.501.103 | PSH |
| 701.501.103.460 | PSH |
| 91-29-5656 | WILSON |
| CST40630AS | CASCO |
| CST40630GS | CASCO |
| DENDSN2002 | WOODAUTO |
| DSN2002 | DENSO |
| DSN2029 | DENSO |
| S134.742 | PSH |
| S135.496 | PSH |
| S144.703 | PSH |
| S-8920 | DIXIE |
| S9403S | AS-PL |
| STR6205 | ELECTROLOG |
| STR70342 | WOODAUTO |
| STR70347 | WOODAUTO |
| TG4280800060 | DENSO |
| UD90482S | AS-PL |
