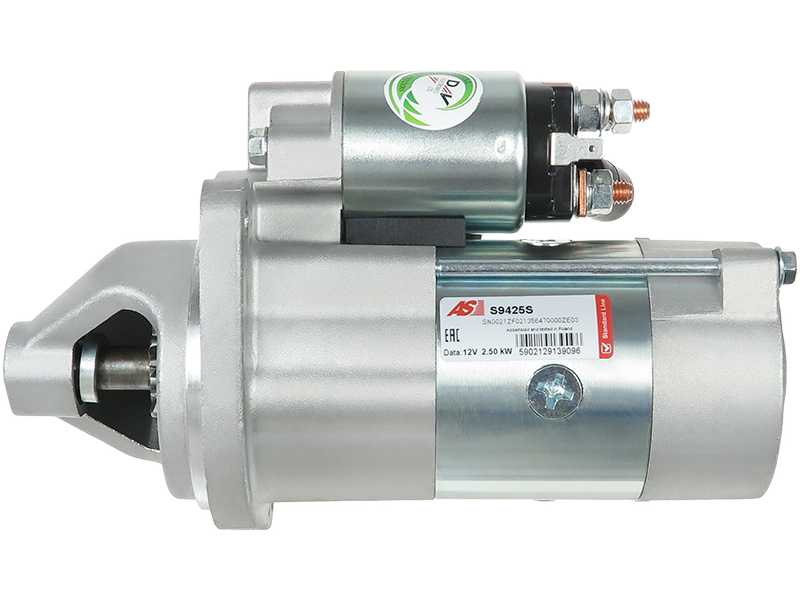

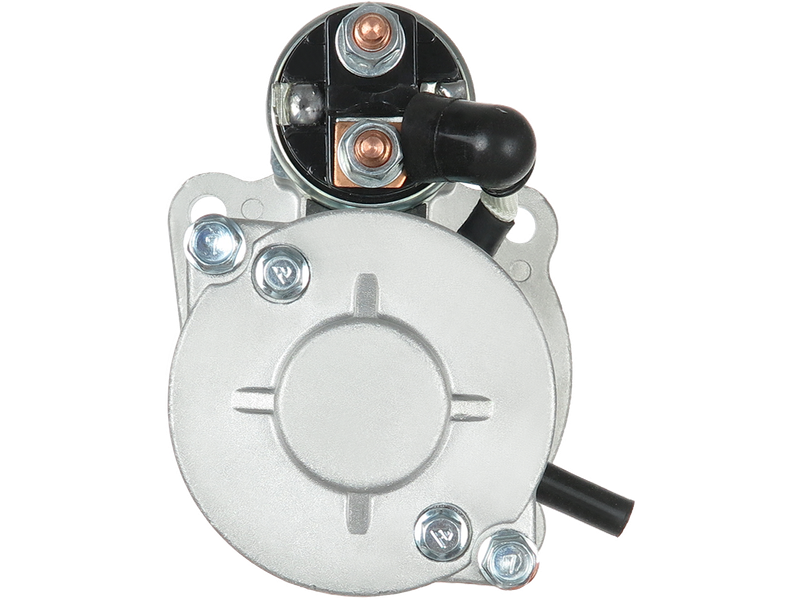

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
CUMMINS
Price:
NZ$ 409.76 including GST
NZ$ 356.31 excluding GST
or four payments of $102.44
with
Learn More
each
S9425S
3
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
5266969Associated Numbers
16-619 16619 ZXS101
5311304 5266969 5295576 5363153
Specifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 242 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 89 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 88.50 mm |
| Unit Type | CUMMINS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | Engine 2.8 | [ISF] | |
| FOTON | AUMARK | ISF | 2018 |
| FOTON | TUNLAND | ISF | 2018 |
| FOTON | VIEW | ISF | 2018 |
| GAZ | 3302 2.8 | [ISF] | |
| GREAT WALL | ISF | 2020 |
Reference Information
| 170-10109 | ROBERT'S |
| 245-30102 | DIXIE |
| 44445266969 | GAZ |
| 5266969 | CUMMINS |
| 5295576 | CUMMINS |
| 5308771 | CUMMINS |
| 5310341 | CUMMINS |
| 5311304 | CUMMINS |
| 5363153 | CUMMINS |
| 700.554.103.200 | PSH |
| M81R2502 | PRESTOLITE |
| M81R2502-VPP | PRESTOLITE |
| S135.552 | PSH |
| S9425S | AS-PL |
| SG2027 | GHIBAUDI |
| STM3969 | KRAUF |
| STP3969 | KRAUF |
| STR3969 | KRAUF |
| STR9779 | ELECTROLOG |
| UD18951S | AS-PL |
Video/Publications
