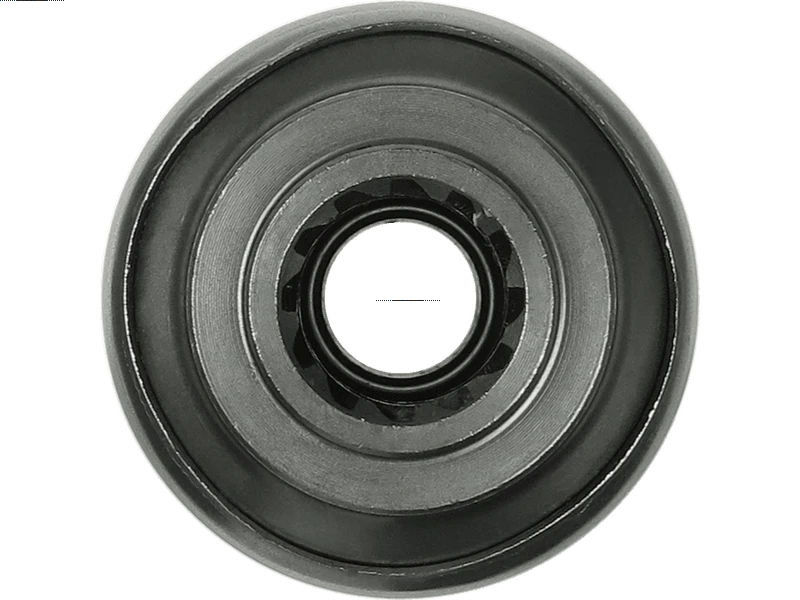

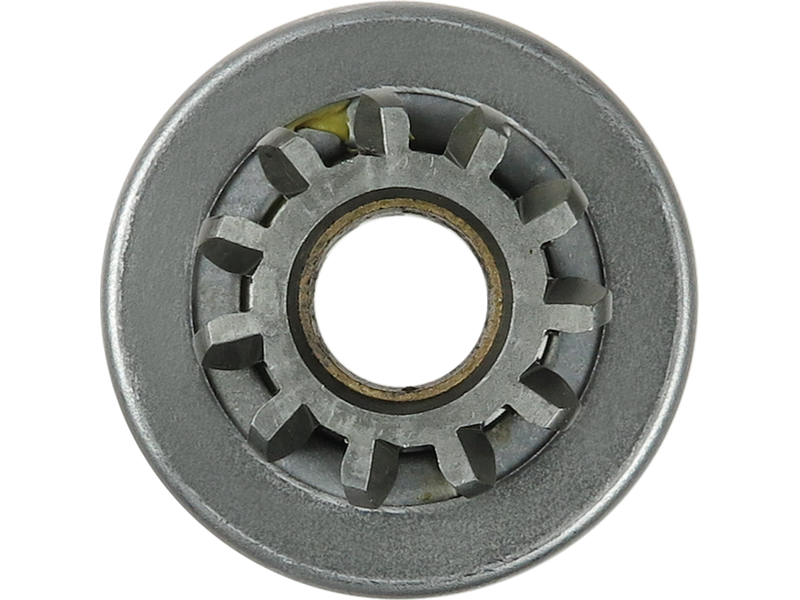

Brand new AS-PL Starter motor drive
PREMIUM LINE
AS-PL
LUCAS
Price:
NZ$ 66.65 including GST
NZ$ 57.96 excluding GST
or four payments of $16.66
with
Learn More
each
SD4096P
No stock in NZ currently
No stock in NZ currently
Associated Numbers
Arrowhead SLU5052 ZN0411 Lucas 54247396 60600077 TMB124 Wilson 61-17-8424 26167 Starter 12V CW DD M45 26278 26278H 26278I 26278J 26301 26301H 27413 2M 27413A 27413B 27413C 27413D 27421 27421A 27421B 27463 27463A 27463B 27463C 27463D 131708 Ghibaudi 3004 KE 20405 KRAUF SDL1708PN Magneti Marelli AMB0117 SUN 54-9216 WAI Zen 0411 10104110 ;26278 UD17668SD AS-PL LUCAS ZEN FIAT/MARELLI 63227413 63227421 STR25027 26278A 26278A/E 26278A/F 26278F STR56007 26301A 26301A/F 26301E 26301F 27413A/D 27421A/B 27463A/D
Specifications
| Inside Diameter (I.D.1) | 17 mm |
| Length (L.1) | 73 mm |
| Length (L.2) | 24.70 mm |
| No./Splines | 12 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 60 mm |
| Outside Diameter (O.D.2) | 39.30 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | LUCAS |
Reference Information
| 0411 | ZEN |
| 1.01.0411.0 | ZEN |
| 131708 | CARGO |
| 225165 | ERA |
| 3004 | GHIBAUDI |
| 54247396 | LUCAS |
| 54-9216 | WAI / TRANSPO |
| 54-9216-ZEN | WAI / TRANSPO |
| 60600077 | LUCAS |
| 81016311 | POWERMAX |
| 940113020117 | MAGNETI MARELLI |
| AMB0117 | MAGNETI MARELLI |
| CQ2010572 | CQ |
| DRV4059 | ELECTROLOG |
| F032131708 | CARGO |
| SD4096P | AS-PL |
| SDL1708 | KRAUF |
| SDV3143 | WOODAUTO |
| TMB124 | LUCAS |
| UD17668SD | AS-PL |
| ZN0411 | ZEN |
Video/Publications
26278 26278H 26301 26301H 27413 27413A 27413D 27421 27421A 27421B 27463 27463A 27463D 63227413 63227421 LRS157 S4014View your shopping basket or Browse other items in Drives, Pinions and Clutches.
