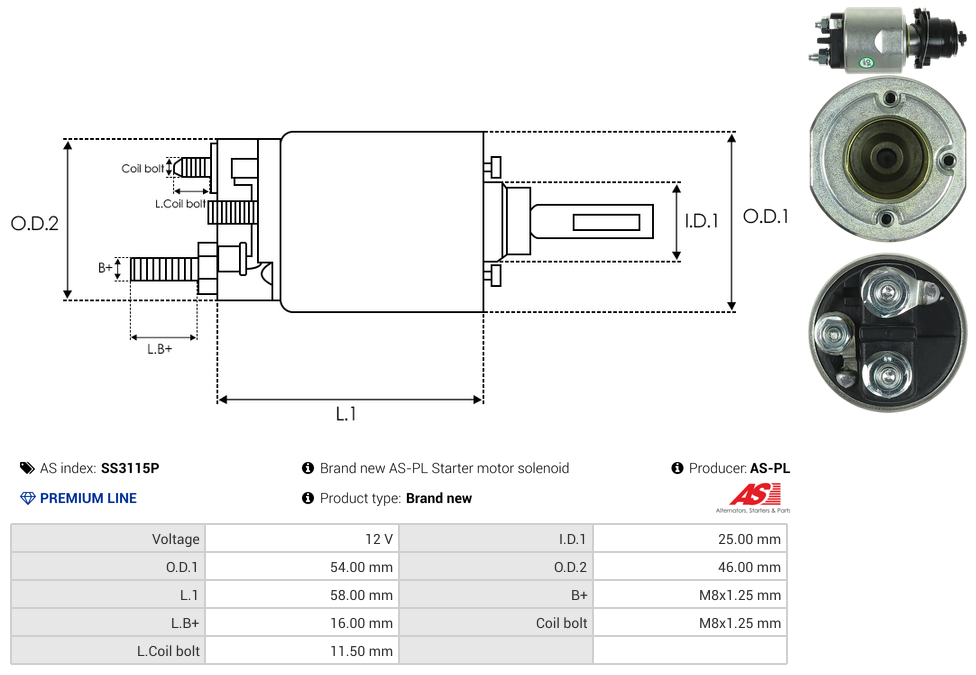

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 11.5 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 16 mm |
Length (L.1) | 58 mm |
Outside Diameter (O.D.1) | 54 mm |
Outside Diameter (O.D.2) | 46 mm |
Type | Solenoid |
Unit Type | VALEO |
Voltage | 12 V |
Reference Information
ZM7494 SS3115PVideo/Publications
ZM7494 TS22E20 SS3115P 458446Add Your Number
