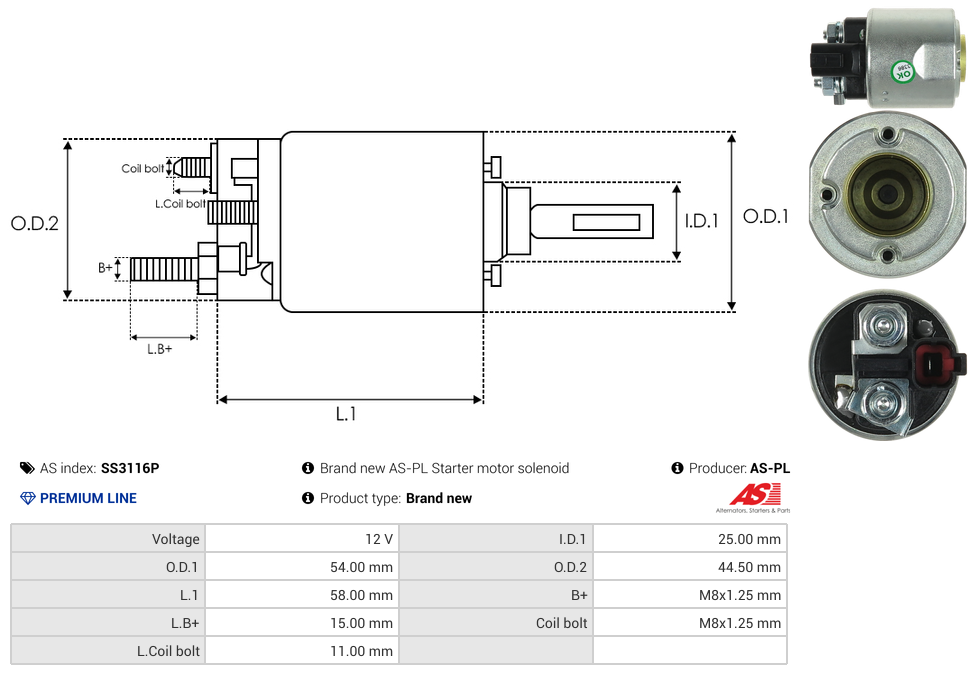

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
Coil Bolt Length | 11 mm |
Inside Diameter (I.D.1) | 25 mm |
L.B+ | 15 mm |
Length (L.1) | 58 mm |
Outside Diameter (O.D.1) | 54 mm |
Outside Diameter (O.D.2) | 44.5 mm |
Type | Solenoid |
Unit Type | VALEO |
Voltage | 12 V |
Reference Information
AME0631 SS3116P 9.40113E+11 36120-2G110 ZM8492 1198988 054.000.135.590 SOL0110 8492Video/Publications
AME0631 SS3116P 1195632 ZM8492 940113050631 1198988 FS14N1Add Your Number
