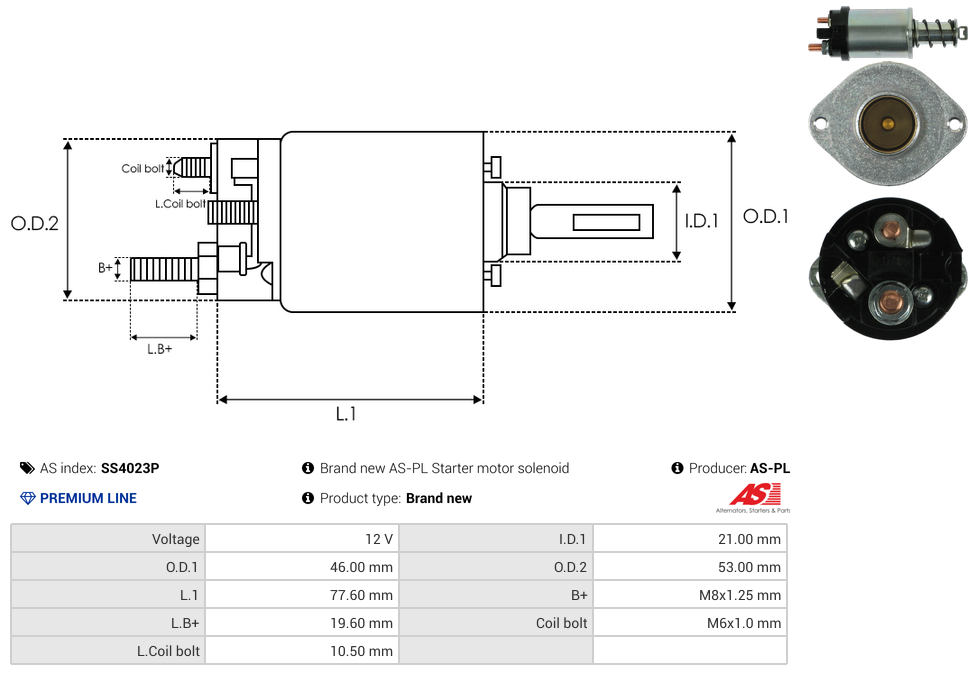

Specifications
B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M6x1.0 mm |
Coil Bolt Length | 10.5 mm |
Inside Diameter (I.D.1) | 21 mm |
L.B+ | 19.6 mm |
Length (L.1) | 77.6 mm |
Outside Diameter (O.D.1) | 46 mm |
Outside Diameter (O.D.2) | 53 mm |
Type | Solenoid |
Unit Type | LUCAS/MARELLI |
Voltage | 12 V |
Reference Information
134457 SSL4457 77177010 77194 77174 SOL4009 23343-Q9000 81016894 054.000.324.100 TPB146 5619 77177 SNLS-327 77174010 77204 ZM5619 CQ2030508 77208 SND1446 TPB140 77204010Video/Publications
26915 26914 26917 26916 26918 26801B 000077204010 63226801 1016894 26930A 26914F 63226803 77194 26914A 63226927 26715 23343-Q9000 26835 26801F 26808A 26905A 26928 26927 26808 26801 26800 26715B 26803 26847 26802 26905D TPB146 26800H 26800D CQ2030508 SND1446 TPB140 134457 26916A 26928A 26803D 26812 26803A ZM5619 000077177010 26927A 26802B SNLS-327 63226800 77208 000077174010Add Your Number
