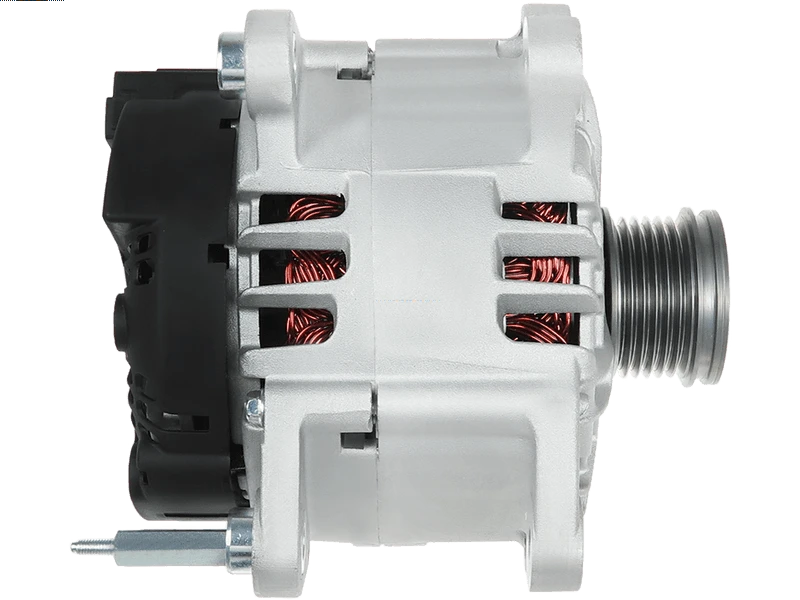

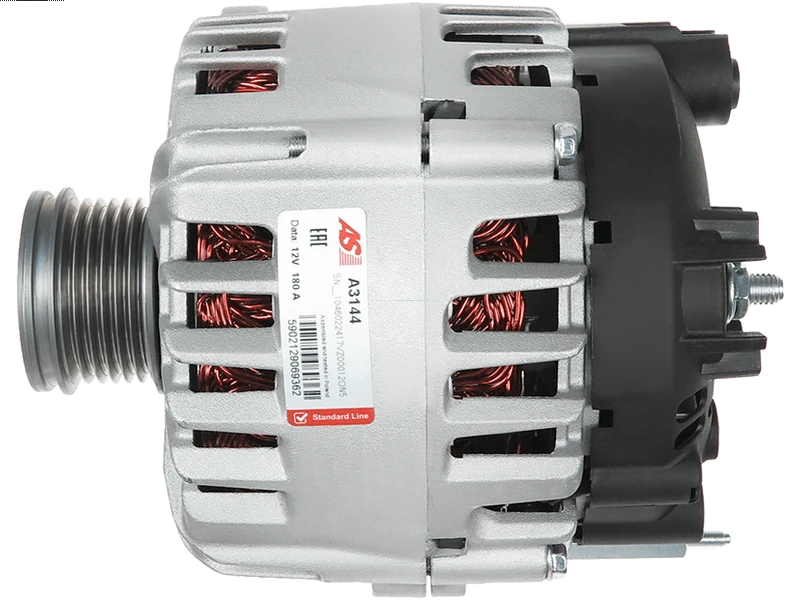

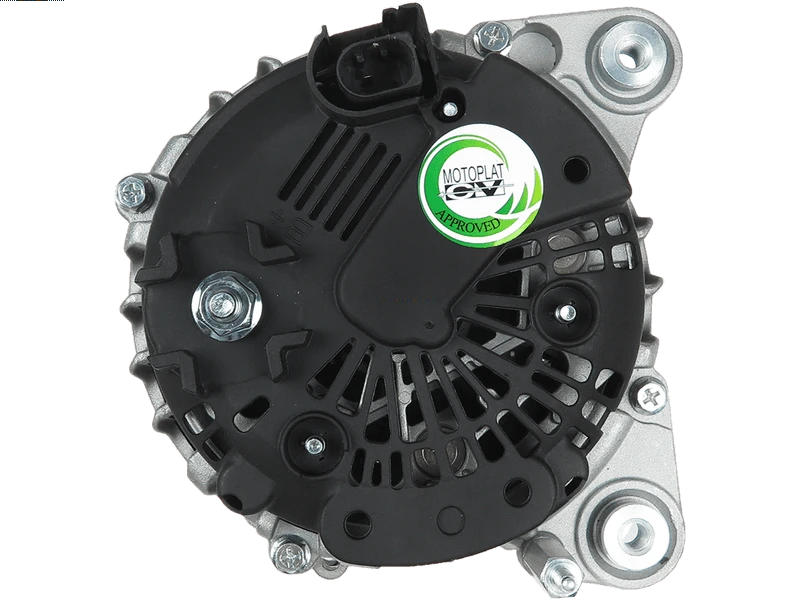

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 762.08 including GST
NZ$ 662.68 excluding GST
or four payments of $190.52
with
Learn More
each
A3144
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
FG18T101Associated Numbers
47-580
Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49.50 mm |
| Pulley to Mount Distance (A) | 30.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SKODA | Octavia 1.2 TSi | [CJZA] | 01.2013- |
| SKODA | Octavia 1.2 TSi | [CJZB] | 01.2013- |
| SKODA | Octavia 1.2 TSi | [CYVB] | 01.2015- |
| SKODA | Octavia 1.4 TSi | [CHPA] | 01.2013- |
| SKODA | Octavia 1.4 TSi | [CPWA] | 01.2013- |
| VW | Golf VII 1.2 TSi | [CJZA] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CJZB] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CYVA] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CYVB] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TGi | [CPWA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TGi | [CZBA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TSi | [CHP.] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TSi | [CPTA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TSi | [CPV.] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TSi | [CZ.A] | 01.2013-12.2013 |
| VW | Polo 1.4 TSi | [CPTA] | 01.2013-12.2014 |
Reference Information
| 0125811004 | BOSCH |
| 0125811026 | BOSCH |
| 0125811033 | BOSCH |
| 0125811073 | BOSCH |
| 0125811088 | BOSCH |
| 04E903015D | VW |
| 04E903015DX | VW |
| 04E903015E | VW |
| 04E903015EX | VW |
| 04E903015S | VW |
| 04E903015SX | VW |
| 04E903021P | VW |
| 04E903021PX | VW |
| 04E903021Q | VW |
| 04E903021QV | VW |
| 04E903021QX | VW |
| 04E903023D | VW |
| 04E903023L | VW |
| 04E903023LX | VW |
| 04E903023M | VW |
| 04E903023MV | VW |
| 04E903023MX | VW |
| 1986A01387 | BOSCH |
| 2015542.1 | SANDO |
| 20179245OE | REAL |
| 209151 | ERA |
| 2113931802 | DRI |
| 2614810C | VALEO |
| 28-6739 | ELSTOCK |
| 28-6739CT | AINDE |
| 305.910.180.004 | PSH |
| 4181 | CEVAM |
| 553977RIV | KUHNER |
| 89215629 | POWERMAX |
| AEK3629 | AUTOELECTRO |
| AL03226 | TMI |
| ALT00416 | ELECTROLOG |
| ALT10920 | WOODAUTO |
| ALTE538 | 3EFFE |
| ALTE863 | 3EFFE |
| ALV3835 | KRAUF |
| CAL15542GS | CASCO |
| DA2439 | DELCO |
| DRA1329 | DELCO |
| FG18T101 | VALEO |
| LRA03629 | LUCAS |
| LRA3629 | LUCAS |
| PRAE538 | 3EFFE |
| PRAE863 | 3EFFE |
| STX102169 | STARDAX |
| UD19407A | AS-PL |
Video/Publications
