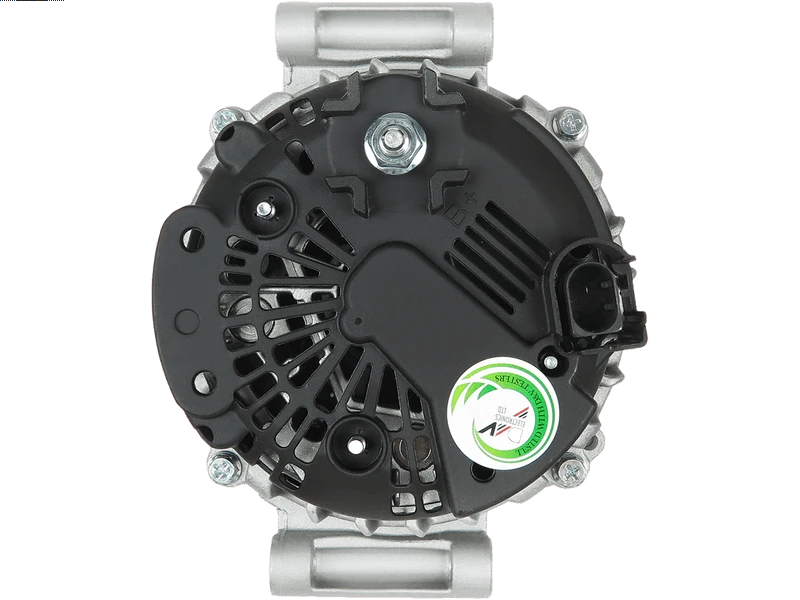

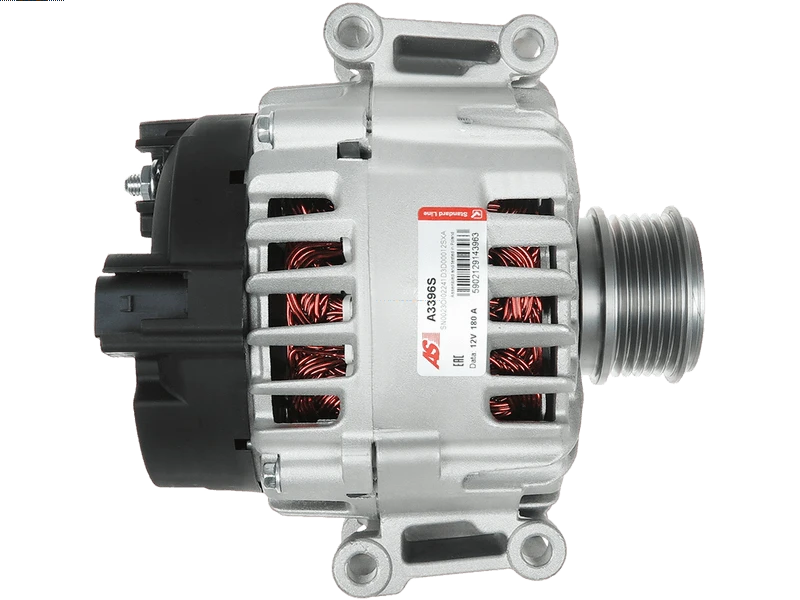

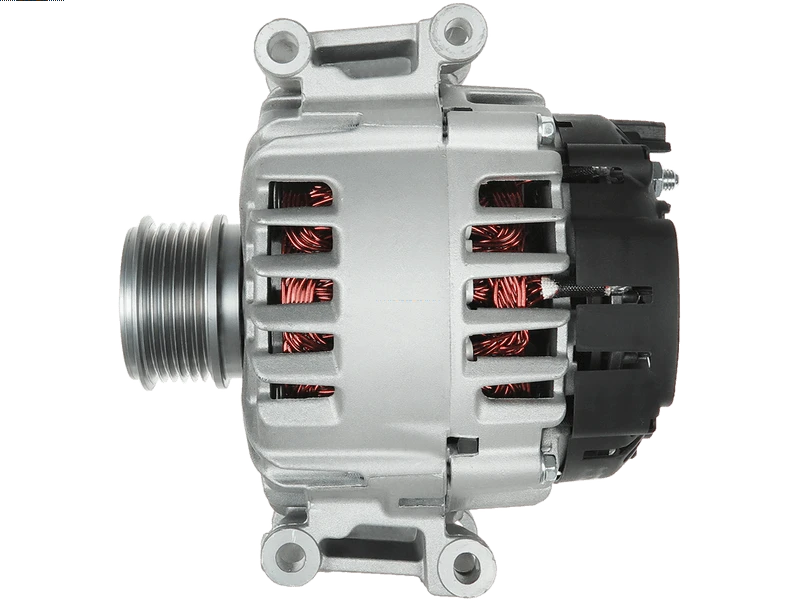

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 800.68 including GST
NZ$ 696.24 excluding GST
or four payments of $200.17
with
Learn More
each
AAM-C6023
A3396S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
Information
FG18T063Specifications
| Amp | 180 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 8 mm |
| Diameter (D.4) | 8 mm |
| Length (L.1) | 194 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 28.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 1.8 TFSi | [CABA] | 01.2008-12.2015 |
| AUDI | A4 1.8 TFSi | [CDHA] | 01.2008-12.2015 |
| AUDI | A4 1.8 TFSi | [CDHA] | 04.2008-12.2015 |
| AUDI | A4 1.8 TFSi | [CJEB] | 11.2011-12.2015 |
| AUDI | A4 1.8 TFSi Quattro | [CJEB] | 11.2011-12.2015 |
| AUDI | A4 2.0 TFSi | [CAEA] | 06.2008-12.2015 |
| AUDI | A4 2.0 TFSi | [CAEB] | 06.2008-05.2013 |
| AUDI | A4 2.0 TFSi | [CAED] | 05.2013-12.2015 |
| AUDI | A4 2.0 TFSi | [CDNB] | 06.2008-12.2015 |
| AUDI | A4 2.0 TFSi | [CDNC] | 06.2008-05.2013 |
| AUDI | A4 2.0 TFSi | [CFKA] | 06.2008-12.2015 |
| AUDI | A4 2.0 TFSi | [CNCD] | 05.2013-12.2015 |
| AUDI | A4 2.0 TFSi Allroad Quattro | [CDNC] | 04.2009-05.2016 |
| AUDI | A4 2.0 TFSi Allroad Quattro | [CNCD] | 05.2013-05.2016 |
| AUDI | A4 2.0 TFSi Allroad Quattro | [CPMA] | 04.2009-05.2016 |
| AUDI | A4 2.0 TFSi Allroad Quattro | [CPMB] | 05.2013-05.2016 |
| AUDI | A4 2.0 TFSi Flexible fuel | [CFKA] | 11.2009-12.2015 |
| AUDI | A4 2.0 TFSi Flexible fuel Quattro | [CFKA] | 11.2009-12.2015 |
| AUDI | A4 2.0 TFSi Quattro | [CAEB] | 06.2008-12.2015 |
| AUDI | A4 2.0 TFSi Quattro | [CAED] | 05.2013-12.2015 |
| AUDI | A4 2.0 TFSi Quattro | [CDNC] | 06.2008-12.2015 |
| AUDI | A4 2.0 TFSi Quattro | [CFKA] | 11.2009-03.2012 |
| AUDI | A4 2.0 TFSi Quattro | [CNCD] | 05.2013-12.2015 |
| AUDI | A4 2.0 TFSi Quattro | [CPMA] | 06.2008-12.2015 |
| AUDI | A4 2.0 TFSi Quattro | [CPMB] | 05.2013-12.2015 |
| AUDI | A5 1.8 TFSi | [CJEB] | 08.2011-01.2017 |
| AUDI | A5 1.8 TFSi | [CJEB] | 09.2011-03.2016 |
| AUDI | A5 1.8 TFSi | [CJED] | 09.2014-01.2017 |
| AUDI | A5 1.8 TFSi | [CJEE] | 05.2015-01.2017 |
| AUDI | A5 2.0 TFSi | [CAEB] | 03.2009-06.2014 |
| AUDI | A5 2.0 TFSi | [CAED] | 05.2013-12.2014 |
| AUDI | A5 2.0 TFSi | [CDNC] | 03.2009-06.2014 |
| AUDI | A5 2.0 TFSi | [CNCD] | 05.2013-05.2016 |
| AUDI | A5 2.0 TFSi | [CNCE] | 08.2015-01.2017 |
| AUDI | A5 2.0 TFSi Quattro | [CAEB] | 06.2008-01.2017 |
| AUDI | A5 2.0 TFSi Quattro | [CAED] | 03.2012-01.2017 |
| AUDI | A5 2.0 TFSi Quattro | [CDNC] | 06.2008-01.2017 |
| AUDI | A5 2.0 TFSi Quattro | [CNCD] | 05.2013-05.2016 |
| AUDI | A5 2.0 TFSi Quattro | [CNCE] | 08.2015-01.2017 |
| AUDI | A5 2.0 TFSi Quattro | [CPMA] | 06.2008-01.2017 |
| AUDI | A5 2.0 TFSi Quattro | [CPMB] | 03.2012-01.2017 |
| AUDI | A6 2.0 TFSi | [CAEB] | 03.2011-05.2013 |
| AUDI | A6 2.0 TFSi | [CAED] | 05.2013-09.2018 |
| AUDI | A6 2.0 TFSi | [CDNB] | 05.2011-09.2018 |
| AUDI | A6 2.0 TFSi | [CDNB] | 06.2011-09.2018 |
| AUDI | Q5 2.0 TFSi Quattro | [CDNB] | 08.2009-05.2017 |
| AUDI | Q5 2.0 TFSi Quattro | [CNCB] | 08.2009-05.2017 |
| AUDI | Q5 2.0 TFSi Quattro | [CNCD] | 06.2012-05.2016 |
| AUDI | Q5 2.0 TFSi Quattro | [CNCE] | 08.2015-05.2017 |
| AUDI | Q5 2.0 TFSi Quattro | [CPMB] | 05.2013-05.2017 |
Alternatives >>>
AAM-C6023 +Plus Line PRO Version
Reference Information
| 06H903016T | VW |
| 06H903017D | VW |
| 06H903017DX | VW |
| 06H903017K | VW |
| 06H903017KX | VW |
| 06H903018M | VW |
| 06H903018M | PORSCHE |
| 06H903018MX | VW |
| 06H903018MX | PORSCHE |
| 0986CR6273 | BOSCH |
| 0986UR6273 | BOSCH |
| 0986VR6273 | BOSCH |
| 11706N | WAI / TRANSPO |
| 2015541.1 | SANDO |
| 205.542.180 | PSH |
| 205.542.180.500 | PSH |
| 209192 | ERA |
| 2609551A | VALEO |
| 2609551C | VALEO |
| 2614129C | VALEO |
| 2614129D | VALEO |
| 28-6504 | ELSTOCK |
| 4150 | CEVAM |
| 439710 | VALEO |
| 439798 | VALEO |
| 440301 | VALEO |
| 440438 | VALEO |
| 55151161 | MEAT & DORIA |
| 553456RIV | KUHNER |
| 57428 | EAI |
| 6H903017D | VW |
| 6H903017DX | VW |
| 6H903017K | PORSCHE |
| 6H903017K | VW |
| 6H903017KX | PORSCHE |
| 6H903017KX | VW |
| 6H903018M | PORSCHE |
| 6H903018M | VW |
| 6H903018MX | PORSCHE |
| 6H903018MX | VW |
| 89214368 | POWERMAX |
| A12VA0758AS | SIDAT |
| AEK3392 | AUTOELECTRO |
| AL9452X | BOSCH |
| ALT00410 | ELECTROLOG |
| ALT00659 | ELECTROLOG |
| ALTE481 | 3EFFE |
| ALTE794 | 3EFFE |
| ALV8063 | KRAUF |
| CAL15541 | CASCO |
| CAL15541AS | CASCO |
| CAL15541ES | CASCO |
| CAL15541GS | CASCO |
| CAL15541OS | CASCO |
| CAL15541RS | CASCO |
| DA2066 | DELCO |
| DRA0956 | DELCO |
| FG18T063 | VALEO |
| FG20S015 | VALEO |
| FGN20S015 | VALEO |
| L06H903017K | VW |
| LR1180-853 | HITACHI |
| LRA03392 | LUCAS |
| LRA3392 | LUCAS |
| PAC903018 | PORSCHE |
| PAC-903-018 | PORSCHE |
| PRAE481 | 3EFFE |
| PRAE794 | 3EFFE |
| STX102167 | STARDAX |
| UD19412A | AS-PL |
| VAL439710 | WOODAUTO |
