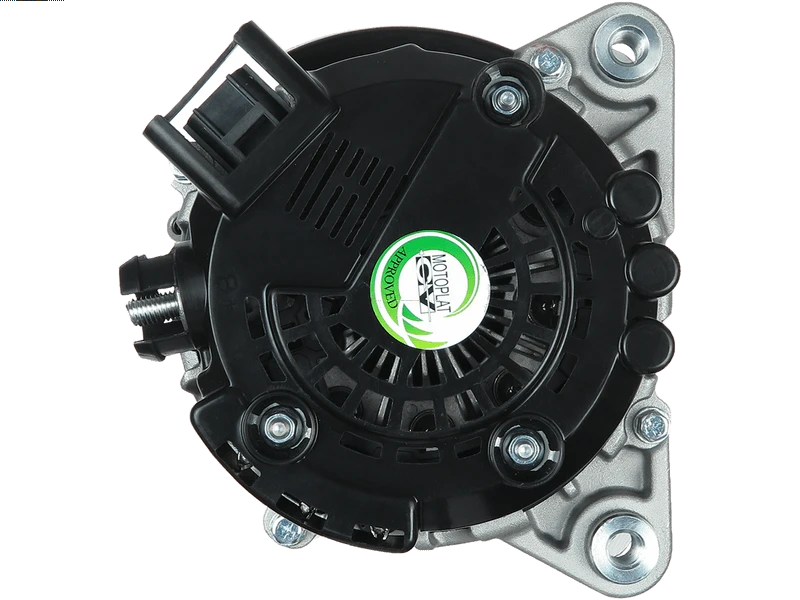

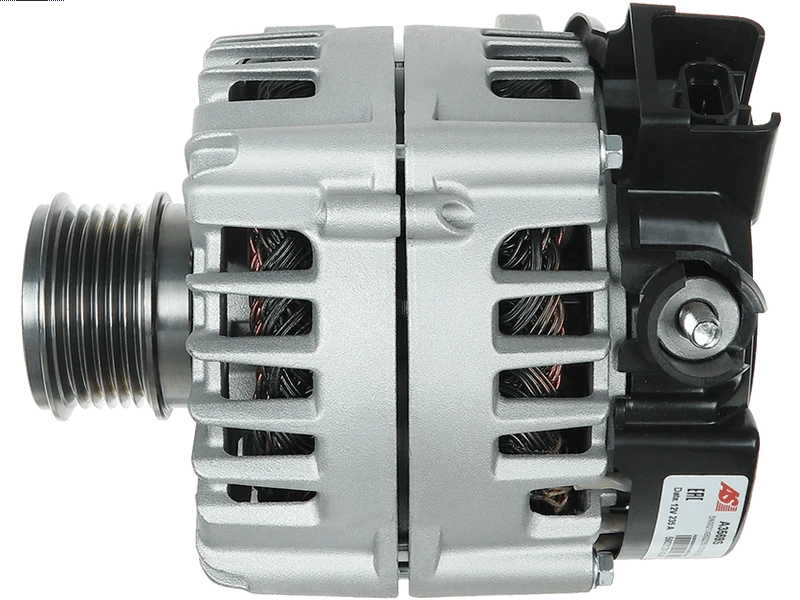

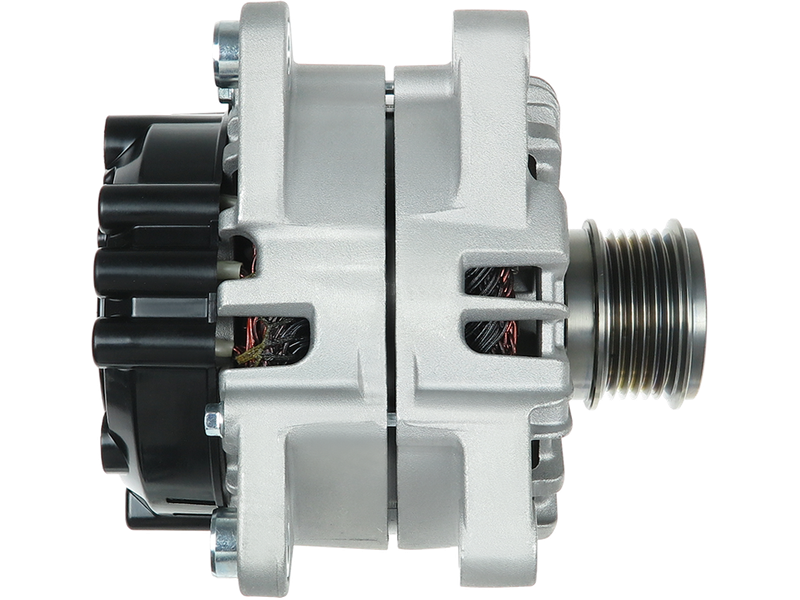

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 798.57 including GST
NZ$ 694.41 excluding GST
or four payments of $199.64
with
Learn More
each
AGV-C6003
A3569S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
CG25S032Specifications
| Amp | 235 A |
| Bottom Mounting Foot Width (B) | 21.50 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 180 mm |
| Mount Inside Length or Pad Mount C-C (C) | 47 mm |
| OEM Product | No |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 48.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Edge 2.0 TDCi AWD | [T8CC] | 08.2015-07.2018 |
| FORD | Edge 2.0 TDCi AWD | [T8CM] | 08.2015-07.2018 |
| FORD | Edge 2.0 TDCi Bi-Turbo AWD | [T9CE] | 08.2015-07.2018 |
| FORD | Edge 2.0 TDCi Bi-Turbo AWD | [T9CF] | 08.2015-07.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CI] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CJ] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CK] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T7CL] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CG] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CH] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CI] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [T8CJ] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [UFCA] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi | [UFCB] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CI] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CJ] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T7CL] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CG] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CH] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CI] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi 4x4 | [T8CJ] | 05.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CB] | 01.2015-06.2018 |
| FORD | Galaxy 2.0 TDCi Bi-Turbo | [T9CC] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CK] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T7CL] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CG] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CH] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [T8CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [UFCA] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi | [UFCB] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CK] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T7CL] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CG] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CH] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CI] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi 4x4 | [T8CJ] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi Bi-Turbo | [T9CB] | 01.2015-06.2018 |
| FORD | S-Max 2.0 TDCi Bi-Turbo | [T9CC] | 01.2015-06.2018 |
Reference Information
| 2015A19.1 | SANDO |
| 2017991AOE | REAL |
| 209314 | ERA |
| 2411331 | FORD |
| 2415106 | FORD |
| 28-7910 | ELSTOCK |
| 32439972 | HERTH+BUSS |
| 40134 | CEVAM |
| 440728 | VALEO |
| 5341792 | FORD |
| 554681RIV | KUHNER |
| 595.917.230.000 | PSH |
| 595.917.230.004 | PSH |
| 595.917.230.008 | PSH |
| 595.917.230.346 | PSH |
| 595.917.230.460 | PSH |
| 595.917.230.500 | PSH |
| 595.917.230.505 | PSH |
| 617808 | VALEO |
| 726563 | VALEO |
| A134.115 | PSH |
| A145.917 | PSH |
| A3569S | AS-PL |
| AEG1348 | AUTOELECTRO |
| ALT00981 | ELECTROLOG |
| ALV3547 | KRAUF |
| CAL15A19GS | CASCO |
| CG25S032 | VALEO |
| CG25S055 | VALEO |
| CGB-87910 | AINDE |
| DA3016 | VALEO |
| DRA1906 | VALEO |
| E1GT-10300-BB | FORD |
| E1GT10300BC | FORD |
| E1GT-10300-BC | FORD |
| LRA04301 | LUCAS |
| LRA4301 | LUCAS |
| RME1GT-10300-BC | FORD |
| UD18936A | AS-PL |
