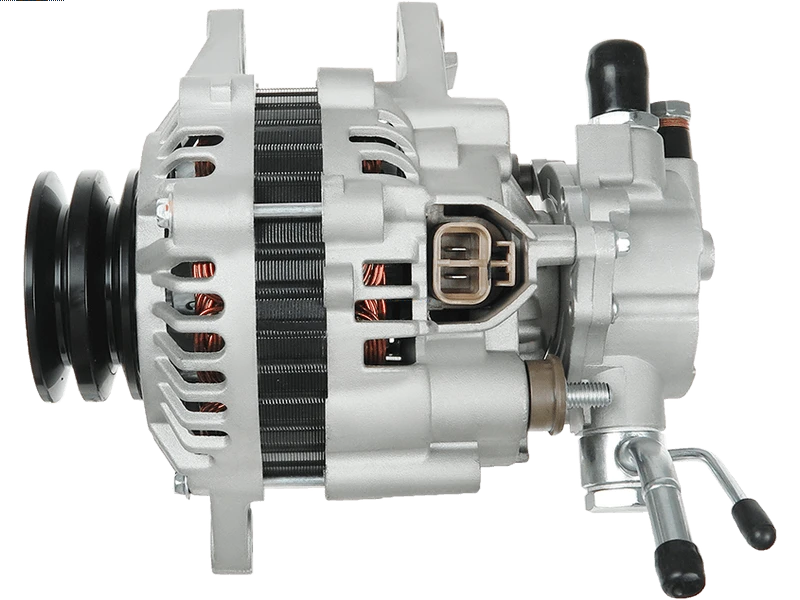

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 404.65 including GST
NZ$ 351.87 excluding GST
or four payments of $101.16
with
Learn More
each
A5417S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
A2TN1199ZTSpecifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 225 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54.50 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 9.50 mm |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley Outside Diameter (O.D.2) | 77.50 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | L200 2.5 TD | [4D56-T] | 08.2001-11.2005 |
| MITSUBISHI | L200 2.5 TD 4WD | [4D56-T] | 08.2001-12.2007 |
| MITSUBISHI | L200 2.5 TD 4WD | [4D56-T] | 09.2001-12.2007 |
| MITSUBISHI | L200 2.5 TD 4WD | [4D56-TD] | 06.1996-12.2007 |
| MITSUBISHI | Pajero Sport 2.5 TD | [4D56-T] | 11.1998- |
Reference Information
| 063731271010 | MAGNETI MARELLI |
| 155.604.075.130 | PSH |
| 155.604.075.360 | PSH |
| 155.604.075.780 | PSH |
| 20137101BN | REAL |
| 20137101OE | REAL |
| 2035101.0 | SANDO |
| 2035101.1 | SANDO |
| 210018 | ERA |
| 28-4671 | ELSTOCK |
| 401271RI | KUHNER |
| 401271RIL | KUHNER |
| 401271RIV | KUHNER |
| 446320 | LOGISTIK |
| 4G0111 | RIDEX |
| 4G0111R | RIDEX |
| 5535058 | MEAT & DORIA |
| 56718 | EAI |
| 89212236 | POWERMAX |
| 8EL011711-091 | HELLA |
| 9372 | CEVAM |
| 944390422910 | MAGNETI MARELLI |
| A002T1199AT | MITSUBISHI |
| A002T82899 | MITSUBISHI |
| A002T82899A | MITSUBISHI |
| A002T82899AM | MITSUBISHI |
| A002TN1199 | MITSUBISHI |
| A002TN1199A | MITSUBISHI |
| A002TN1199AM | MITSUBISHI |
| A002TN1199AT | MITSUBISHI |
| A002TN1199ZT | MITSUBISHI |
| A003T15099 | MITSUBISHI |
| A003T82899 | MITSUBISHI |
| A003TN0299 | MITSUBISHI |
| A003TN0399 | MITSUBISHI |
| A003TN0499 | MITSUBISHI |
| A003TN0999 | MITSUBISHI |
| A12MH0113 | SIDAT |
| A12MH0113A2 | SIDAT |
| A130.446 | PSH |
| A147.508 | PSH |
| A2T1199AT | MITSUBISHI |
| A2T82899 | MITSUBISHI |
| A2T82899A | MITSUBISHI |
| A2T82899AM | MITSUBISHI |
| A2TN1199 | MITSUBISHI |
| A2TN1199A | MITSUBISHI |
| A2TN1199AM | MITSUBISHI |
| A2TN1199AT | MITSUBISHI |
| A2TN1199ZT | MITSUBISHI |
| A3T15099 | MITSUBISHI |
| A3T82899 | MITSUBISHI |
| A3TN0299 | MITSUBISHI |
| A3TN0399 | MITSUBISHI |
| A3TN0499 | MITSUBISHI |
| A3TN0999 | MITSUBISHI |
| A5417S | AS-PL |
| AG0400 | GHIBAUDI |
| ALT5427 | ELECTROLOG |
| CAL35101AS | CASCO |
| CAL35101GS | CASCO |
| CGB-84671 | AINDE |
| DA5336 | DELCO |
| DRA4226 | DELCO |
| LRA02205 | LUCAS |
| LRA2205 | LUCAS |
| MD306649 | MITSUBISHI |
| MD306834 | MITSUBISHI |
| MD313940 | MITSUBISHI |
| MD313942 | MITSUBISHI |
| MD315432 | MITSUBISHI |
| MD327514 | MITSUBISHI |
| MD332547 | MITSUBISHI |
| MD366050 | MITSUBISHI |
| MD366051 | MITSUBISHI |
| MQA1271 | MAGNETI MARELLI |
| STX100103 | STARDAX |
| STX100103R | STARDAX |
| STX100173 | STARDAX |
| STX100173R | STARDAX |
| STX100786 | STARDAX |
| STX101598 | STARDAX |
| UD18986A | AS-PL |
