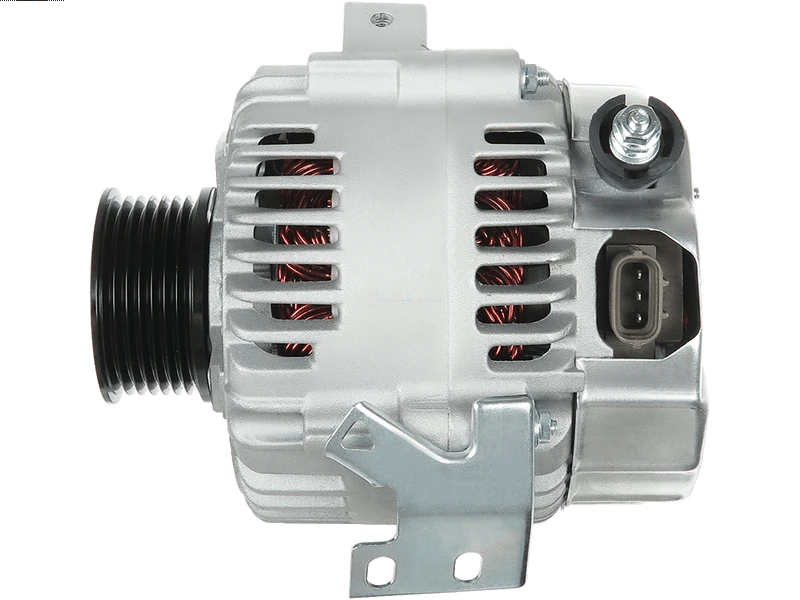

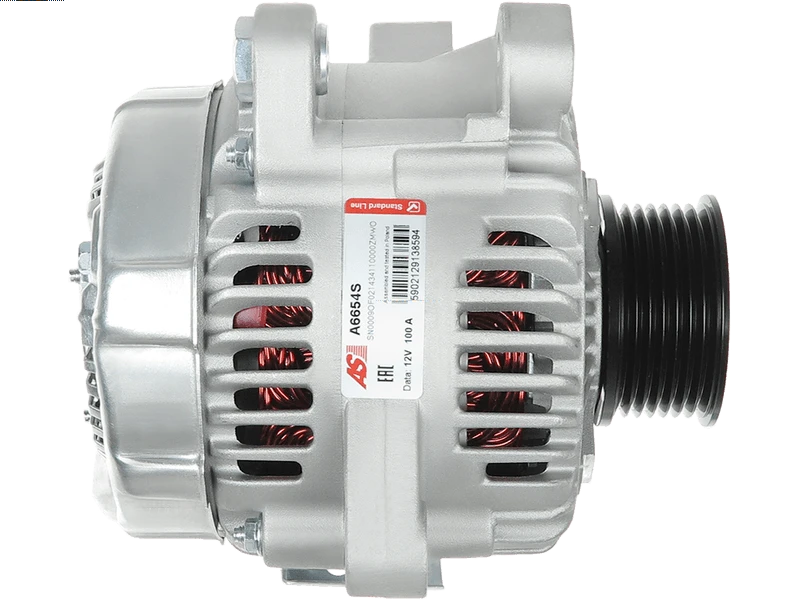

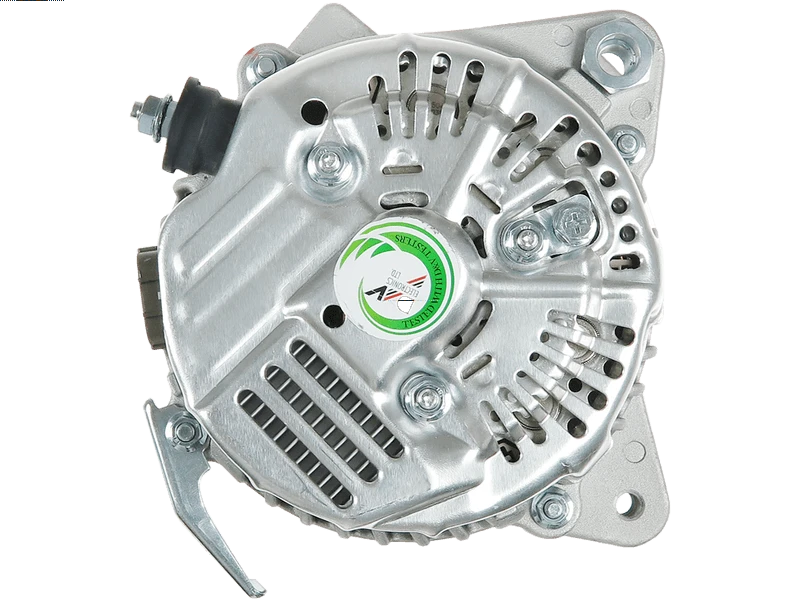

A6654S - Brand new AS-PL Alternator

Associated Numbers

14-699 AC DELCO TOOLS 334-1482 ARROWHEAD AND0274 BOSCH AL3304X AL3351X DENSO 102211-2120 102211-2380 102211-2480 210-0459 210-0462 J&N ELECTRICAL PRODUCTS 400-52105 LESTER 13957 13958 LUCAS ELECTRIC LRA02210 TOYOTA 27060-0H010 27060-0H011 27060-28110 27060-28170 658583 dxa558 DXA591 anj206 Bosch Newman AL365N Reman AL365X Service Europe 0-986-UN0-070 0-986-UR0-070 101211-741 101211-7410 102211-078 102211-0780 HC CARGO 113902 IAT A14004 Industry 14004 Lester PIC 290-5068A Toyota 27060-28060 27060-28090 Voltux V2-14004 030501 Da Silva 063377433010 Magneti Marelli 0986082760 Exchange 0986UR0379 0986UR6018 1012117400 Denso 1012117410 1022110770 1022110780 1022110780SEL +line Cargo 12060827 EuroTec 13959 13959N WAI 13959R 195557100 PSH 2040156 Sando 2351861002 DRI 2706028060 2706028080 2706028090 2706028100 2810028100 2810028110 285613 Elstock 2905068 401797RI DAS 401821952 Euro Car Parts 40638 CEVAM 443820 Alanko 446085 Logistik 600000165110 6270SP Spidan 63377433 89213800 Power Max 8EL738211161 Hella 90295522 Wilson 9090768 Frisians 9090768F 9662219078 PSA A131102 Short code A155165 A156426 A6654 AS-PL A6654S A8964 Dixie AA5387 Auto Charge ABE1404 Everkraft AEB1797 Electro AL3329X (USA) AL3353X ALT266 Rolling Components ALT30440 Wood ALT5132 Unipoint AND1220 Quasar ATA604 ATK CAL40156 Airframe CGB85613 Ainde DAN1434 DMS8046 DriveTec DRA0459 Remy DS030501 F042208022 F042A02167 HJA1797IR J5112113 Nipparts J5112130 JA1797IR L84600 ATL LRA03000 Lucas LRA3000 RE73693N The New Line SA685 Sovereign SP6270 WOOALT30440 030357 063377434010 063731792010 0986082770 0986UR6020 1012112390 1022112120 1022112150 1022112250 1022112250SEL 1022112380 1022112390 1022112480 1022119470 1042109470 10443116 114186 12060820 13957N 13957R 13958N 195557090 195557090SEL 2040354 209384 Messmer 235186802 235186902 270600H010 2706022110 2706028110 270602811084 2706028120 2706028170 2706028170RB RNL 2706028180 284679 287507 2905069 2905069A 2905069B 401792RI 443768 446007 554637RI 57185 EAI 6260SP 63377434 63731792 89213381 8EL738211751 90295495 90295576 9324 9662219212 A131418 A148273 A159598 A6102 A8963 A8967 A8968 AA6248 ADE1543 ADE1562 AEK2210 ALT30349 ALT30430 ALT6092sa Electrolog ALTH200 CAL40354 CGB84679 DAN951 DENDAN951 DRA1667 DRA4274 F042A0H200 HJA1792IR IR7034 Protech JA1792IR L84590 LRA03897 LRA2210 MAN7434 MQA1792 RNL1022112120 WOOALT30349 WOOALT30430

Specifications

Amp	100 A
Bottom Mounting Foot Width (B)	18 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	11 mm
Diameter (D.3)	M10x1.25 mm
Length (L.1)	175 mm
Mount Inside Length or Pad Mount C-C (C)	42.50 mm
OEM Product	No
Plug Code	PL_3314
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	7 qty
Pulley Outside Diameter (O.D.1)	60 mm
Pulley to Mount Distance (A)	36 mm
Pulley Type	Solid
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
TOYOTA	Avensis 2.0	[1AZ-FSE]	10.2000-02.2003
TOYOTA	Avensis 2.0 VVT-i	[1AZ-FSE]	10.2000-02.2003
TOYOTA	RAV4 2.0	[1AZ-FE]	05.2000-11.2005
TOYOTA	RAV4 2.0	[1AZ-FSE]	05.2000-11.2005

Reference Information

0986082760	BOSCH
101211-7400	DENSO
101211-7410	DENSO
102211-0770	DENSO
102211-0780	DENSO
12060827	EUROTEC
13959	DIXIE
13959N	WAI / TRANSPO
13959R	WAI / TRANSPO
195.557.100.050	PSH
195.557.100.550	PSH
195.557.100.785	PSH
20132651BN	REAL
20132651OE	REAL
2040156.0	SANDO
2040156.1	SANDO
27060-28060	TOYOTA
27060-28080	TOYOTA
27060-28090	TOYOTA
27060-28100	TOYOTA
2810028100	TOYOTA
2810028110	TOYOTA
28-5613	ELSTOCK
401797RI	KUHNER
40638	CEVAM
63377433	MAGNETI MARELLI
89213800	POWERMAX
8EL738-211-161	HELLA
9090768	FRIESEN
A12DE0720A2	SIDAT
A131.102	PSH
A6654S	AS-PL
A-8964	DIXIE
ALN1797	KRAUF
ALT421560	SIOM
ALT421560A	SIOM
ALT6357	ELECTROLOG
ALTS285	3EFFE
CAL40156AS	CASCO
CAL40156GS	CASCO
CGB-10459R	AINDE
CGB-85613	AINDE
DA1569	DELCO
DAN1434	DENSO
DENDAN1434	WOODAUTO
DRA0459	DELCO
JA1797IR	HC PARTS
LRA03000	LUCAS
LRA3000	LUCAS
PRAS285	3EFFE
STX100669	STARDAX
UD90088A	AS-PL

Video/Publications

A6654S
