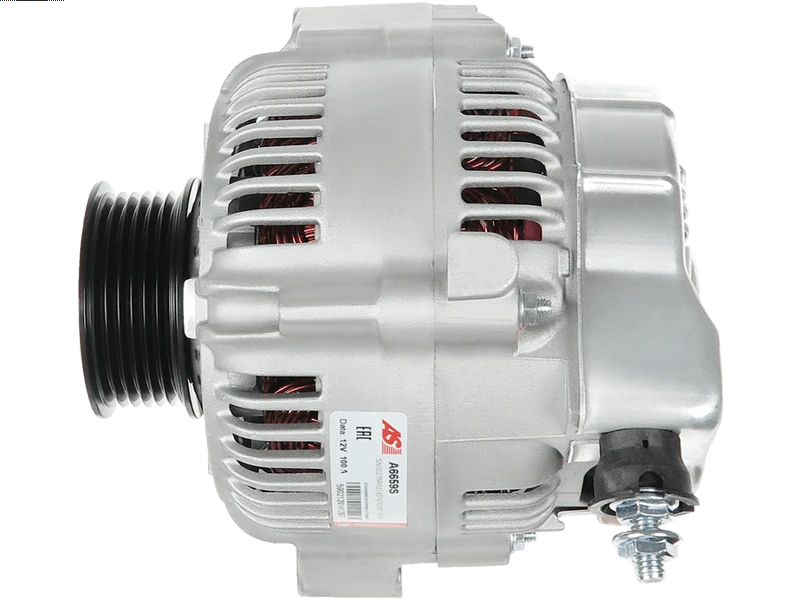

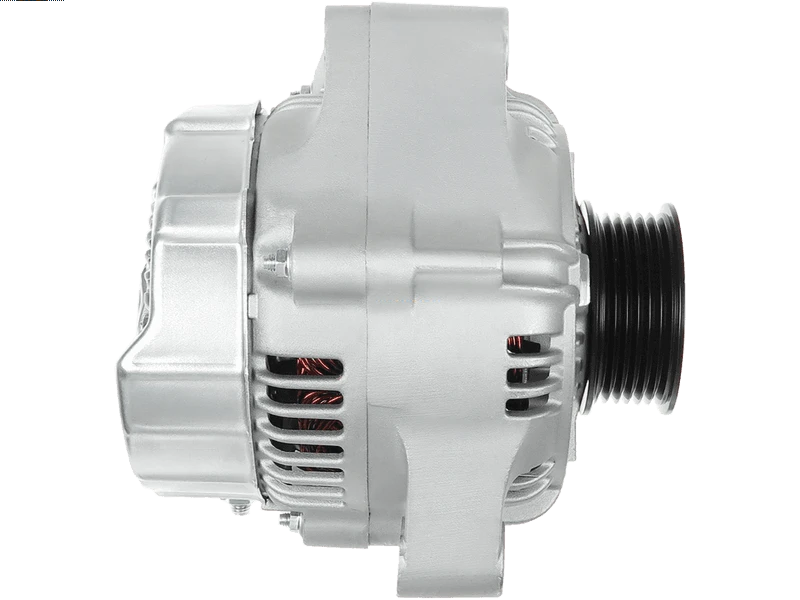

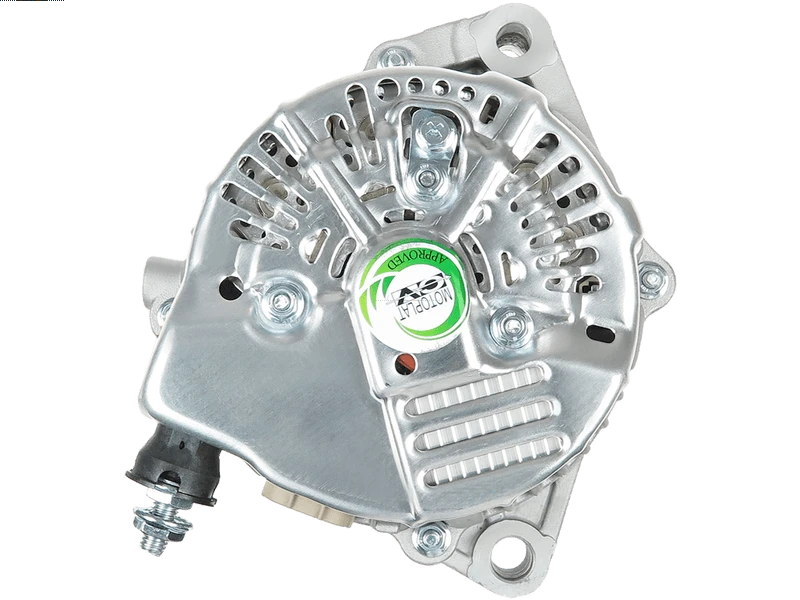

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 431.31 including GST
NZ$ 375.05 excluding GST
or four payments of $107.83
with
Learn More
each
A6711S - Similar
A6659S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
101211-7020Associated Numbers
0986CR0996 Bosch ruil 0986UR0996 1012117020 Denso show 1012117020SEL +line 1012117120 12061119 EuroTec 13547 Lester 195558100 PSH 2353441002 DRI 2706046120 Toyota 286688 Elstock 290381 PIC 57582 EAI 90295218 Wilson 9062103F Friesen 933513 EDR 9761211702 AL3266X (USA) ALT6201 Unipoint DRA3513 Remy LRA03578 Lucas TNA063 TWA REFERENCES AC DELCO TOOLS 334-1220 ARROWHEAD AND0117 BOSCH 10464197 DENSO 101211-7020 101211-7120 210-0291 210-0292 9761211-702 J N ELECTRICAL PRODUCTS 400-52295 LESTER LUCAS ELECTRIC TOYOTA 27060-46120 27060-46120-84 27060-46121 dxa4023 anj012 65-8589 ANJ012 12v 100amps ALTERNATOR 1 UNIT Alternator 2706046121 A6659S - Similar A6659S-Similar 2706046170 2706046180 1012117260 1012119710 101211-9710 13748 27060-46180 AL3267X Delco 10464200 334-1300 101211-9711 210-0290 9661219-971 Picture ID 290-373 101211-7790 2706046260Specifications
Some applications may need to reuse the original pulley
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 56.50 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 171 mm |
| OEM Product | No |
| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62.50 mm |
| Pulley to Mount Distance (A) | 88.50 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A5 3.0 TDi Quattro | [CDUC] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro | [CKVB] | 10.2011-01.2017 |
| AUDI | A5 3.0 TDi Quattro | [CKVC] | 10.2011-01.2017 |
| TOYOTA | Avensis 2.0 D-4D | [1CD-FTV] | 01.1999-12.2003 |
| TOYOTA | Corolla 2.0 D-4D | [1CD-FTV] | 01.2002-12.2006 |
| TOYOTA | Previa 2.0 D-4D | [1CD-FTV] | 01.2001-12.2006 |
| TOYOTA | RAV4 2.0 D 4WD | [1CD-FTV] | 01.2001-12.2005 |
| TOYOTA | Supra 3.0 i Bi-Turbo | [2JZ-GTE] | 05.1993-07.2002 |
Reference Information
| 101211-7020 | DENSO |
| 101211-7120 | DENSO |
| 101211-7340 | DENSO |
| 10464197 | DELCO |
| 13547 | DIXIE |
| 13547N | WAI / TRANSPO |
| 13547R | WAI / TRANSPO |
| 195.558.100.050 | PSH |
| 20132841BN | REAL |
| 20132841OE | REAL |
| 2040148.0 | SANDO |
| 2040148.1 | SANDO |
| 209383 | ERA |
| 27060-43220 | TOYOTA |
| 27060-46111 | TOYOTA |
| 27060-46120 | TOYOTA |
| 270604612084 | TOYOTA |
| 27060-46121 | TOYOTA |
| 2706046270 | LEXUS |
| 27060-46270 | TOYOTA |
| 270604-6280 | TOYOTA |
| 2706046300 | LEXUS |
| 27060-46300 | TOYOTA |
| 28-3813 | ELSTOCK |
| 40545 | CEVAM |
| 447165 | LOGISTIK |
| 553337RID | KUHNER |
| 57582 | EAI |
| 89215694 | POWERMAX |
| 90-29-5218 | WILSON |
| 944390621030 | MAGNETI MARELLI |
| 9761211702 | TOYOTA |
| A131.425 | PSH |
| A6659S | AS-PL |
| A-8435 | DIXIE |
| ALN3020 | KRAUF |
| ALT0C09 | 3EFFE |
| ALT30290 | WOODAUTO |
| ALT421480 | SIOM |
| ALT421480A | SIOM |
| ALT6309 | ELECTROLOG |
| ALTF599 | 3EFFE |
| CAL40148AS | CASCO |
| CAL40148GS | CASCO |
| DA4623 | DELCO |
| DRA3513 | DELCO |
| LRA03578 | LUCAS |
| LRA3578 | LUCAS |
| MRA62103 | MAGNETI MARELLI |
| PRAF599 | 3EFFE |
| STX101875 | STARDAX |
| STX110217 | STARDAX |
| STX110217R | STARDAX |
| STX110218 | STARDAX |
| STX110218R | STARDAX |
| UD21083A | AS-PL |
