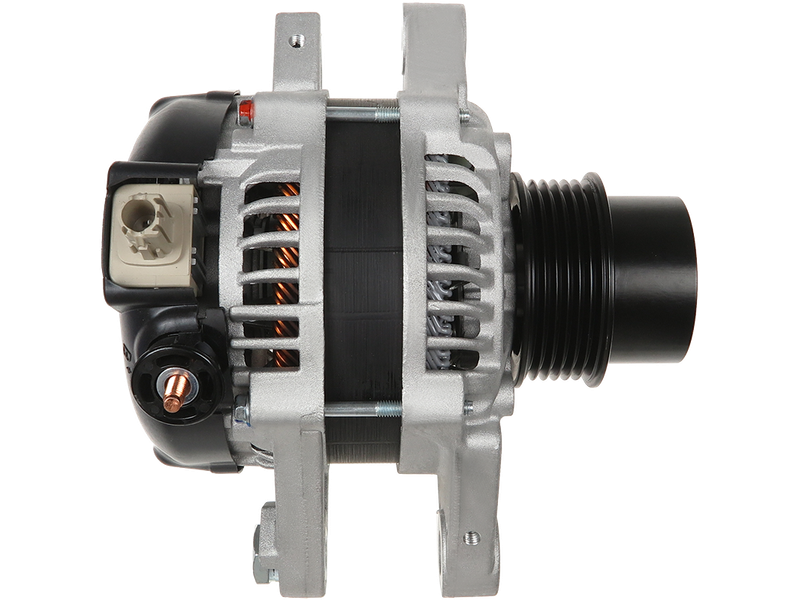

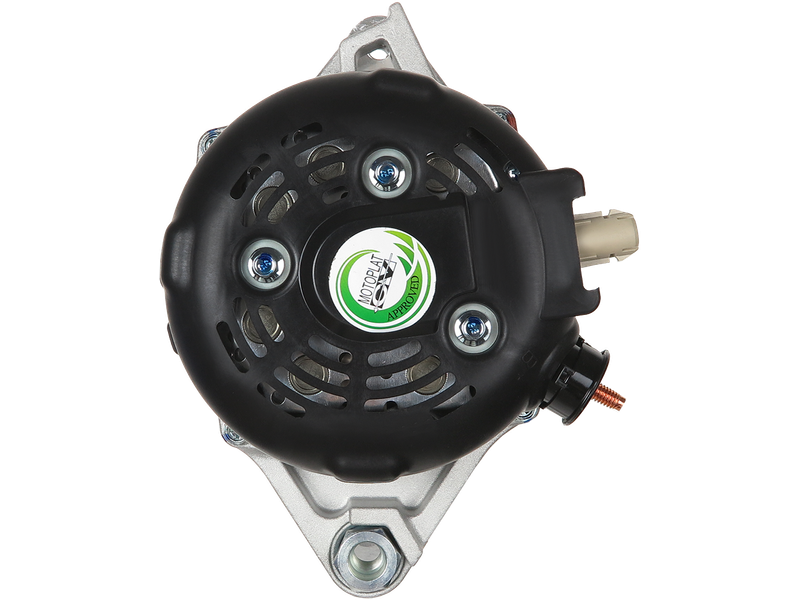

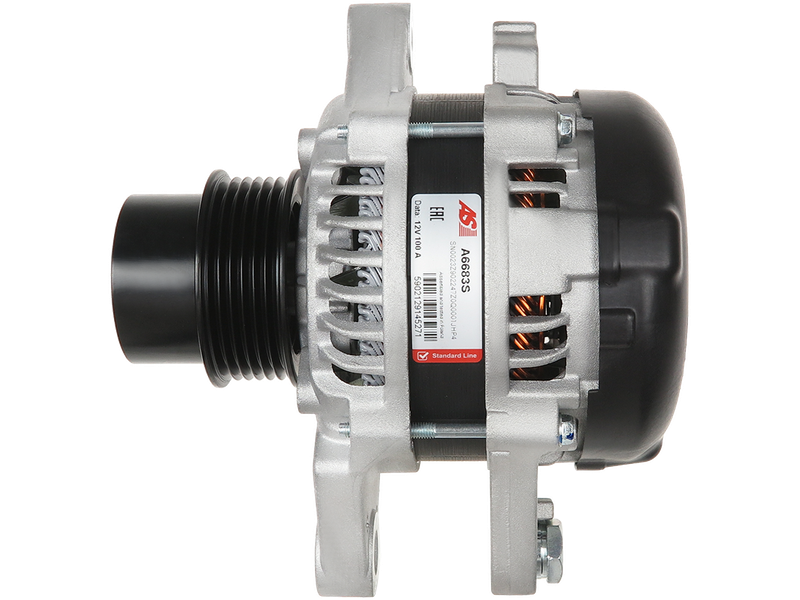

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 584.05 including GST
NZ$ 507.87 excluding GST
or four payments of $146.01
with
Learn More
each
A6683S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
104211-3010Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 18.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 180 mm |
| Mount Inside Length or Pad Mount C-C (C) | 37 mm |
| OEM Product | No |
| Plug Code | PL_1100 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 67 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Yaris 1.0 | [1KR-FE] | 06.2018- |
| TOYOTA | Yaris 1.0 | [1KR-FE] | 12.2010- |
Reference Information
| 104211-3010 | DENSO |
| 104211-3011 | DENSO |
| 104211-3012 | DENSO |
| 104211-3380 | DENSO |
| 195.591.100.260 | PSH |
| 20132434OE | REAL |
| 2040434.1 | SANDO |
| 210972 | ERA |
| 27060-0Q150 | TOYOTA |
| 27060-0Q151 | TOYOTA |
| 28-6648 | ELSTOCK |
| 40187 | CEVAM |
| 554424RID | KUHNER |
| 554424RIV | KUHNER |
| 600000165440 | MAGNETI MARELLI |
| 89215994 | POWERMAX |
| A148.382 | PSH |
| AEK3538 | AUTOELECTRO |
| ALN2919 | KRAUF |
| ALT424340 | SIOM |
| ALT6769 | ELECTROLOG |
| ALTE747 | 3EFFE |
| CAL40434GS | CASCO |
| DAN1315 | DENSO |
| DENDAN1315 | WOODAUTO |
| DRA1093 | DELCO |
| J5112172 | HERTH+BUSS |
| LRA03538 | LUCAS |
| LRA3538 | LUCAS |
| PRAE747 | 3EFFE |
| STX110222 | STARDAX |
| STX110222R | STARDAX |
| UD19552A | AS-PL |
| UD21177A | AS-PL |
