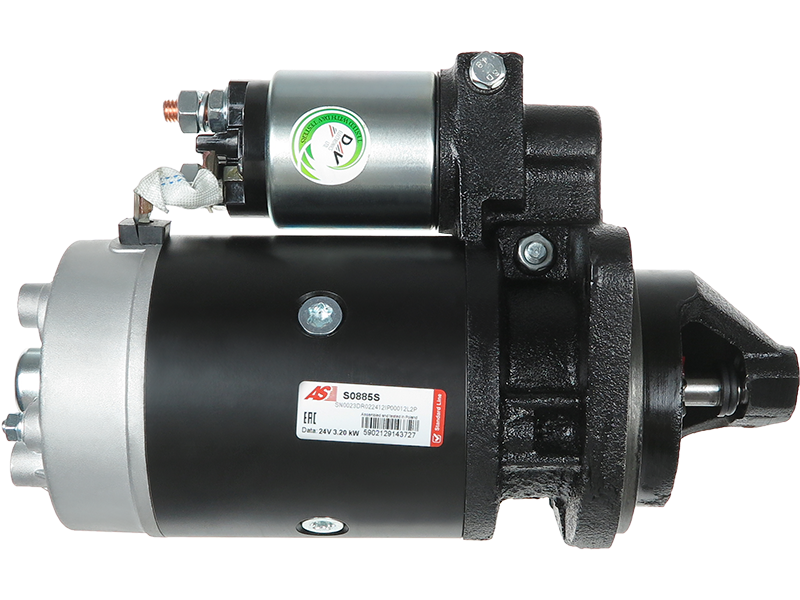

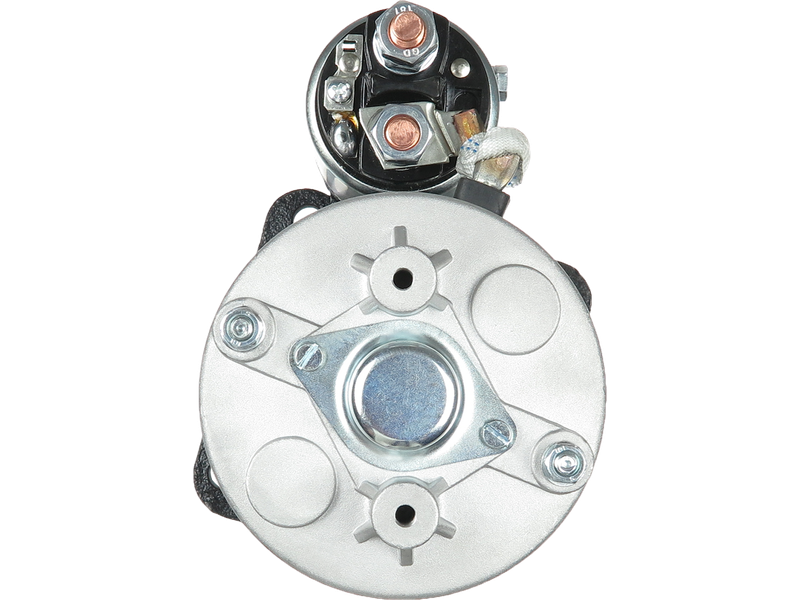

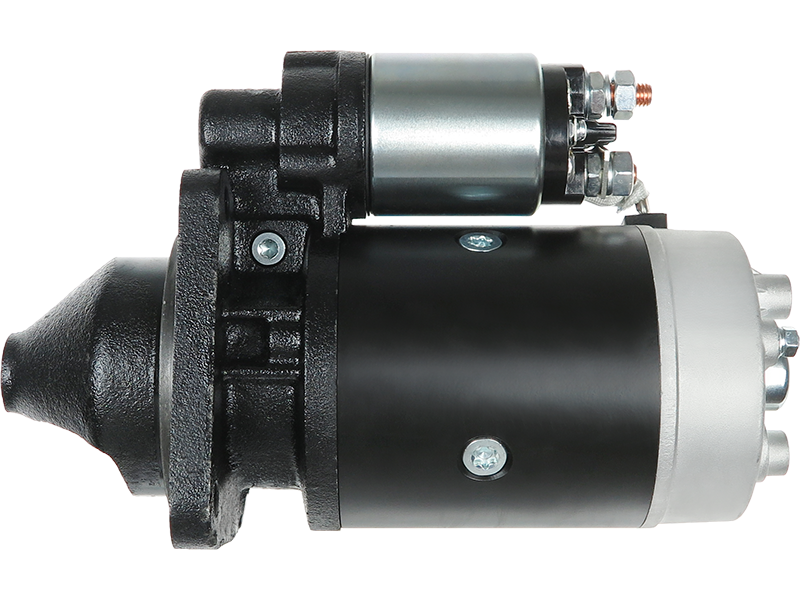

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 486.80 including GST
NZ$ 423.30 excluding GST
or four payments of $121.70
with
Learn More
each
S0885S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001363122Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 146 mm |
| Mount Hole Center - Center (O.3) | 103 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | 12 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 110 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | EuroCargo 60 E 10 3.9 | [8040.25B.4200] | 01.1991-09.2015 |
| IVECO | EuroCargo 60 E 12 3.9 | [8040.25X.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 60 E 14 3.9 | [8040.45.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 60 E 14 K 3.9 | [8040.45.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 60 E 14 P 3.9 | [8040.45.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 65 E 10 3.9 | [8040.25B.4200] | 01.1991-09.2015 |
| IVECO | EuroCargo 65 E 10 K 3.9 | [8040.25B.4200] | 01.1991-09.2015 |
| IVECO | EuroCargo 65 E 12 3.9 | [8040.25X.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 65 E 12 K 3.9 | [8040.25X.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 65 E 12 P 3.9 | [8040.25X.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 65 E 14 3.9 | [8040.45.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 65 E 14 K 3.9 | [8040.45.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 65 E 14 P 3.9 | [8040.45.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 75 E 12 3.9 | [8040.25X.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 75 E 12 P 3.9 | [8040.25X.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 75 E 14 3.9 | [8040.45.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 75 E 14 3.9 | [8040.45.4180] | 01.1991-09.2015 |
| IVECO | EuroCargo 75 E 14 P 3.9 | [8040.45.4000] | 01.1991-09.2015 |
| IVECO | EuroCargo 75 E 14 P 3.9 | [8040.45.4180] | 01.1991-09.2015 |
| IVECO | Zeta 50-8 3.7 | [8040.04.200] | 01.1983-12.1986 |
| IVECO | Zeta 50-8 H 3.7 | [8040.04.200] | 01.1983-12.1986 |
| IVECO | Zeta 50-8 V 3.7 | [8040.04.200] | 01.1983-12.1986 |
| IVECO | Zeta 50-9 3.9 | [8040.05.230] | 01.1987-03.1991 |
| IVECO | Zeta 50-9 H 3.9 | [8040.05.230] | 01.1987-03.1991 |
| IVECO | Zeta 50-9 V 3.9 | [8040.05.230] | 01.1987-03.1991 |
| IVECO | Zeta 60-11 3.9 | [8040.25.230R] | 01.1987-03.1991 |
| IVECO | Zeta 60-11 V 3.9 | [8040.25.230R] | 01.1987-03.1991 |
| IVECO | Zeta 65-12 3.9 | [8040.25.200] | 01.1987-03.1991 |
| IVECO | Zeta 65-12 H 3.9 | [8040.25.200] | 01.1987-03.1991 |
| IVECO | Zeta 65-12 V 3.9 | [8040.25.200] | 01.1987-03.1991 |
| IVECO | Zeta 65-9 3.9 | [8040.05.230] | 01.1987-03.1991 |
| IVECO | Zeta 79-12 3.9 | [8040.25.200] | 01.1987-03.1991 |
| IVECO | Zeta 79-12 3.9 | [8040.25.220] | 01.1987-03.1991 |
| IVECO | Zeta 79-12 H 3.9 | [8040.25.200] | 01.1987-03.1991 |
| IVECO | Zeta 79-12 H 3.9 | [8040.25.220] | 01.1987-03.1991 |
| IVECO | Zeta 79-12 V 3.9 | [8040.25.200] | 01.1987-03.1991 |
| IVECO | Zeta 79-12 V 3.9 | [8040.25.220] | 01.1987-03.1991 |
Reference Information
| 0001363122 | BOSCH |
| 20401057BN | REAL |
| 254826 | KUHNER |
| 4781237 | IVECO |
| 501.007.093.010 | PSH |
| 6010750.0 | SANDO |
| BOS0001363122 | WOODAUTO |
| CST10750AS | CASCO |
| MAV127500 | SIOM |
| MAV127500A | SIOM |
| PRSS250 | 3EFFE |
| PRSS250B | 3EFFE |
| S132.886 | PSH |
| STB3612 | KRAUF |
| STR1622 | ELECTROLOG |
| STRS250 | 3EFFE |
| STRS250B | 3EFFE |
| UD21122S | AS-PL |
