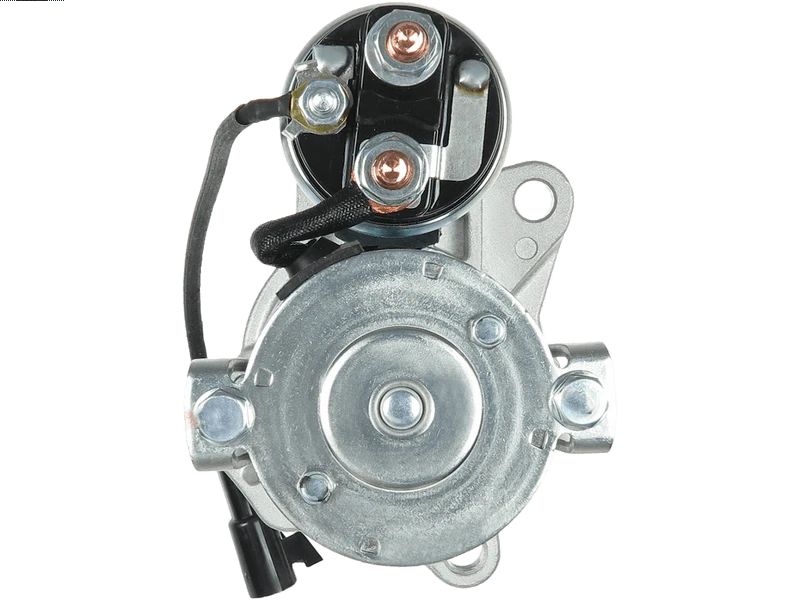

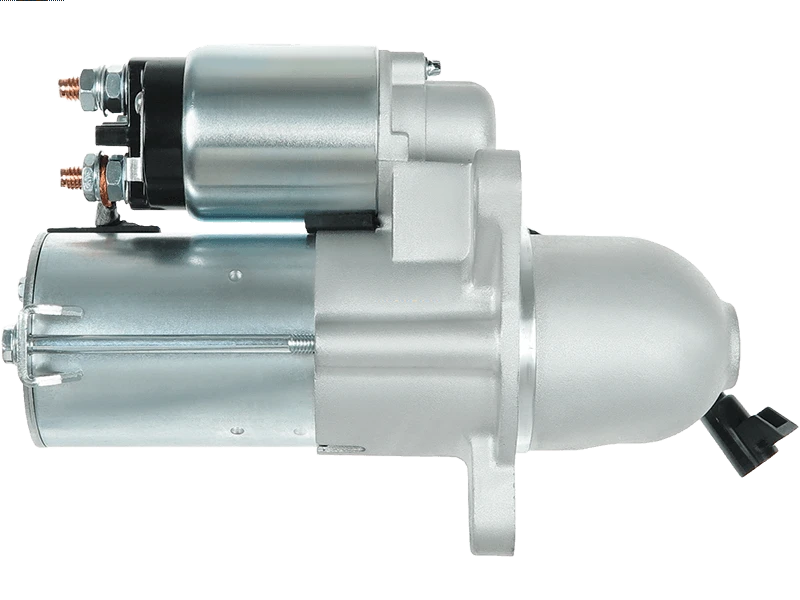

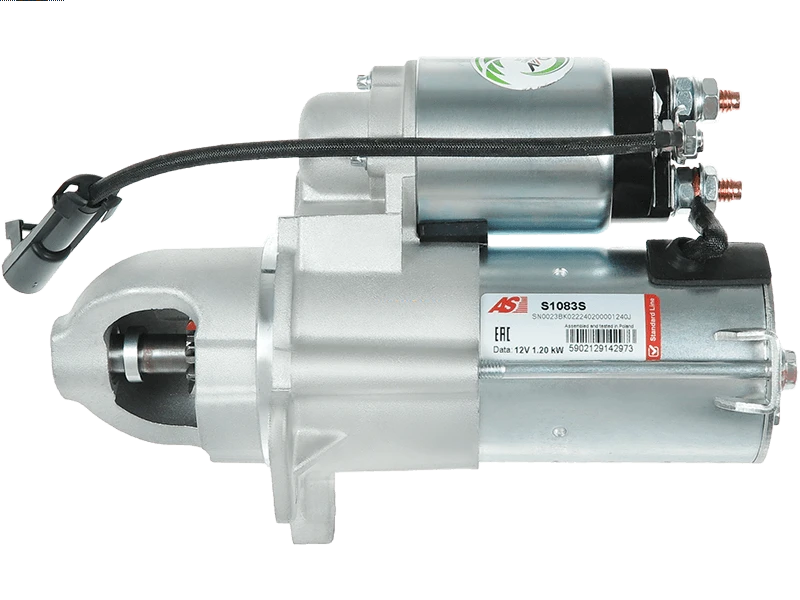

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 225.95 including GST
NZ$ 196.48 excluding GST
or four payments of $56.49
with
Learn More
each
S1083S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
8000222Associated Numbers
70-6286 snd046 snd046gq DXS592
11090329 EuroTec
230506102 PSH
255153 Elstock
328085102 DRI
8000222 Remy
96627036 Opel
96673023 GM
DRS0903 Remy
LRS03991 Lucas
57-105 57105
Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 211 mm |
| Mount Hole Center - Center (O.1) | 98 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 68.50 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Captiva 3.2 4WD | [LU1] | 06.2006- |
| OPEL | Antara 3.2 V6 | [Z32SEE] | 07.2006-12.2011 |
Reference Information
| 11090329 | EUROTEC |
| 1202516 | OPEL |
| 20460511OE | REAL |
| 230.506.102.030 | PSH |
| 230.506.102.390 | PSH |
| 25-5153 | ELSTOCK |
| 255546D | KUHNER |
| 4805519 | OPEL |
| 6046115.1 | SANDO |
| 8000222 | DELCO |
| 95520349 | OPEL |
| 96627036 | GM |
| 96673023 | GM |
| CST46115GS | CASCO |
| DRS0903 | DELCO |
| DS2013 | DELCO |
| KC | OPEL |
| LRS03991 | LUCAS |
| LRS3991 | LUCAS |
| PXPSC-013 | PARTS MALL |
| S1083S | AS-PL |
| S1085R | PRESTOLITE |
| STR2116 | ELECTROLOG |
| TZ | OPEL |
| UD19289S | AS-PL |
