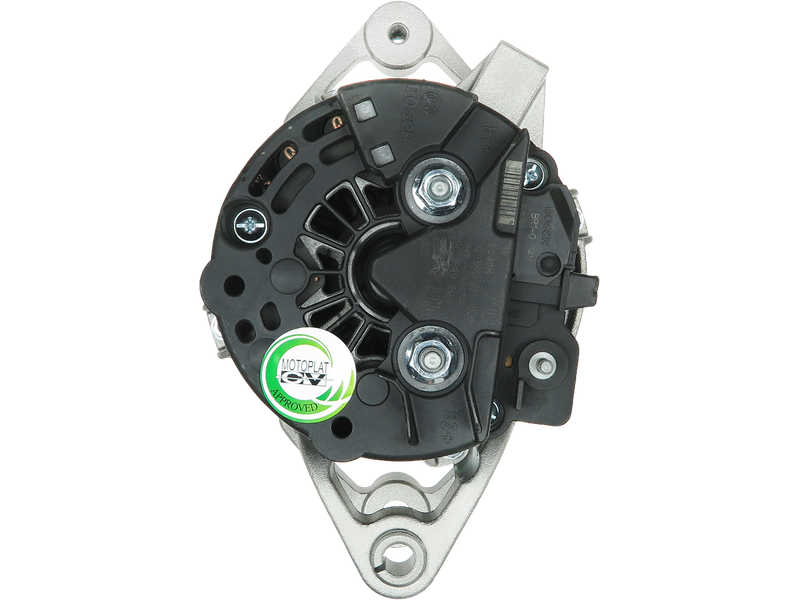

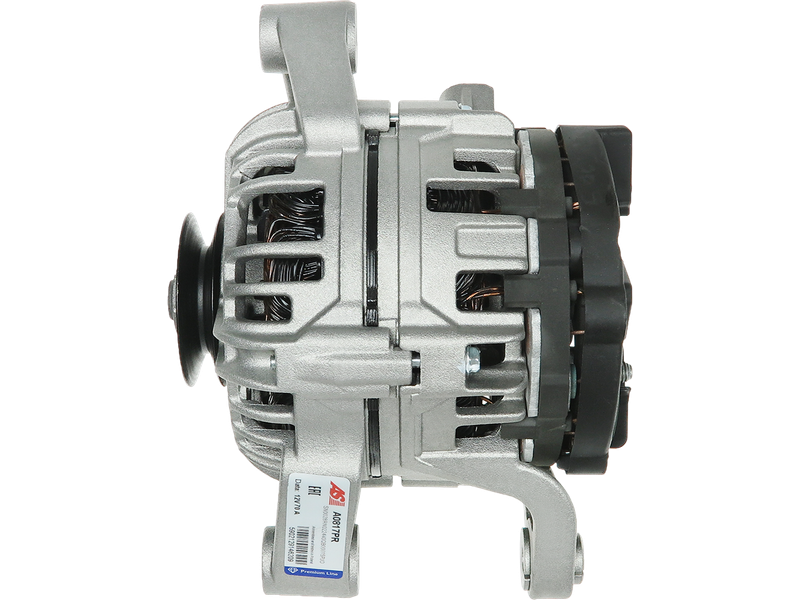

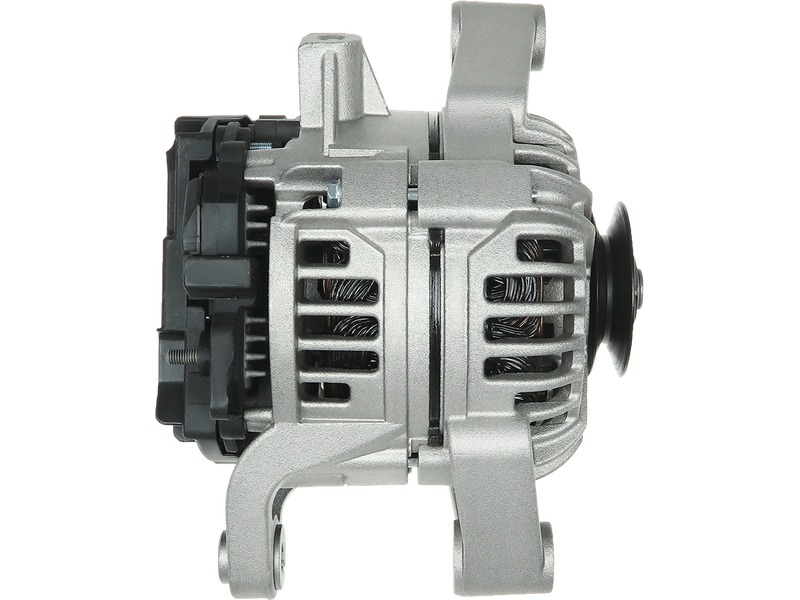

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 251.68 including GST
NZ$ 218.85 excluding GST
or four payments of $62.92
with
Learn More
each
A0817PR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 33.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 162.50 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 9 mm |
| Pulley Outside Diameter (O.D.1) | 38 mm |
| Pulley Outside Diameter (O.D.2) | 60 mm |
| Pulley to Mount Distance (A) | 53 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra F 1.7 D | [17DR] | 07.1992-01.1999 |
| OPEL | Astra F 1.7 TD | [X17DTL] | 08.1994-01.1999 |
| OPEL | Astra G 1.7 TD | [X17DTL] | 01.1999-04.2005 |
| OPEL | Astra G 1.7 TD | [X17DTL] | 02.1998-08.2000 |
| OPEL | Astra G 1.7 TD | [X17DTL] | 09.1998-08.2000 |
| VAUXHALL | Astra Mk IV 1.7 TD | [X17DTL] | 02.1998-08.2000 |
| VAUXHALL | Astra Mk IV 1.7 TD | [X17DTL] | 08.1998-08.2006 |
| VAUXHALL | Astra Mk IV 1.7 TD | [X17DTL] | 09.1998-08.2000 |
Reference Information
| 0124225009 | BOSCH |
| 0124225025 | BOSCH |
| 0124415010 | BOSCH |
| 0986041270 | BOSCH |
| 12041270 | EUROTEC |
| 1204137 | OPEL |
| 21951R | WAI / TRANSPO |
| 228139702 | DRI |
| 28-3725 | ELSTOCK |
| 301440RI | KUHNER |
| 301440RIB | KUHNER |
| 32044210 | HERTH+BUSS |
| 35215050 | PRESTOLITE |
| 437708 | VALEO |
| 441587 | LOGISTIK |
| 4598 | CEVAM |
| 56885 | EAI |
| 6204078 | OPEL |
| 6204175 | OPEL |
| 885ST65 | STARTCAR |
| 89213661 | POWERMAX |
| 9041270 | FRIESEN |
| 90589566 | OPEL |
| 9117933 | OPEL |
| 9133602 | OPEL |
| 9192826 | OPEL |
| 9213661 | POWERMAX |
| 93177610 | OPEL |
| 93177611 | OPEL |
| 943355050010 | MAGNETI MARELLI |
| 944390412700 | MAGNETI MARELLI |
| 9512935 | OPEL |
| A12BH0633A2 | SIDAT |
| AEA4205 | AUTOELECTRO |
| AL01863 | TMI |
| ALB1146 | KRAUF |
| ALB1440 | WOODAUTO |
| ALT10253 | ELECTROLOG |
| ALT122260 | SIOM |
| ALTS985 | 3EFFE |
| ANM43490 | ANDEL |
| BBA2096 | BORG & BECK |
| CA1440IR | HC PARTS |
| DB2380 | DELCO |
| DRB1270 | DELCO |
| L41270 | ATL AUTOTECHNIK |
| LRB00405 | LUCAS |
| LRB405 | LUCAS |
| MAR5550 | MAGNETI MARELLI |
| MRA41270 | MAGNETI MARELLI |
| OP8031 | SNRA |
| PRAS985 | 3EFFE |
| STX101507 | STARDAX |
| WOOALB1440 | WOODAUTO |
