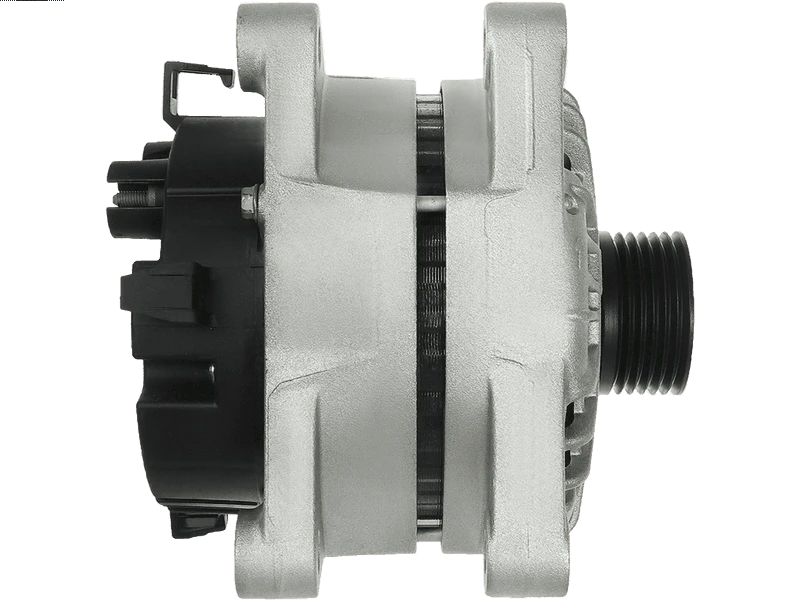

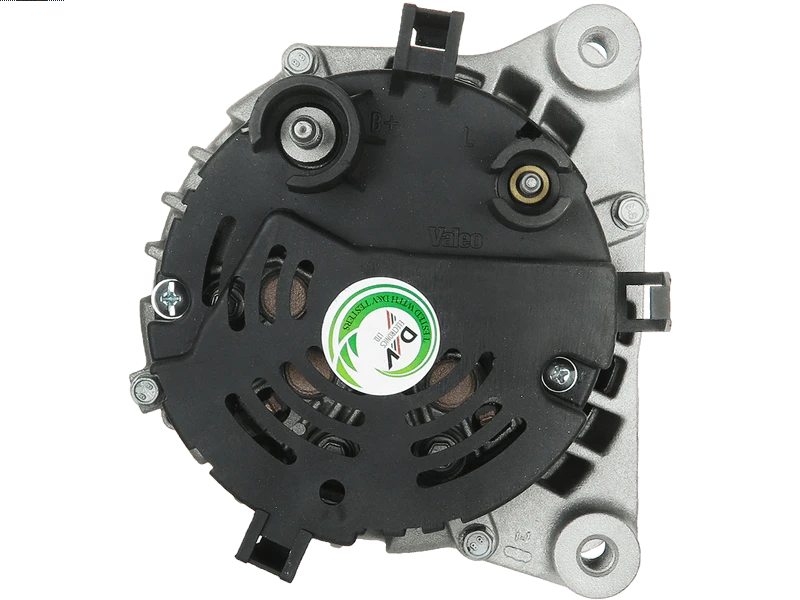

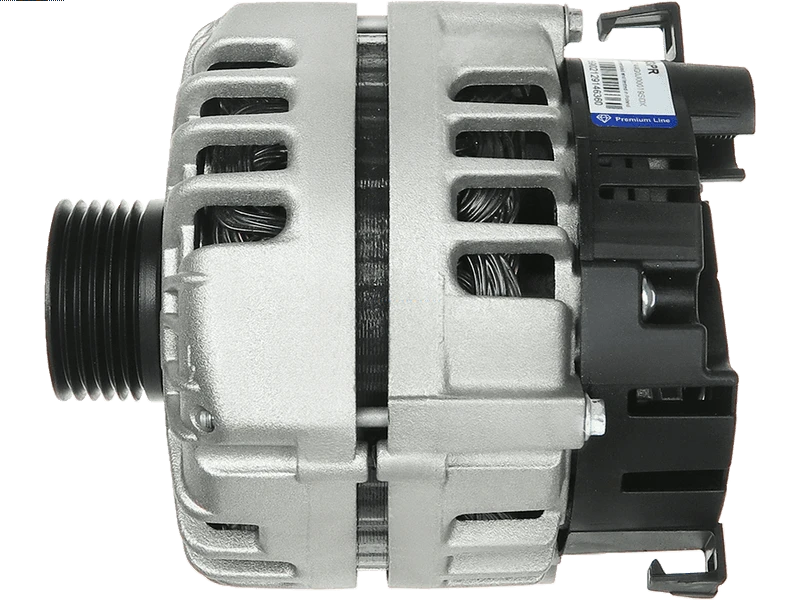

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 469.74 including GST
NZ$ 408.47 excluding GST
or four payments of $117.44
with
Learn More
each
A3593PR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 22 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 172 mm |
| Mount Inside Length or Pad Mount C-C (C) | 45.50 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 51 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C5 3.0 Carlsson | [XFX(ES9J4S)] | 09.2003-08.2004 |
| CITROEN | C5 3.0 Carlsson HP | [XFX(ES9J4S)] | 09.2004- |
| CITROEN | C5 3.0 V6 | [XFU(ES9A)] | 09.2004- |
| CITROEN | C5 3.0 V6 | [XFX(ES9J4S)] | 03.2001-08.2004 |
| CITROEN | C5 3.0 V6 | [XFX(ES9J4S)] | 05.2001-08.2004 |
| CITROEN | C5 3.0 V6 | [XFX(ES9J4S)] | 06.2001-08.2004 |
| CITROEN | C5 3.0 V6 | [XFX(ES9J4S)] | 09.2004- |
| CITROEN | C6 3.0 V6 | [XFV(ES9A)] | 09.2005-12.2012 |
| CITROEN | C6 3.0 V6 | [XFX(ES9J4S)] | 09.2005-12.2012 |
| CITROEN | C8 3.0 | [XFX(ES9J4S)] | 11.2003-10.2007 |
| CITROEN | C8 3.0 V6 | [XFX(ES9J4S)] | 07.2002- |
| LANCIA | Phedra 3.0 V6 | [ES9J4S] | 09.2002-11.2010 |
| PEUGEOT | 407 3.0 | [XFV(ES9A)] | 03.2004-12.2010 |
| PEUGEOT | 407 3.0 | [XFV(ES9A)] | 05.2004-12.2010 |
| PEUGEOT | 407 3.0 V6 | [XFV(ES9A)] | 10.2005- |
| PEUGEOT | 807 3.0 V6 | [XFX(ES9J4S)] | 06.2002- |
| RENAULT | Clio 3.0 V6 Sport | [L7X760] | 11.2000-12.2002 |
| RENAULT | Espace 3.0 V6 24V | [L7X727] | 10.1998-10.2002 |
| RENAULT | Laguna 2.9 24V | [L7X700] | 03.1997-03.2001 |
| RENAULT | Laguna 2.9 24V | [L7X701] | 03.1997-03.2001 |
| RENAULT | Laguna 3.0 24V | [L7X700] | 03.1997-03.2001 |
| RENAULT | Laguna 3.0 24V | [L7X701] | 03.1997-03.2001 |
| RENAULT | Laguna 3.0 V6 24V | [L7X731] | 03.2001-08.2007 |
| RENAULT | Laguna 3.0 V6 24V | [L7X731] | 03.2001-12.2007 |
| RENAULT | Safrane 3.0 V6 | [Z7X755] | 07.1996-12.2000 |
Reference Information
| 0986045211 | BOSCH |
| 22872R | WAI / TRANSPO |
| 2541967 | VALEO |
| 2541967A | VALEO |
| 2542298 | VALEO |
| 2542298A | VALEO |
| 28-3734 | ELSTOCK |
| 301392RIR | KUHNER |
| 301392RIV | KUHNER |
| 4016 | CEVAM |
| 436749 | VALEO |
| 437328 | VALEO |
| 441539 | LOGISTIK |
| 56647 | EAI |
| 57056A | PEUGEOT |
| 57056A | PEUGEOT |
| 57057N | PEUGEOT |
| 57057P | PEUGEOT |
| 57057P | PEUGEOT |
| 5705GT | PEUGEOT |
| 575.582.120.500 | PSH |
| 575.582.120.505 | PSH |
| 7711134528 | RENAULT |
| 8EL737590-001 | HELLA |
| 944390452110 | MAGNETI MARELLI |
| 9632489280 | PEUGEOT |
| 9634475880 | PEUGEOT |
| 9637185880 | RENAULT |
| 9637185880 | FIAT |
| A13VI201 | VALEO |
| AEC1392 | AUTOELECTRO |
| ALTF252 | 3EFFE |
| ALV1392 | KRAUF |
| CA1392IR | HC PARTS |
| DA4835 | DELCO |
| DRA3725 | DELCO |
| LRA01872 | LUCAS |
| LRA1872 | LUCAS |
| MRA45211 | MAGNETI MARELLI |
| PRAF252 | 3EFFE |
| SG12S019 | VALEO |
| STA0530R | BOVEZ |
| STX100785 | STARDAX |
Video/Publications
