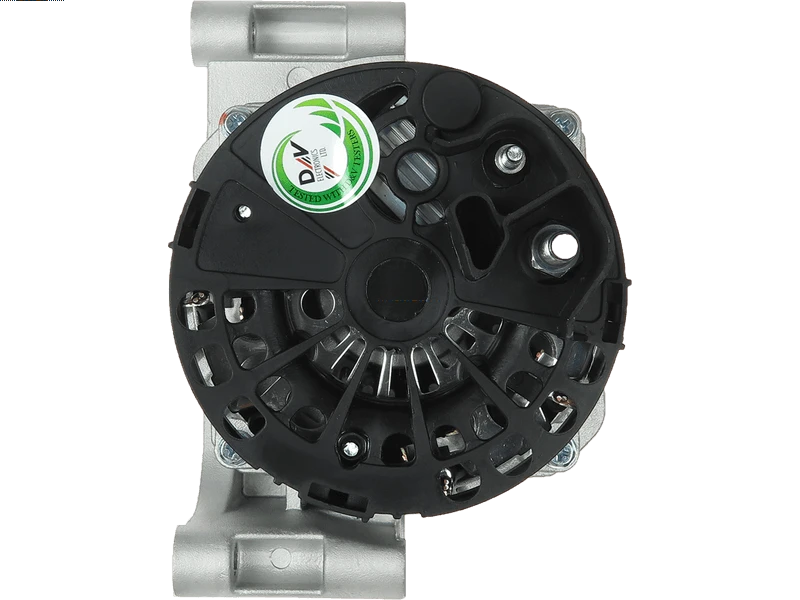

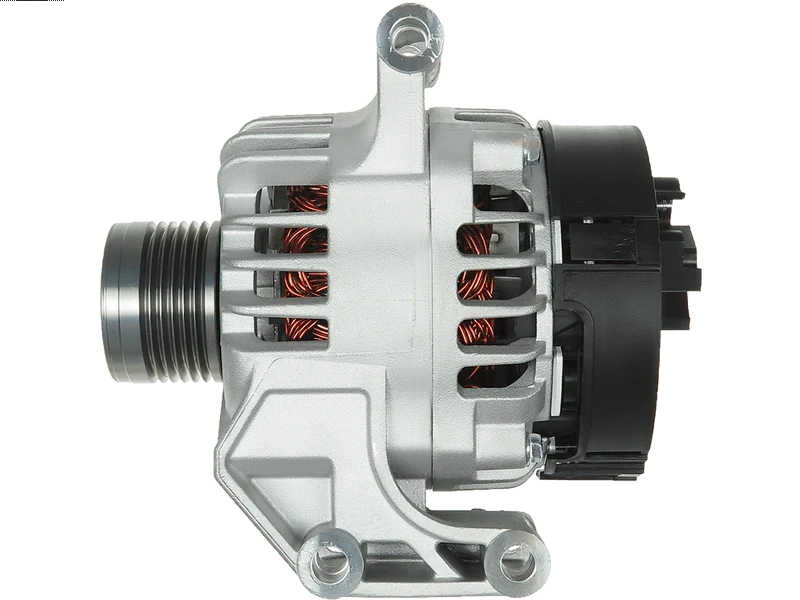

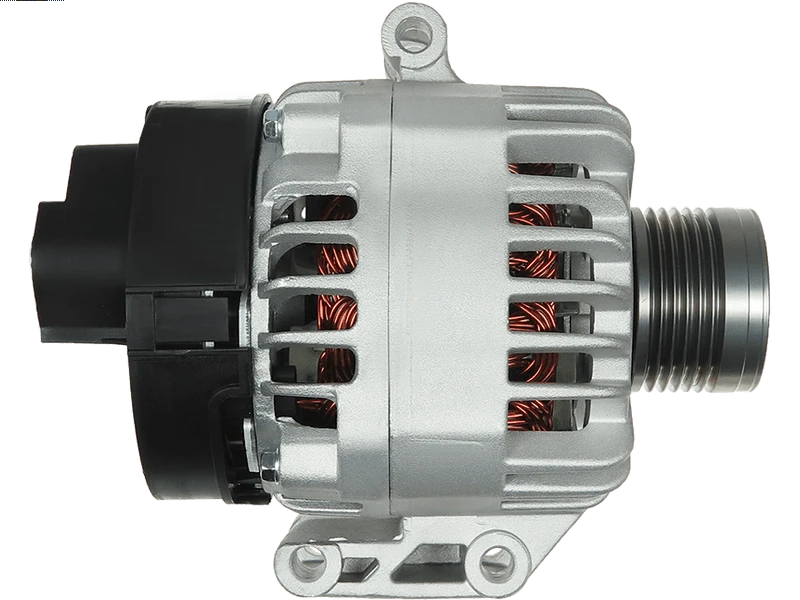

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 487.52 including GST
NZ$ 423.93 excluding GST
or four payments of $121.88
with
Learn More
each
A3133,A3133(VALEO),A6482S,A6482(DENSO)
A6438S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
1012101180Specifications
| Amp | 90 A |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 200 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Pad mount thickness (E.3) | 64 mm |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 44 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 500 1.3 D Multijet | [169A1.000] | 10.2007- |
| FIAT | 500 C 1.3 D Multijet | [169A1.000] | 09.2009- |
| FIAT | Doblo 1.3 D Multijet | [199A2.000] | 10.2005-01.2010 |
| FIAT | Doblo 1.3 D Multijet | [199A3.000] | 02.2010- |
| FIAT | Doblo 1.3 D Multijet | [223A9.000] | 10.2005- |
| FIAT | Doblo 1.3 D Multijet | [263A2.000] | 02.2010- |
| FIAT | Doblo 1.3 JTD | [199A2.000] | 05.2005- |
| FIAT | Doblo 1.3 JTD 16V | [188A8.000] | 05.2004-12.2006 |
| FIAT | Doblo 1.3 JTD 16V | [188A9.000] | 05.2004-12.2006 |
| FIAT | Doblo 1.3 JTD 16V | [188A9.000] | 12.2004-05.2005 |
| FIAT | Doblo 1.3 JTD 16V Multijet | [223A9.000] | 08.2006- |
| FIAT | Fiorino 1.3 D Multijet | [199A2.000] | 11.2007- |
| FIAT | Fiorino 1.3 D Multijet | [199A9.000] | 11.2007- |
| FIAT | Grande Punto 1.3 D Multijet | [199A2.000] | 10.2005- |
| FIAT | Grande Punto 1.3 D Multijet | [199A3.000] | 10.2005-12.2010 |
| FIAT | Grande Punto 1.3 D Multijet | [199B2.000] | 07.2008- |
| FIAT | Idea 1.3 D Multijet | [188A9.000] | 01.2004- |
| FIAT | Idea 1.3 D Multijet | [199A3.000] | 10.2005- |
| FIAT | Idea 1.3 D Multijet | [199B1.000] | 05.2008-12.2012 |
| FIAT | Linea 1.3 D Multijet | [199A3.000] | 06.2007- |
| FIAT | Linea 1.3 D Multijet | [199A3.000] | 09.2009- |
| FIAT | Panda 1.3 D Multijet | [169A1.000] | 01.2006- |
| FIAT | Panda 1.3 D Multijet | [169A1.000] | 06.2006-08.2013 |
| FIAT | Panda 1.3 D Multijet | [169A5.000] | 06.2006-08.2013 |
| FIAT | Panda 1.3 D Multijet | [188A8.000] | 03.2004- |
| FIAT | Panda 1.3 D Multijet | [188A8.000] | 09.2003- |
| FIAT | Panda 1.3 D Multijet 4x4 | [169A1.000] | 01.2006- |
| FIAT | Panda 1.3 D Multijet 4x4 | [188A8.000] | 10.2004- |
| FIAT | Panda 1.3 D Multijet 4x4 | [188A8.000] | 10.2004-12.2006 |
| FIAT | Panda 1.3 JTD Multijet 4x4 | [169A1.000] | 09.2010-08.2013 |
| FIAT | Panda 1.3 JTD Multijet 4x4 | [169A5.000] | 09.2010-08.2013 |
| FIAT | Punto 1.3 JTD | [188A9.000] | 06.2003-10.2005 |
| FIAT | Punto 1.3 JTD 16V | [188A9.000] | 06.2003-03.2012 |
| FIAT | Punto Evo 1.3 D Multijet | [199A2.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.3 D Multijet | [199A3.000] | 03.2009-02.2012 |
| FIAT | Punto Evo 1.3 D Multijet | [199A3.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.3 D Multijet | [199A9.000] | 10.2009-02.2012 |
| FIAT | Punto Evo 1.3 D Multijet | [199B2.000] | 07.2008-02.2012 |
| FIAT | Qubo 1.3 D Multijet | [199A2.000] | 02.2008- |
| FIAT | Qubo 1.3 D Multijet | [199A9.000] | 02.2008- |
| FIAT | Strada 1.3 D Multijet | [199B1.000] | 10.2010- |
| FIAT | Strada 1.3 D Multijet | [223A9.000] | 05.2006- |
| FORD | Ka 1.3 TDCi | [169A1000] | 10.2008-05.2016 |
| FORD | Ka 1.3 TDCi | [FD4] | 10.2008-05.2016 |
| LANCIA | Musa 1.3 D Multijet | [188A9.000] | 10.2004-09.2012 |
| LANCIA | Musa 1.3 D Multijet | [199A3.000] | 09.2006-09.2012 |
| LANCIA | Musa 1.3 D Multijet | [199B1.000] | 03.2009-09.2012 |
| LANCIA | Ypsilon 1.3 D Multijet | [199A2.000] | 09.2006-12.2011 |
| LANCIA | Ypsilon 1.3 D Multijet | [199A3.000] | 05.2007-12.2011 |
| LANCIA | Ypsilon 1.3 D Multijet | [199A3.000] | 09.2006-12.2011 |
| LANCIA | Ypsilon 1.3 JTD | [188A9.000] | 10.2003-12.2011 |
Reference Information
| 063358061010 | MAGNETI MARELLI |
| 063377019010 | MAGNETI MARELLI |
| 063377022010 | MAGNETI MARELLI |
| 063731862010 | MAGNETI MARELLI |
| 0986048771 | BOSCH |
| 101210-1120 | DENSO |
| 101210-1121 | DENSO |
| 101210-1180 | DENSO |
| 101210-1190 | DENSO |
| 101210-1191 | DENSO |
| 101210-1192 | DENSO |
| 101210-1222 | DENSO |
| 10443100 | ALANKO |
| 112279 | FARCOM |
| 113722 | CARGO |
| 115963 | CARGO |
| 12048770 | EUROTEC |
| 12160930 | MTR |
| 13117279 | OPEL |
| 13117279YQ | OPEL |
| 13243463 | OPEL |
| 13283344 | OPEL |
| 135.535.090.000 | PSH |
| 135.535.090.050 | PSH |
| 135.535.090.056 | PSH |
| 135.535.090.058 | PSH |
| 135.535.090.260 | PSH |
| 135.535.090.380 | PSH |
| 135.535.090.501 | PSH |
| 135.535.090.505 | PSH |
| 135.535.090.506 | PSH |
| 1539099 | FORD |
| 1571297 | FORD |
| 1986A00559 | BOSCH |
| 200082 | VALEO |
| 20015261OV | ITAB AUTOMOTIVE |
| 2015118.0 | SANDO |
| 2015118.1 | SANDO |
| 20179811BN | REAL |
| 20179811OE | REAL |
| 210451 | ERA |
| 210451A | ERA |
| 228151902 | DRI |
| 2382269 | FORD |
| 23923N | WAI / TRANSPO |
| 2542670 | VALEO |
| 2542670A | VALEO |
| 2542670B | VALEO |
| 2542851 | VALEO |
| 2542851A | VALEO |
| 2542861 | VALEO |
| 2542861C | VALEO |
| 2542884 | VALEO |
| 2542884A | VALEO |
| 2543477 | VALEO |
| 2543477A | VALEO |
| 2606334A | VALEO |
| 28-4921 | ELSTOCK |
| 28-4921CT | AINDE |
| 301862RI | KUHNER |
| 301862RIR | KUHNER |
| 301862RIV | KUHNER |
| 3111116 | HENKEL PARTS |
| 3111118 | HENKEL PARTS |
| 3111122 | HENKEL PARTS |
| 31400-85E00 | SUZUKI |
| 31400-T85E00 | SUZUKI |
| 32437504 | HERTH+BUSS |
| 432025M | MEC-DIESEL |
| 437474 | VALEO |
| 439505 | VALEO |
| 441977 | LOGISTIK |
| 46823547 | FIAT |
| 4732 | CEVAM |
| 4753 | CEVAM |
| 4848771 | NK |
| 51784845 | FIAT |
| 51787209 | FIAT |
| 51805800 | FIAT |
| 51854910 | FIAT |
| 51854915 | FIAT |
| 51984055 | FIAT |
| 52003512 | FIAT |
| 52003517 | FIAT |
| 52092136 | FIAT |
| 5515034 | MEAT & DORIA |
| 5515034R | MEAT & DORIA |
| 55185076 | FIAT |
| 56859 | EAI |
| 6204181 | OPEL |
| 6204191 | OPEL |
| 6204261 | OPEL |
| 6204291 | OPEL |
| 63358061 | OPEL |
| 63377019 | OPEL |
| 703000096 | FIAT |
| 71723039 | FIAT |
| 71789694 | FIAT |
| 71792860 | FIAT |
| 71794193 | FIAT |
| 71794523 | FIAT |
| 71794527 | FIAT |
| 71795805 | FIAT |
| 859ST65 | STARTCAR |
| 89212358 | POWERMAX |
| 8EL011710-841 | HELLA |
| 9090211 | FRIESEN |
| 93193612 | OPEL |
| 943318621010 | MAGNETI MARELLI |
| 944390901960 | MAGNETI MARELLI |
| 95519875 | OPEL |
| 9S51-10346-DA | FORD |
| 9S51-10346-DB | FORD |
| A129.898 | PSH |
| A12VA0001 | SIDAT |
| A12VA0001A2 | SIDAT |
| A147.512 | PSH |
| A149.805 | PSH |
| AAL1776 | APEC |
| AG0509 | GHIBAUDI |
| AL02497 | TMI |
| ALT0097 | ELECTROLOG |
| ALT855CP | ROLLCO |
| ALTL245 | 3EFFE |
| ALTL245NE | 3EFFE |
| ALTL245U | 3EFFE |
| ALTL245V | 3EFFE |
| ALV1862 | KRAUF |
| AVA261 | AUTOTEAM |
| AZMT-49-035-1704 | A.Z. MEISTERTEILE |
| BBA2348 | BORG & BECK |
| BBA2820 | BORG & BECK |
| CAL15118AS | CASCO |
| CAL15118GS | CASCO |
| DAN1002 | DENSO |
| DAN996 | DENSO |
| EAL-8501 | KAVO PARTS |
| F032113722 | CARGO |
| F032115963 | CARGO |
| FI8096 | SNRA |
| L48770 | ATL AUTOTECHNIK |
| LEA0467 | LE PART |
| LEA1003 | LE PART |
| LRA02804 | LUCAS |
| LRA2804 | LUCAS |
| NPANAL1776 | NAPA |
| QRA2548 | QUINTON HAZELL |
| S511I18 | NPS |
| STX100071R | STARDAX |
| TG9S010 | VALEO |
| TG9S015 | VALEO |
| TG9S016 | VALEO |
| TG9S021 | VALEO |
| TG9S022 | VALEO |
| TG9S036 | VALEO |
| TG9S140 | VALEO |
| TT11302 | TESLA |
| WG1916960 | WILMINK GROUP |
| WG2011918 | WILMINK GROUP |
| WG2011919 | WILMINK GROUP |
| WG2174939 | WILMINK GROUP |
