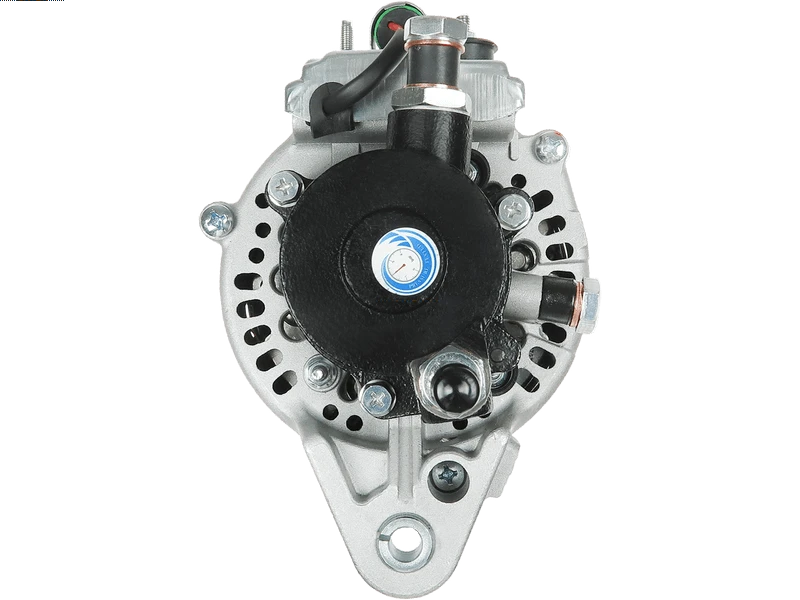

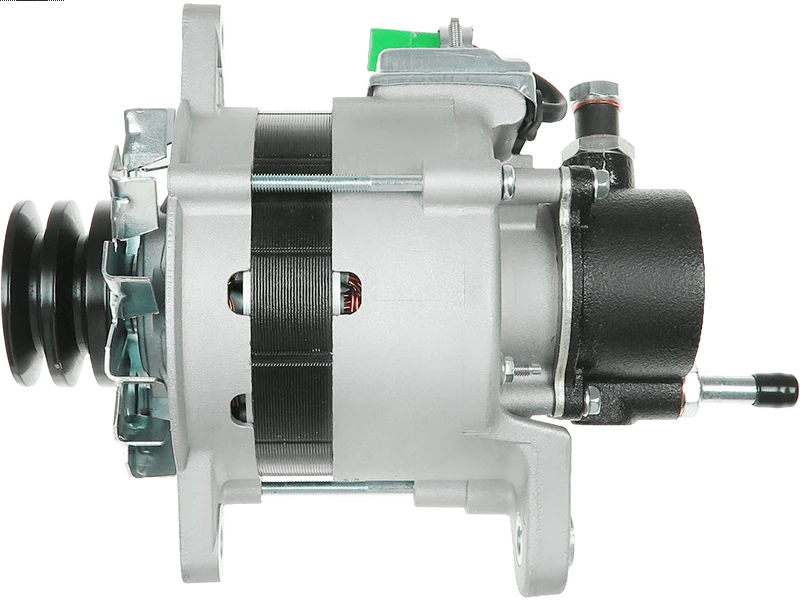

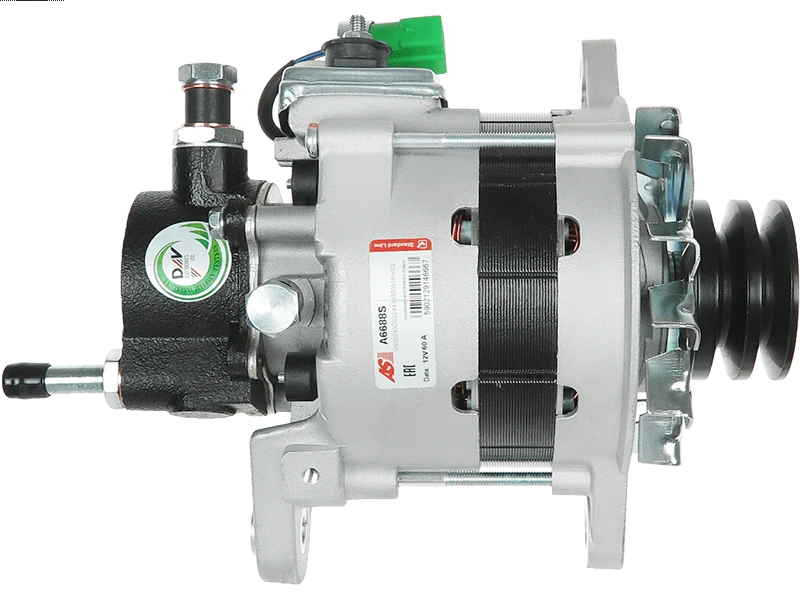

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 521.57 including GST
NZ$ 453.54 excluding GST
or four payments of $130.39
with
Learn More
each
A6688S
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
100213-0230Associated Numbers
14-837
anj283
anj019
65-8402
dxa513

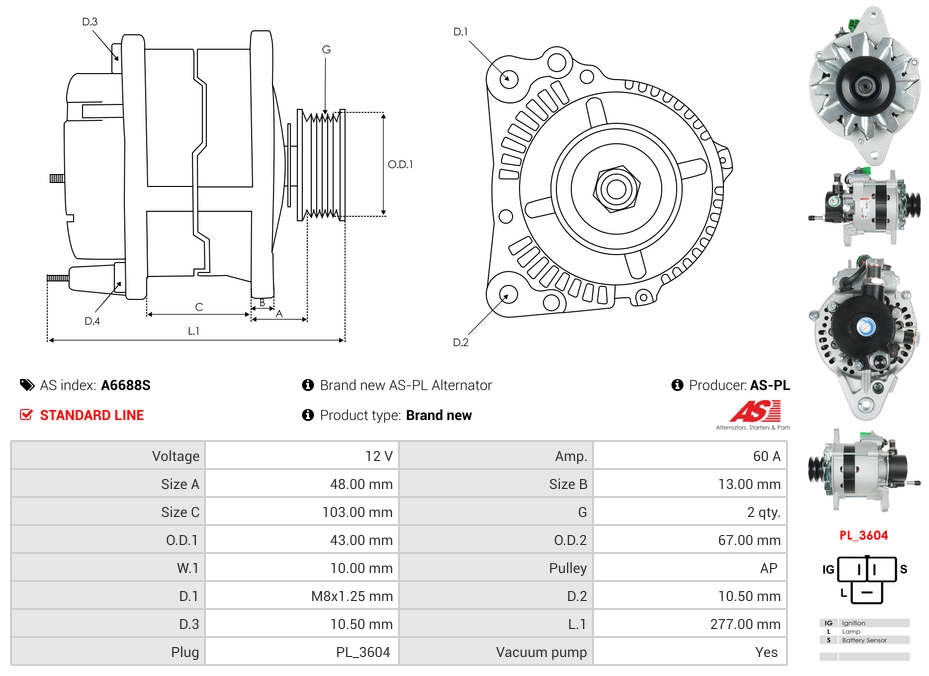

Specifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 277 mm |
| Mount Inside Length or Pad Mount C-C (C) | 103 mm |
| OEM Product | No |
| Plug Code | PL_3604 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 43 mm |
| Pulley Outside Diameter (O.D.2) | 67 mm |
| Pulley to Mount Distance (A) | 48 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | 4 Runner 2.4 TD | 01.1989-12.1995 | |
| TOYOTA | Hi-Lux 2.4 D | [2L] | 03.1989-02.1997 |
| TOYOTA | Hi-Lux 2.8 D | [2L] | |
| TOYOTA | Land Cruiser 2.4 D | [2L] | 11.1984-10.1985 |
| VW | Taro 2.4 D | [2L] | 01.1994-12.2007 |
Reference Information
| 100213-0220 | DENSO |
| 100213-0230 | DENSO |
| 100213-0231 | DENSO |
| 100213-0250 | DENSO |
| 100213-0770 | DENSO |
| 100213-1180 | DENSO |
| 100213-1300 | DENSO |
| 100213-1520 | DENSO |
| 100213-1700 | DENSO |
| 114203 | CARGO |
| 121000-0730 | DENSO |
| 121000-0731 | DENSO |
| 121000-0940 | DENSO |
| 195.808.060.050 | PSH |
| 20152401BN | REAL |
| 2044104.0 | SANDO |
| 27020-54150 | TOYOTA |
| 27020-54180 | TOYOTA |
| 2702054220 | TOYOTA |
| 27020-54542 | TOYOTA |
| 27040-54030 | TOYOTA |
| 27040-54040 | TOYOTA |
| 27040-54050 | TOYOTA |
| 27040-54060 | TOYOTA |
| 2704054080 | TOYOTA |
| 27040-54080 | TOYOTA |
| 27040-54100 | TOYOTA |
| 2704054141 | TOYOTA |
| 2704054143 | TOYOTA |
| 27040-54151 | TOYOTA |
| 27040-54270 | TOYOTA |
| 27040-54271 | TOYOTA |
| 2704054272 | TOYOTA |
| 27040-64010 | TOYOTA |
| 28-0842 | ELSTOCK |
| 40799RI | KUHNER |
| 445848 | LOGISTIK |
| 56580 | EAI |
| 8EL730740-001 | HELLA |
| 8EL731740-001 | HELLA |
| 90-29-5498 | WILSON |
| 9263 | CEVAM |
| A12DE0493A2 | SIDAT |
| A6688S | AS-PL |
| AEA5152 | AUTOELECTRO |
| ALN0799 | KRAUF |
| ALT30062 | WOODAUTO |
| ALT6020 | ELECTROLOG |
| ALT6030 | ELECTROLOG |
| ALTL448 | 3EFFE |
| CAL44104AS | CASCO |
| CGB-13505 | AINDE |
| CGB-80842 | AINDE |
| DA4615 | DELCO |
| DA4615N | DELCO |
| DRA3505 | DELCO |
| DRA3505N | DELCO |
| F032114203 | CARGO |
| JA799IR | HC PARTS |
| LRA01227 | LUCAS |
| LRA1227 | LUCAS |
| PRAL448 | 3EFFE |
| STX100232 | STARDAX |
| STX100232R | STARDAX |
| STX100957 | STARDAX |
| UD19524A | AS-PL |
