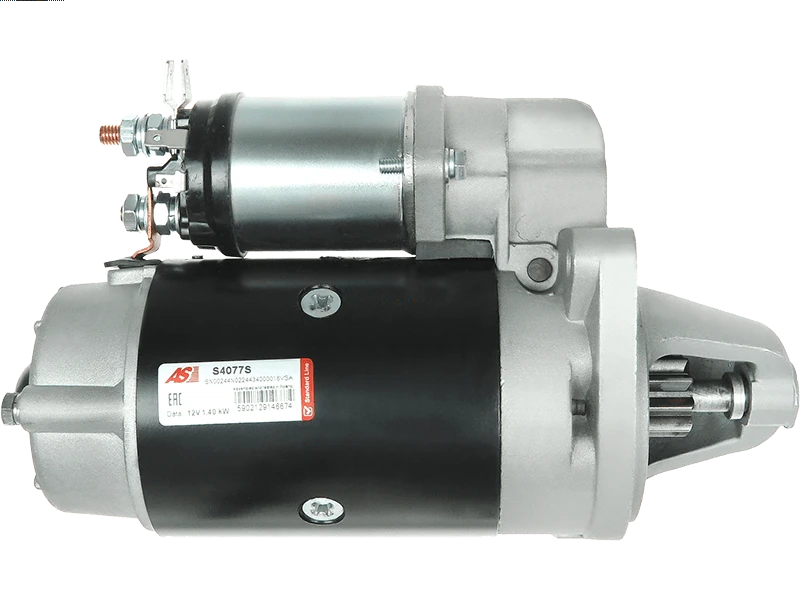

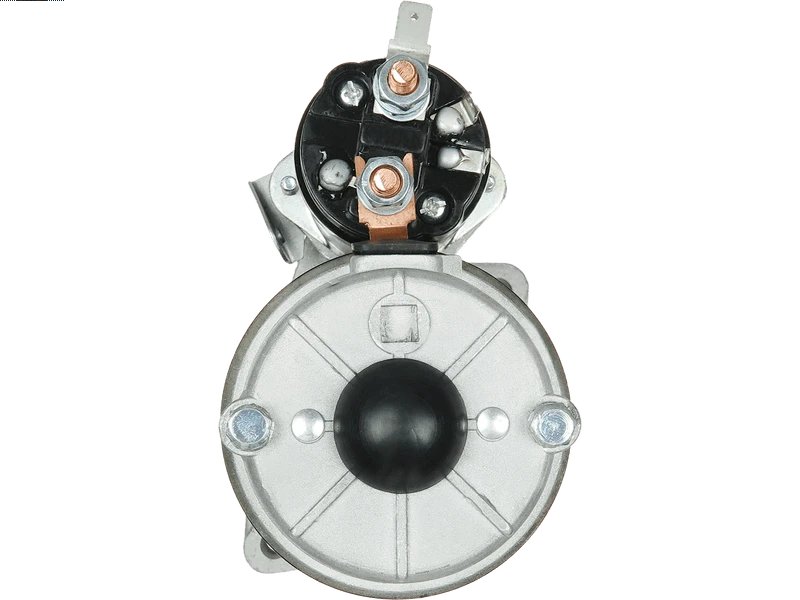

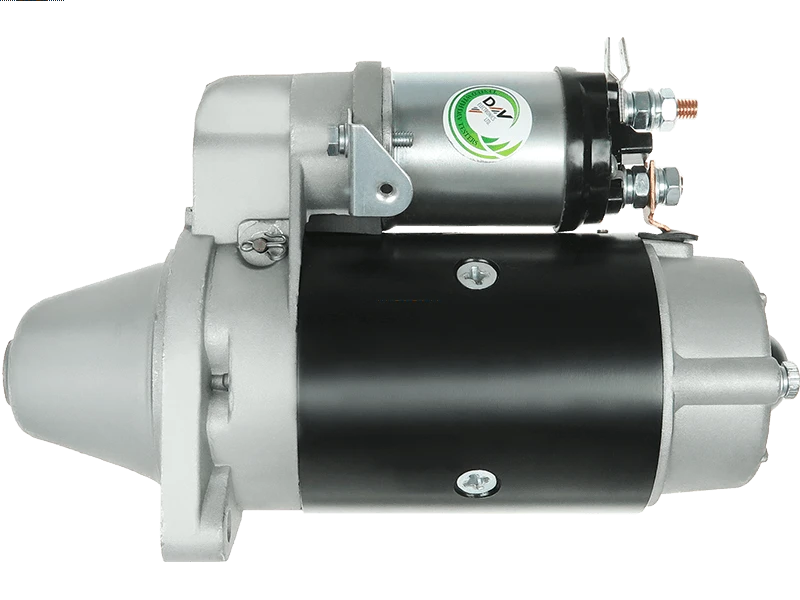

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 509.13 including GST
NZ$ 442.72 excluding GST
or four payments of $127.28
with
Learn More
UOM:
each
Product Code:
S4077S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
LRS156Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 278 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Diameter (C.1) | UNC 3/8" - 16 mm |
| Mount Hole Diameter (C.2) | UNC 3/8" - 16 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | XJ 6 3.4 | [XK3.4] | 05.1975-10.1986 |
| JAGUAR | XJ 6 4.2 | [8L] | 01.1975-12.1979 |
| JAGUAR | XJ 6 4.2 | [8L] | 09.1985-12.1986 |
| JAGUAR | XJ 6 4.2 | [XK4.2] | 11.1973-01.1980 |
Reference Information
| 11448 | EAI |
| 16178N | WAI / TRANSPO |
| 16178R | WAI / TRANSPO |
| 256280R | KUHNER |
| 26-0004 | ELSTOCK |
| 26252 | LUCAS |
| 26252A | LUCAS |
| 26252B | LUCAS |
| 26252D | LUCAS |
| 91-17-8852 | WILSON |
| AES1156 | AUTOELECTRO |
| DRS3413 | DELCO |
| DS4523 | DELCO |
| LRS00156 | LUCAS |
| LRS0156 | LUCAS |
| LRS156 | LUCAS |
| PRSL681 | 3EFFE |
| S4077S | AS-PL |
| STL0026 | KRAUF |
| STR4214 | ELECTROLOG |
| STR4215 | ELECTROLOG |
| STR56006 | WOODAUTO |
| STRL681 | 3EFFE |
| UD19530S | AS-PL |
