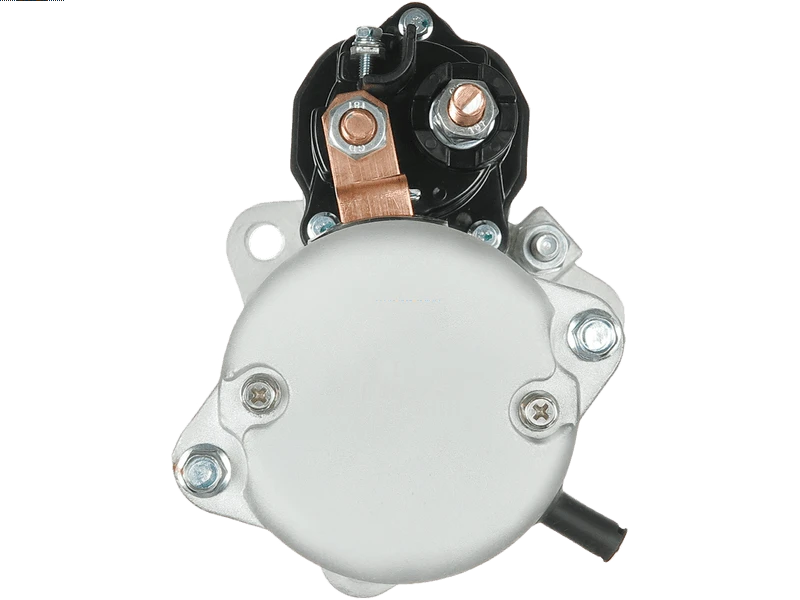

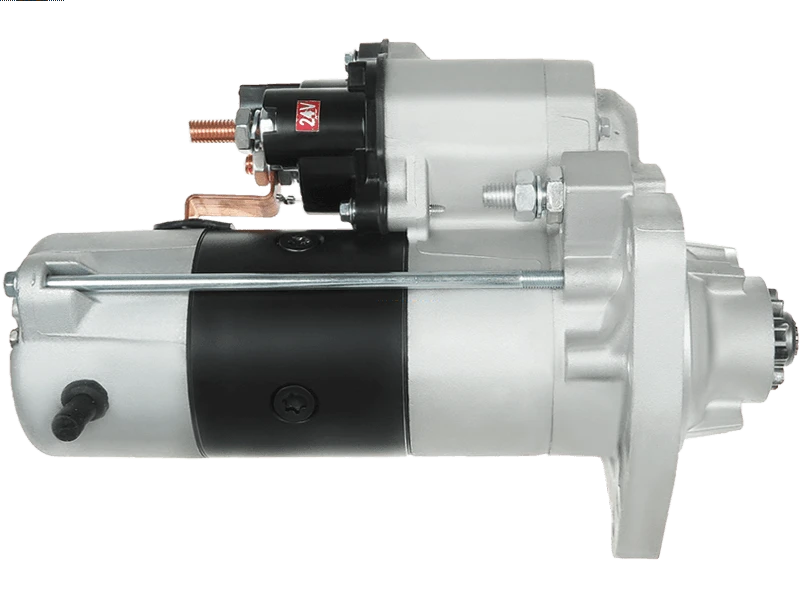

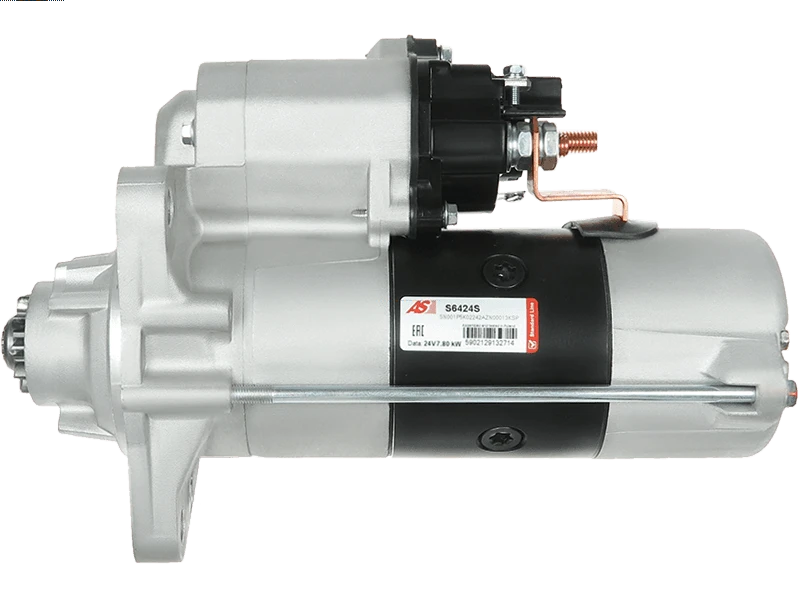

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 622.44 including GST
NZ$ 541.25 excluding GST
or four payments of $155.61
with
Learn More
each
S6424S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information

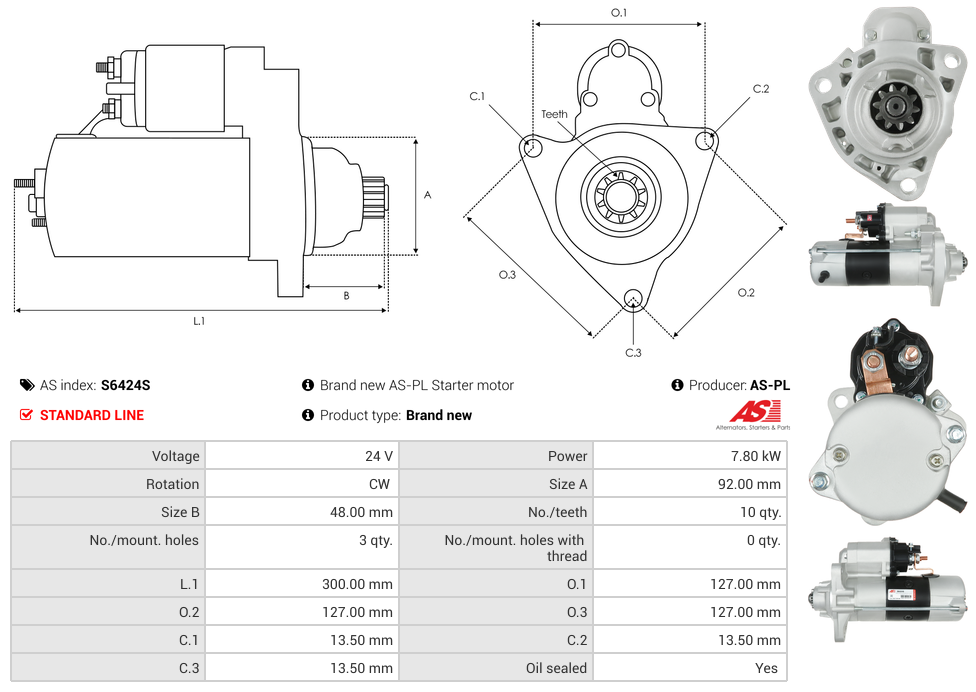

4995643Specifications
| Kilowatt | 7.80 kW |
| Length (L.1) | 300 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CUMMINS | Various Models |
Reference Information
| 246-31207 | DIXIE |
| 255512 | KUHNER |
| 428000-7160 | DENSO |
| 428000-7161 | DENSO |
| 428000-7162 | DENSO |
| 4995643 | CUMMINS |
| 6040660.0 | SANDO |
| 861382 | PRESTOLITE |
| CST40660AS | CASCO |
| S6424S | AS-PL |
| S-80664 | DIXIE |
| UD90481S | AS-PL |
