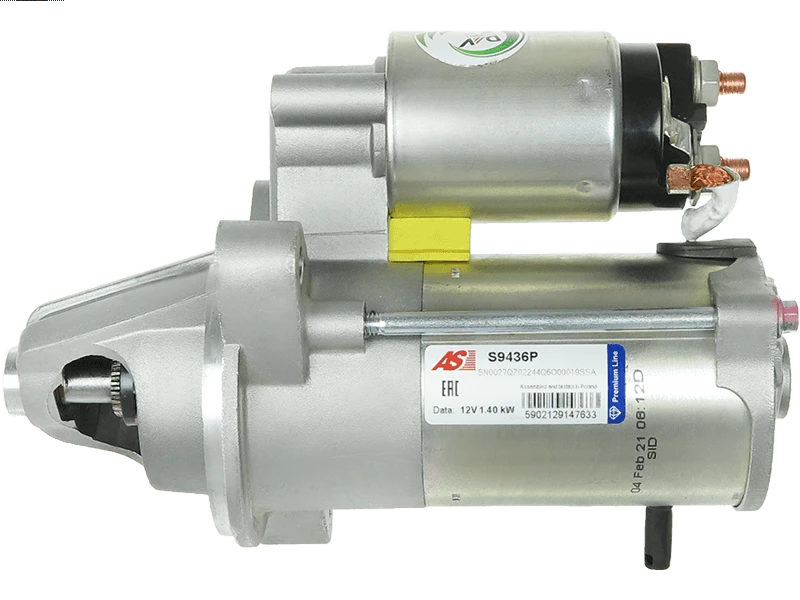

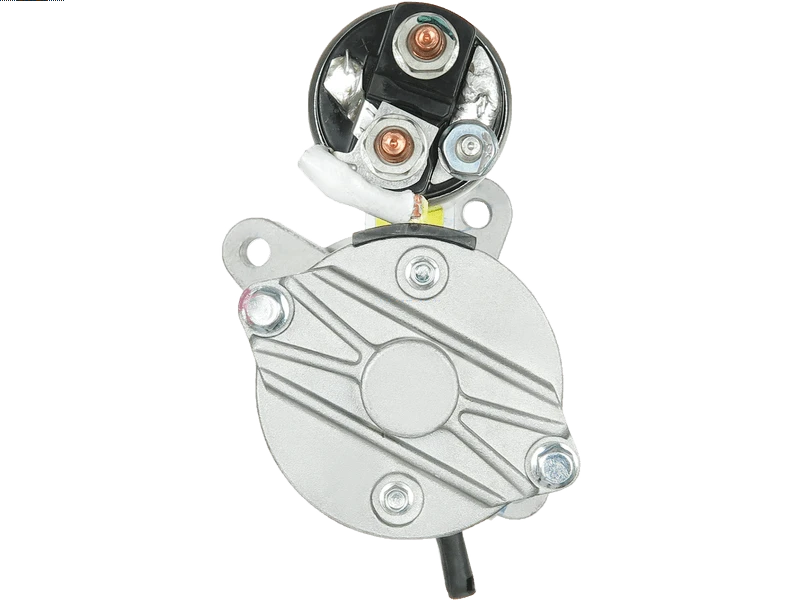

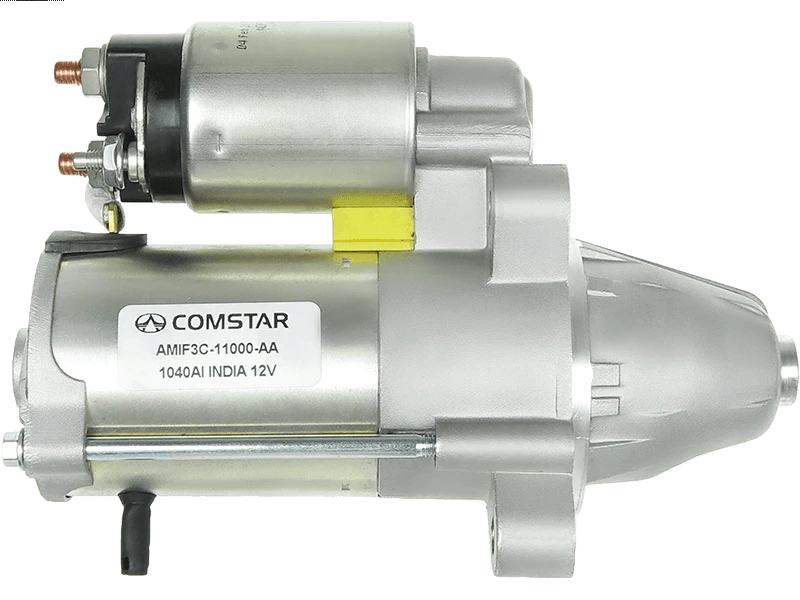

Brand new AS-PL Starter motor
PREMIUM LINE
AS-PL
FORD
Price:
NZ$ 482.13 including GST
NZ$ 419.24 excluding GST
or four payments of $120.53
with
Learn More
each
S9436P
1
Information
AMIF3C11000AASpecifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 207.50 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Center - Center (O.2) | 82.50 mm |
| Mount Hole Center - Center (O.3) | 67 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26.50 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | C-Max 1.5 EcoBoost | [M8DB] | 03.2015- |
| FORD | C-Max 1.5 EcoBoost | [M9DB] | 03.2015- |
| FORD | Focus 1.5 EcoBoost | [M8DA] | 09.2014- |
| FORD | Focus 1.5 EcoBoost | [M8DA] | 11.2014- |
| FORD | Focus 1.5 EcoBoost | [M8DB] | 09.2014- |
| FORD | Focus 1.5 EcoBoost | [M8DB] | 11.2014- |
| FORD | Focus 1.5 EcoBoost | [M8DD] | 09.2014- |
| FORD | Focus 1.5 EcoBoost | [M8DE] | 09.2014- |
| FORD | Focus 1.5 EcoBoost | [M9DA] | 09.2014- |
| FORD | Focus 1.5 EcoBoost | [M9DA] | 11.2014- |
| FORD | Focus 1.5 EcoBoost | [M9DB] | 09.2014- |
| FORD | Focus 1.5 EcoBoost | [M9DB] | 11.2014- |
| FORD | Grand C-Max 1.5 EcoBoost | [M8DB] | 03.2015- |
| FORD | Grand C-Max 1.5 EcoBoost | [M9DB] | 03.2015- |
| FORD | Kuga 1.5 EcoBoost | [BNMA] | 01.2016- |
| FORD | Kuga 1.5 EcoBoost | [M8MA] | 09.2014- |
| FORD | Kuga 1.5 EcoBoost 4x4 | [C15HDTX] | 06.2019- |
| FORD | Kuga 1.5 EcoBoost 4x4 | [C15HDTX] | 08.2018- |
| FORD | Kuga 1.5 EcoBoost 4x4 | [M8MA] | 07.2016- |
| FORD | Kuga 1.5 EcoBoost 4x4 | [M9MA] | 09.2014- |
| FORD | Kuga 1.5 EcoBoost E85 | [M8ME] | 02.2019-11.2019 |
Reference Information
| 1870893 | FORD |
| 1872914 | FORD |
| 20450631OE | REAL |
| 25-5246 | ELSTOCK |
| 33241N | WAI / TRANSPO |
| 3701 | CEVAM |
| 42003001 | HERTH+BUSS |
| 590.587.123.020 | PSH |
| 590.587.123.230 | PSH |
| 590.587.123.235 | PSH |
| 590.587.123.340 | PSH |
| 590.587.123.440 | PSH |
| 6014136.1 | SANDO |
| 8080484 | FRIESEN |
| AEY4083 | AUTOELECTRO |
| AMIF3C-11000-AA | FORD |
| CST14136GS | CASCO |
| DRS1055 | DELCO |
| F1FT-11000-EA | FORD |
| F1FT-11000-EB | FORD |
| LRS04083 | LUCAS |
| LRS4083 | LUCAS |
| MAV161360 | SIOM |
| S134.111 | PSH |
| S144.042 | PSH |
| STR8917 | ELECTROLOG |
| UD19661S | AS-PL |
Video/Publications
