Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 648.21 including GST
NZ$ 563.66 excluding GST
or four payments of $162.05
with
Learn More
each
A3601S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information

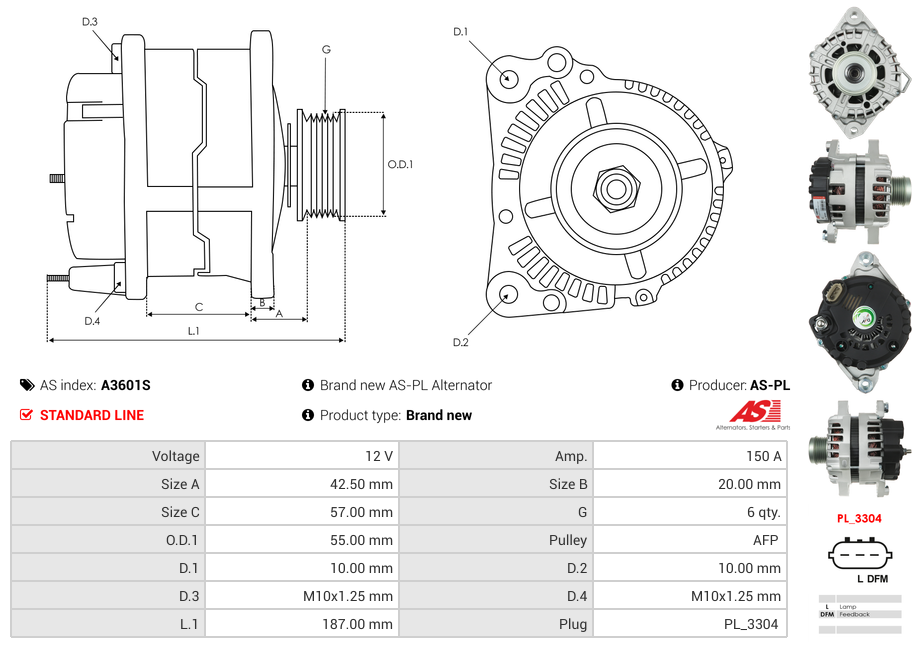

FG15S059Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 187 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Plug Code | PL_3304 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 42.50 mm |
| Pulley Type | Clutch |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | Sonata 2.4 | 01.2014-12.2014 | |
| KIA | Optima 2.4 | 01.2014-12.2015 |
Reference Information
| 11710 | LESTER |
| 11710N | WAI / TRANSPO |
| 2611176 | VALEO |
| 2612017B | VALEO |
| 2612490B | VALEO |
| 2621374 | VALEO |
| 37300-25700 | HYUNDAI / KIA |
| 37300-2G755 | HYUNDAI / KIA |
| 37300-2G800 | HYUNDAI / KIA |
| 37300-2G850 | HYUNDAI / KIA |
| 37300-2G900 | HYUNDAI / KIA |
| 90-22-5699 | WILSON |
| ALA7751 | KRAUF |
| FG15S059 | VALEO |
| FG15S060 | VALEO |
| FGN15S110 | VALEO |
| UD102862A | AS-PL |
| UD21107A | AS-PL |
Video/Publications
