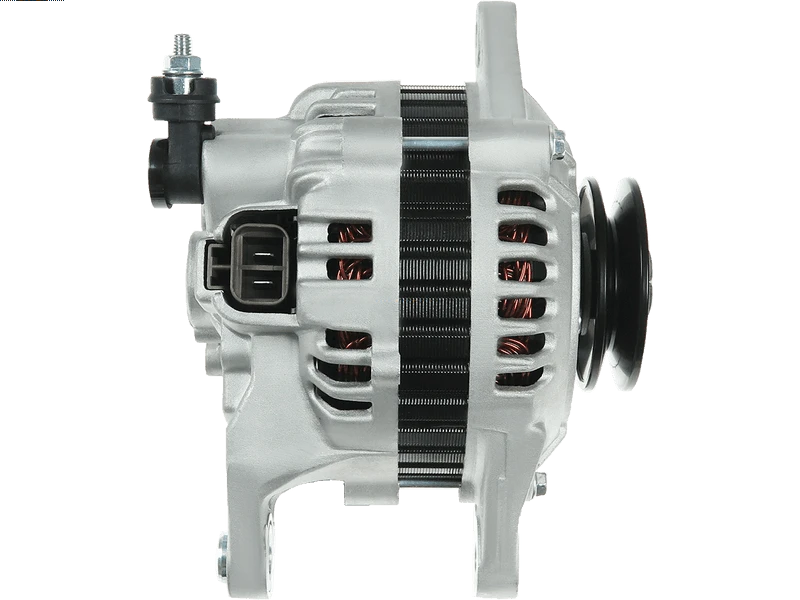

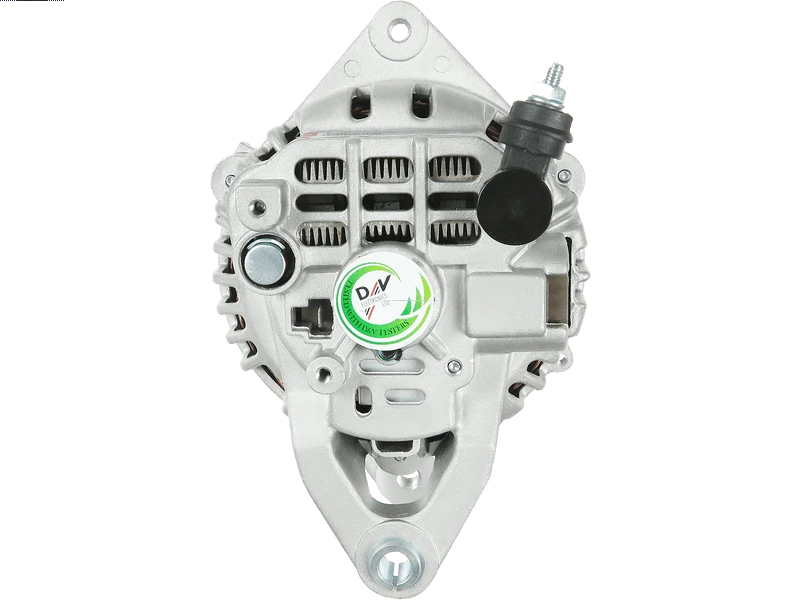

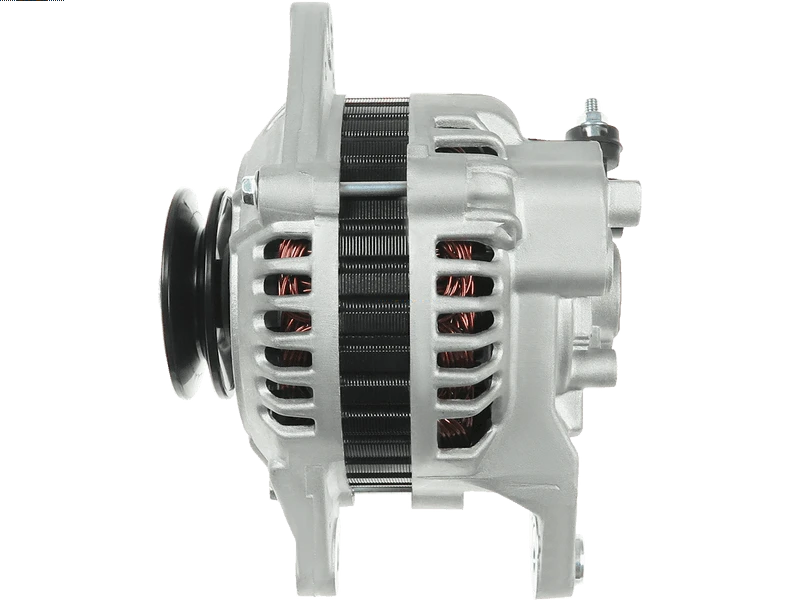

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 418.37 including GST
NZ$ 363.80 excluding GST
or four payments of $104.59
with
Learn More
each
A5426S
1
Specifications
| Amp | 60 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | M10x1.25 mm |
| Diameter (D.3) | 10.50 mm |
| Length (L.1) | 159 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 9.50 mm |
| Pulley Outside Diameter (O.D.1) | 45 mm |
| Pulley Outside Diameter (O.D.2) | 71 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 323 1.3 | [E3] | 08.1985-05.1989 |
| MAZDA | 323 1.3 i | [B3E] | 09.1985-08.1989 |
| MAZDA | 323 1.4 | [B3] | 04.1987-07.1989 |
| MAZDA | 323 1.4 | [B3] | 09.1987-10.1989 |
| MAZDA | 323 1.5 | [B5] | 01.1987-05.1989 |
| MAZDA | 323 1.5 | [B5] | 09.1987-10.1989 |
| MAZDA | 323 1.5 | [B50] | 01.1987-05.1989 |
| MAZDA | 323 1.5 | [B50] | 05.1986-05.1989 |
| MAZDA | 323 1.5 | [B53] | 01.1987-05.1989 |
| MAZDA | 323 1.5 | [B53] | 05.1986-05.1989 |
| MAZDA | 323 1.5 | [E5] | 05.1986-05.1989 |
| MAZDA | 323 1.5 | [E5] | 08.1985-05.1989 |
| MAZDA | 323 1.5 i | [E5E3] | 08.1985-05.1989 |
| MAZDA | 323 1.5 i Turbo | [E5E2] | 08.1985-05.1989 |
| MAZDA | 323 1.6 | [B65M] | 09.1986-10.1995 |
| MAZDA | 323 1.6 | [B68] | 09.1987-10.1989 |
| MAZDA | 323 1.6 | [B6E] | 09.1986-10.1995 |
| MAZDA | 323 1.6 | [B6(SOHC)] | 09.1986-10.1995 |
| MAZDA | 323 1.6 | 06.1986-03.1987 | |
| MAZDA | 323 1.6 GT | [B6(SOHC)] | 01.1986-12.1988 |
| MAZDA | 323 1.6 GT | [B6(SOHC)] | 08.1985-08.1993 |
| MAZDA | 323 1.6 GT | [B6(SOHC)] | 09.1987-10.1989 |
| MAZDA | 323 1.6 GT | [B6(SOHC)] | 11.1986-10.1989 |
| MAZDA | 323 1.6 GT Turbo | [B6T] | 10.1985-08.1993 |
| MAZDA | 323 1.6 GT Turbo | [B6T] | 10.1985-11.1991 |
| MAZDA | 323 1.6 GT Turbo 4WD | [B6F2] | 08.1987-10.1989 |
| MAZDA | 323 1.6 GT Turbo 4WD | [B6T] | 10.1987-11.1991 |
Reference Information
| 002M921 | ASHIKA |
| 0120484035 | BOSCH |
| 0986036331 | BOSCH |
| 0986037701 | BOSCH |
| 112297 | CARGO |
| 145.507.060.130 | PSH |
| 145.507.060.215 | PSH |
| 145.507.060.265 | PSH |
| 14905 | DIXIE |
| 14905N | WAI / TRANSPO |
| 20137411BN | REAL |
| 2035114.0 | SANDO |
| 219053 | DELCO |
| 28-1511 | ELSTOCK |
| 40173RI | KUHNER |
| 40599RI | KUHNER |
| 445222 | LOGISTIK |
| 56372 | EAI |
| 8EL726318001 | HELLA |
| 90-27-3038 | WILSON |
| 9120690380 | BOSCH |
| 9179 | CEVAM |
| 943346072010 | MAGNETI MARELLI |
| 944390513210 | MAGNETI MARELLI |
| A002T05572 | MITSUBISHI |
| A002T05772 | MITSUBISHI |
| A002T05772X | MITSUBISHI |
| A002T07572 | MITSUBISHI |
| A005T00972 | MITSUBISHI |
| A005T01271 | MITSUBISHI |
| A2T05572 | MITSUBISHI |
| A2T05772 | MITSUBISHI |
| A2T05772X | MITSUBISHI |
| A2T07572 | MITSUBISHI |
| A5426S | AS-PL |
| A5T00972 | MITSUBISHI |
| A5T01271 | MITSUBISHI |
| AB150017 | MITSUBISHI |
| AEA5147 | AUTOELECTRO |
| ALT0466 | 3EFFE |
| ALTL573 | 3EFFE |
| ALTW213 | 3EFFE |
| B11318300 | MAZDA |
| B11318300A | MAZDA |
| B11518300 | MAZDA |
| B64J18300A | MAZDA |
| B67513300 | MAZDA |
| B67513300A | MAZDA |
| B675-18-300 | MAZDA |
| B675-18-300A | MAZDA |
| B67518300B | MAZDA |
| B67518300C | MAZDA |
| B675-18-300D | MAZDA |
| B67518300E | MAZDA |
| B67518300R | MAZDA |
| B68518300 | MAZDA |
| CAL35114AS | CASCO |
| CGB-13027 | AINDE |
| DRA3027 | DELCO |
| E8GY10346 | MAZDA |
| F032112297 | CARGO |
| J5113021 | HERTH+BUSS |
| JA173IR | HC PARTS |
| LRA00547 | LUCAS |
| LRA0547 | LUCAS |
| MAR6072 | MAGNETI MARELLI |
| MRA51321 | MAGNETI MARELLI |
| PRAW213 | 3EFFE |
| STX101176 | STARDAX |
| STX101236 | STARDAX |
| STX102087 | STARDAX |
| UD21153A | AS-PL |
