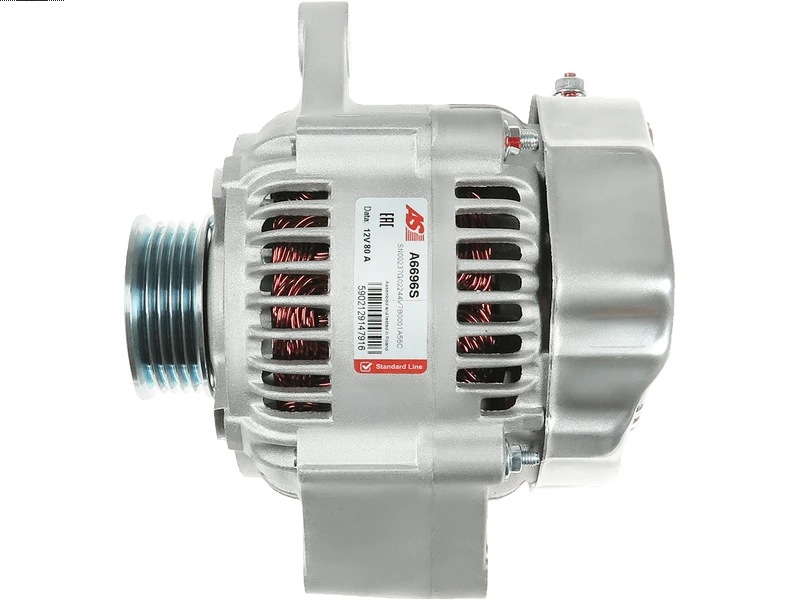

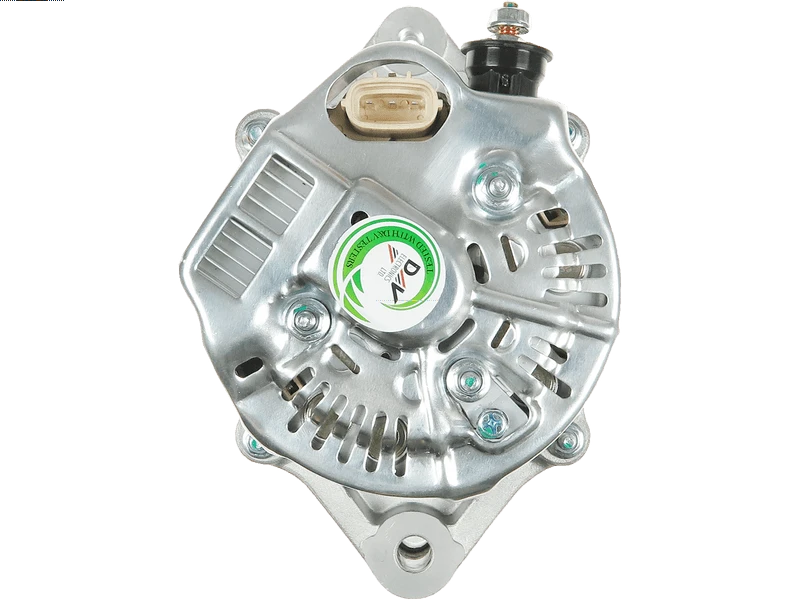

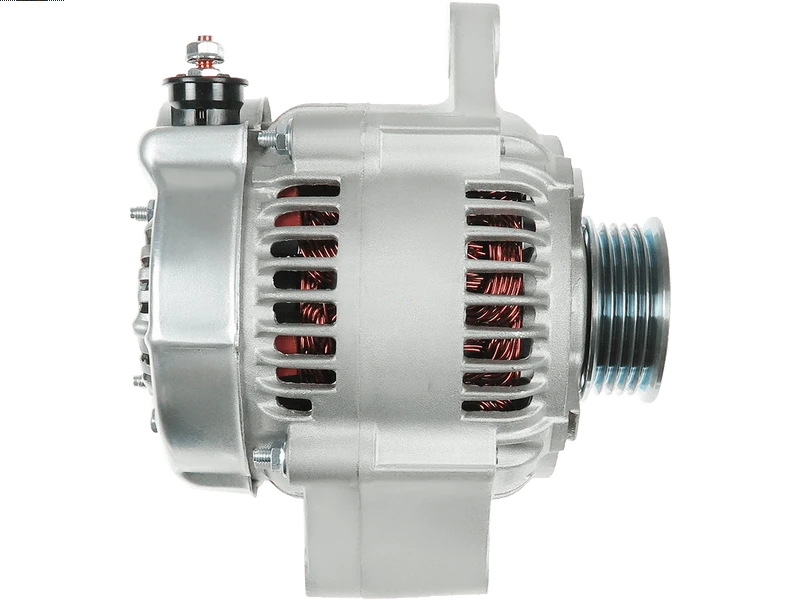

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 389.98 including GST
NZ$ 339.11 excluding GST
or four payments of $97.50
with
Learn More
each
A6696S
2
Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 57.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 162 mm |
| OEM Product | No |
| Plug Code | PL_3302 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | Aerio 2.0 | 01.2002-12.2003 | |
| SUZUKI | Aerio 2.3 | 01.2004-12.2007 |
Reference Information
| 102211-1750 | DENSO |
| 104210-8120 | DENSO |
| 11086N | WAI / TRANSPO |
| 11086R | WAI / TRANSPO |
| 15488 | DIXIE |
| 15488N | DIXIE |
| 31400-77E30 | SUZUKI |
| 90-29-5553 | WILSON |
| 90-29-5553N | WILSON |
| A6696S | AS-PL |
| UD21088A | AS-PL |
| UD21109A | AS-PL |
