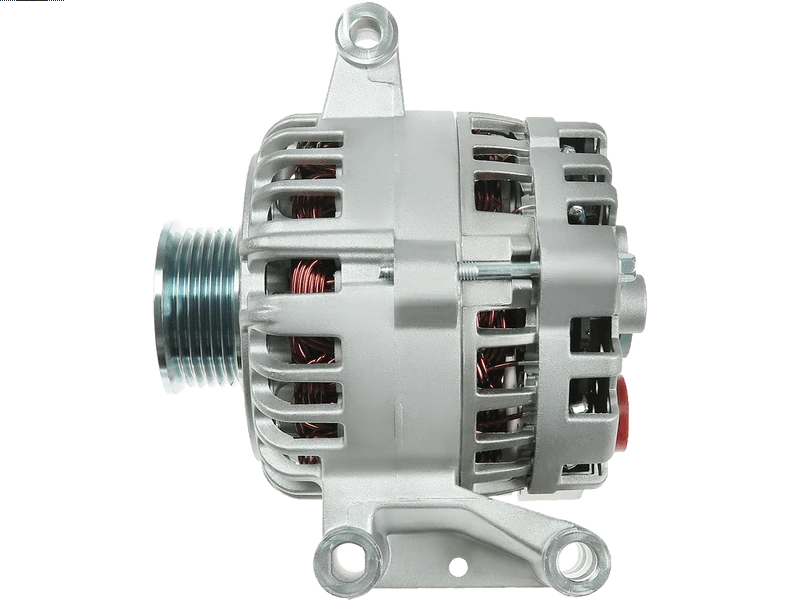

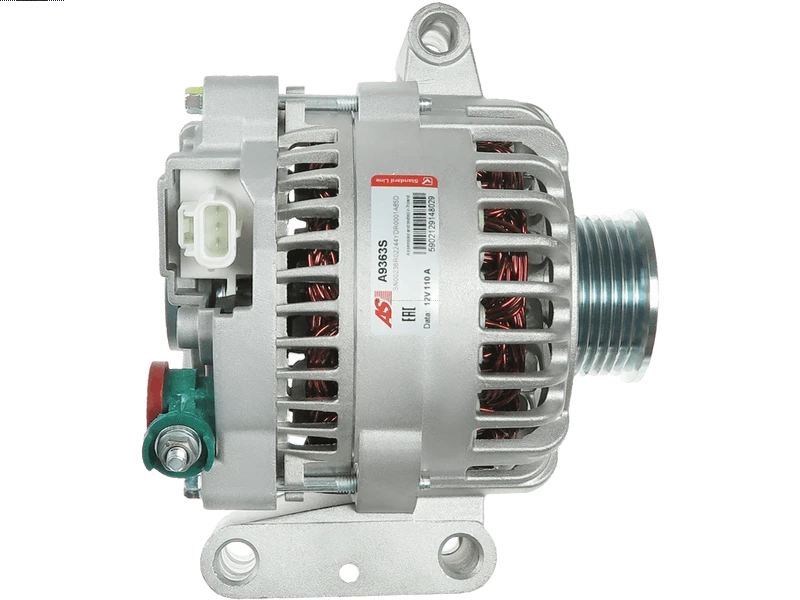

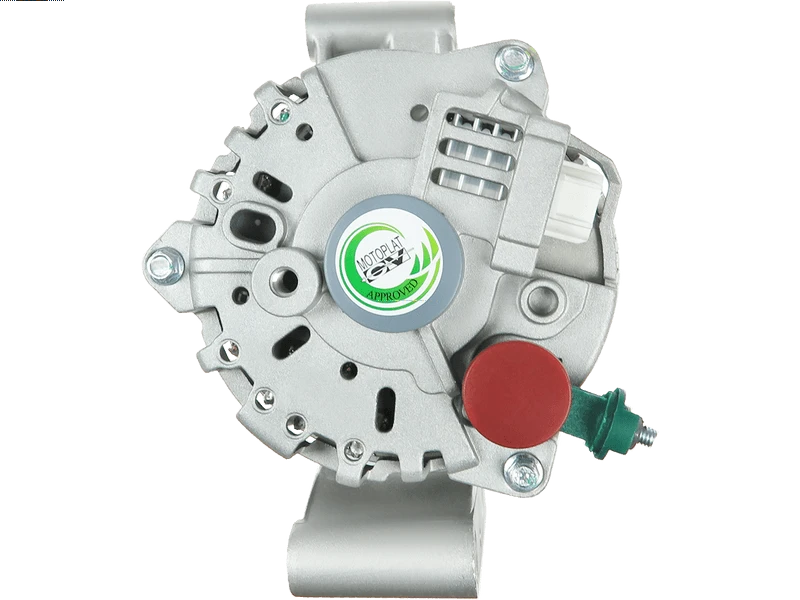

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
FORD
Price:
NZ$ 339.65 including GST
NZ$ 295.35 excluding GST
or four payments of $84.91
with
Learn More
each
A9363S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 110 A |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 74 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 55 mm |
| Pad mount thickness (E.2) | 55 mm |
| Plug Code | PL_3402 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56.50 mm |
| Pulley to Mount Distance (A) | 39 mm |
| Pulley Type | Solid |
| Unit Type | FORD |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Focus 2.0 | 01.2005-12.2007 | |
| FORD | Focus 2.3 | 01.2007-12.2007 |
Reference Information
| 15423N | DIXIE |
| 4S4T-10300-AC | FORD |
| 4S4-TAC | FORD |
| 4S4Z-10346-AB | FORD |
| 5S4T-10300-AB | FORD |
| 5S4T-10300-AC | FORD |
| 5S4T-AB | FORD |
| 5S4T-AC | FORD |
| 5S4Z-10346-A | FORD |
| 6S4T-10300-AD | FORD |
| 6S4T-AD | FORD |
| 6S4Z-10346-AA | FORD |
| 6S4Z-10V346-ABRM | FORD |
| 6S4Z-10V346-BBRM | FORD |
| 6S4Z-10V346-BCRM | FORD |
| 6U2Z-10V346-CARM | FORD |
| 7S4T-10300-AA | FORD |
| 7S4T-AA | FORD |
| 7S4Z-10346-A | FORD |
| 7S4Z-10346-AARM | FORD |
| 8406N | WAI / TRANSPO |
| 90-02-5159 | WILSON |
| A9363S | AS-PL |
| ALT42491 | WOODAUTO |
| RM6U2J-10D309-FC | FORD |
| RM6U2J-10D309-JC | FORD |
| UD21086A | AS-PL |
Video/Publications
