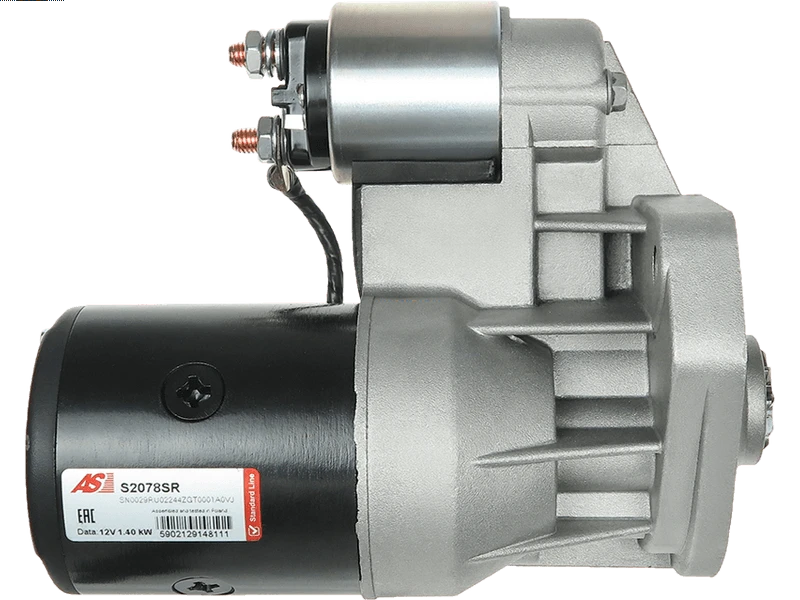

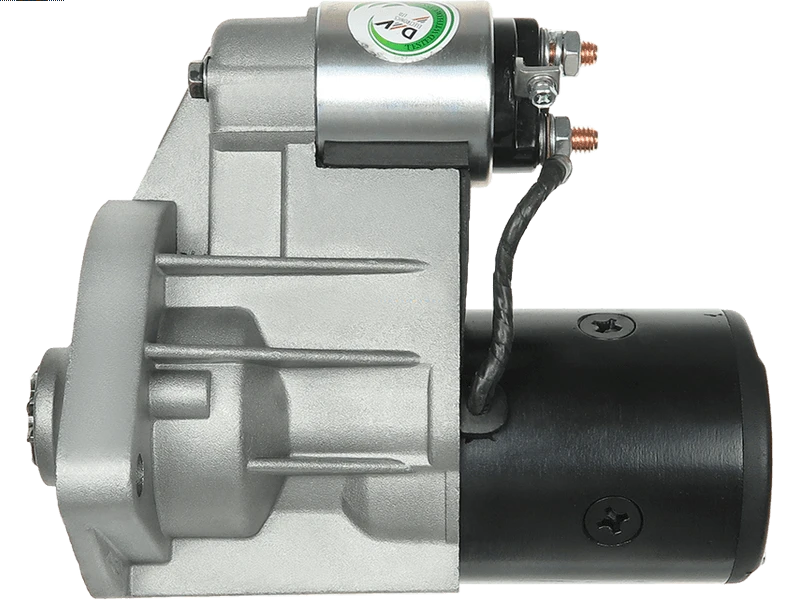

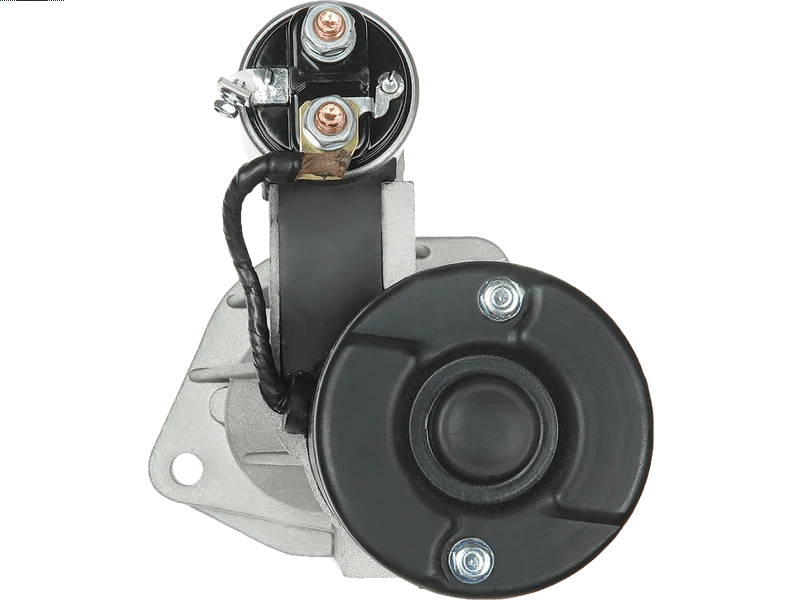

Remanufactured AS-PL Starter motor
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 243.28 including GST
NZ$ 211.55 excluding GST
or four payments of $60.82
with
Learn More
each
S2078SR
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 204 mm |
| Mount Hole Center - Center (O.1) | 118 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 19 mm |
| Product Line | Standard Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 78 mm |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Corsa 1.5 TD | [15DT(T4EC1)] | 02.1988-03.1993 |
| OPEL | Corsa 1.5 TD | [15DT(T4EC1)] | 03.1988-03.1993 |
| OPEL | Corsa 1.5 TD | [15TD] | 03.1993-09.2000 |
| OPEL | Corsa 1.5 TD | [X15TD] | 03.1993-09.2000 |
Reference Information
| 1202021 | OPEL |
| 1202033 | OPEL |
| 220048 | ERA |
| 25-2055 | ELSTOCK |
| 455886 | VALEO |
| 8971177700 | ISUZU |
| 9737 | CEVAM |
| AES4129 | AUTOELECTRO |
| DRS3189 | DELCO |
| DS4299 | DELCO |
| LRS00429 | LUCAS |
| R1040024 | GM |
| S114-480 | HITACHI |
| S114-480A | HITACHI |
| S114-480B | HITACHI |
| STR3259 | ELECTROLOG |
| STX200110 | STARDAX |
| STX200396 | STARDAX |
Video/Publications
