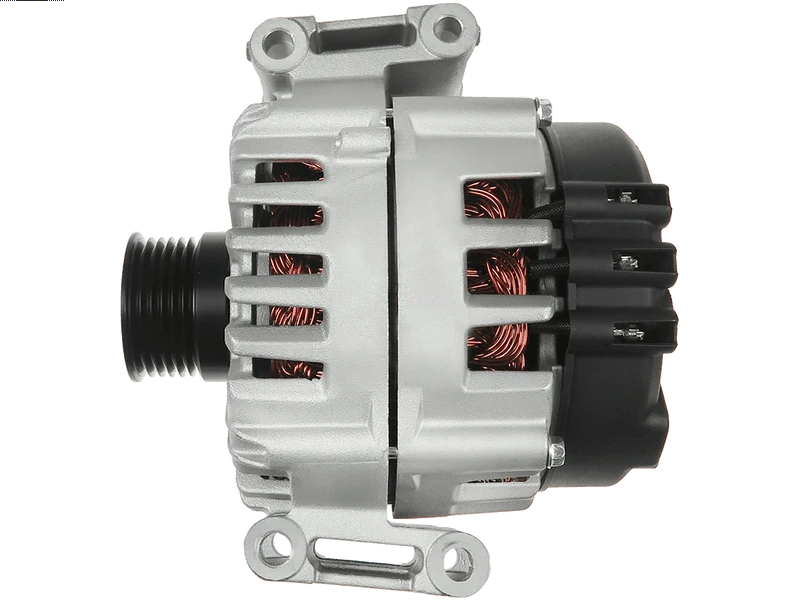

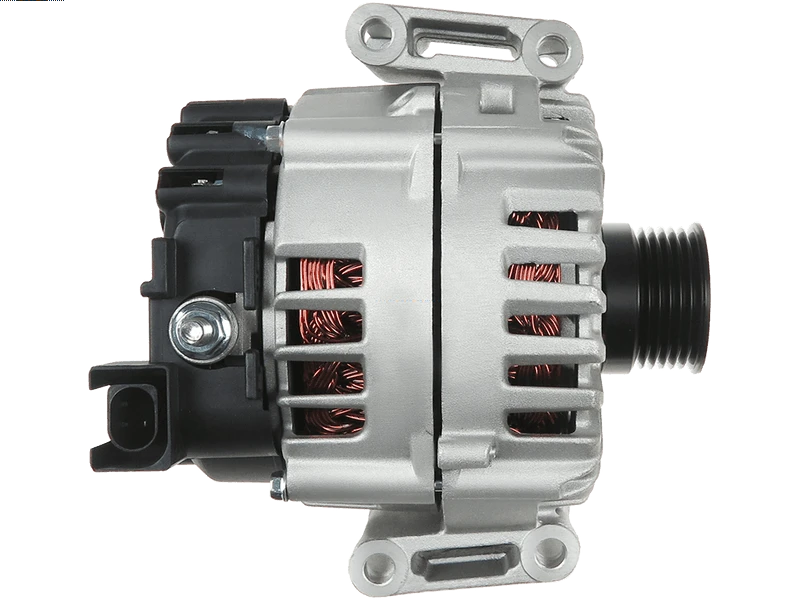

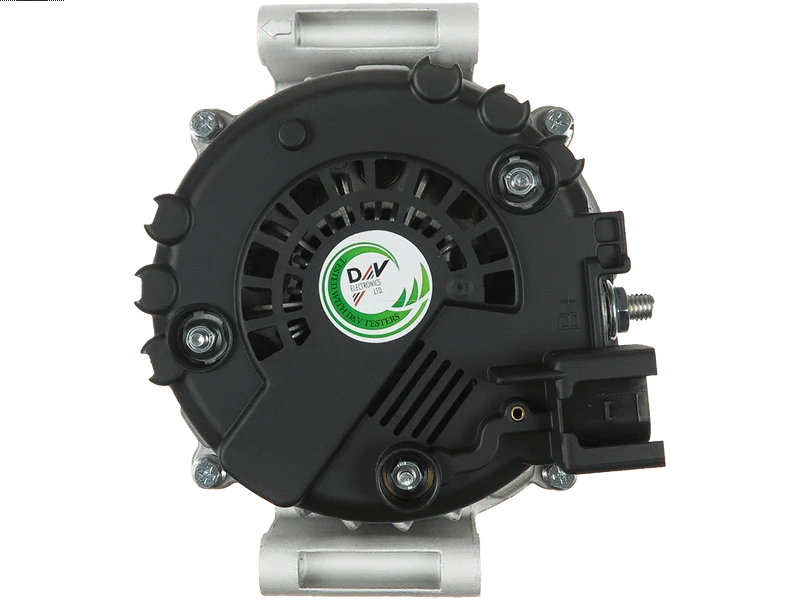

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 952.32 including GST
NZ$ 828.10 excluding GST
or four payments of $238.08
with
Learn More
each
A3613S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
FG18S046Specifications
| Amp | 180 A |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 9.50 mm |
| Diameter (D.4) | 8 mm |
| Length (L.1) | 188 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49.50 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 300 3.5 4-Matic | (W204)[M276.957] | 02.2011-01.2014 |
| MERCEDES BENZ | C 350 3.5 | (C204)[M276.957] | 06.2011- |
| MERCEDES BENZ | C 350 3.5 4-Matic | (C204)[M276.957] | 09.2013- |
| MERCEDES BENZ | C 350 3.5 4-Matic | (W204)[M276.957] | 01.2011-01.2014 |
| MERCEDES BENZ | E 300 3.5 | (A207)[M276.957] | 04.2011-12.2016 |
| MERCEDES BENZ | E 300 3.5 | (C207)[M276.957] | 04.2011-06.2016 |
| MERCEDES BENZ | E 300 3.5 4-Matic | (W212)[M276.952] | 07.2011-12.2015 |
| MERCEDES BENZ | E 300 3.5 T-Model 4-Matic | (S212)[M276.952] | 07.2011-12.2016 |
| MERCEDES BENZ | E 350 3.5 | (A207)[M276.957] | 04.2011-12.2014 |
| MERCEDES BENZ | E 350 3.5 | (C207)[M276.957] | 04.2011-12.2014 |
| MERCEDES BENZ | E 350 3.5 | (W212)[M276.952] | 09.2011-12.2015 |
| MERCEDES BENZ | E 350 3.5 4-Matic | (W212)[M276.952] | 09.2011-12.2015 |
| MERCEDES BENZ | E 350 3.5 T-Model | (S212)[M276.952] | 09.2011-12.2014 |
| MERCEDES BENZ | E 350 3.5 T-Model 4-Matic | (S212)[M276.952] | 09.2011-12.2016 |
| MERCEDES BENZ | GLK 350 3.5 4-Matic | (X204)[M276.957] | 06.2008-06.2015 |
| MERCEDES BENZ | S 350 3.5 CGI 4-Matic | (W221)[M276.950] | 04.2011-12.2013 |
Reference Information
| 0141544202 | MERCEDES |
| 0986CR6094 | BOSCH |
| 10189 | DIXIE |
| 11804N | WAI / TRANSPO |
| 2015423.1 | SANDO |
| 20179324OE | REAL |
| 209174 | ERA |
| 2607380A | VALEO |
| 28-5939 | ELSTOCK |
| 32002321 | HERTH+BUSS |
| 40447 | CEVAM |
| 439717 | VALEO |
| 440307 | VALEO |
| 55151232 | MEAT & DORIA |
| 553448RIV | KUHNER |
| 555.597.180.004 | PSH |
| 555.597.180.500 | PSH |
| 555.597.180.501 | PSH |
| 555.597.180.505 | PSH |
| 57478 | EAI |
| 89215593 | POWERMAX |
| 8EL012240-301 | HELLA |
| 90-22-5669 | WILSON |
| A0141544202 | MERCEDES |
| A12VA0955AS | SIDAT |
| A133.734 | PSH |
| A147.163 | PSH |
| A3613S | AS-PL |
| A-9643 | DIXIE |
| AL9374X | BOSCH |
| ALT00015 | ELECTROLOG |
| ALT14438 | WOODAUTO |
| ALTE479 | 3EFFE |
| ALV8046 | KRAUF |
| CAL15423GS | CASCO |
| DA1875 | DELCO |
| DRA0765 | DELCO |
| FG18S046 | VALEO |
| FGN18S046 | VALEO |
| LRA03327 | LUCAS |
| LRA3327 | LUCAS |
| PRAE479 | 3EFFE |
| STX102186 | STARDAX |
| UD19564A | AS-PL |
| VAL439717 | WOODAUTO |
Video/Publications
