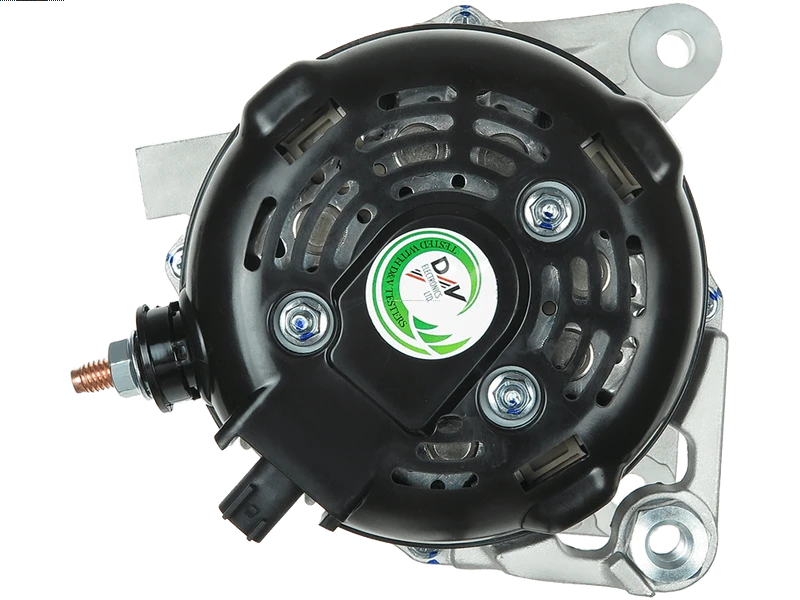

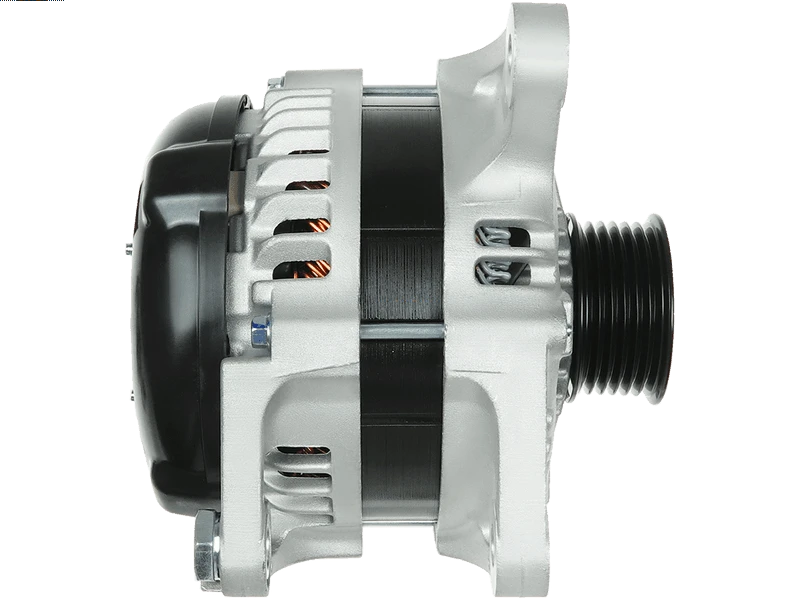

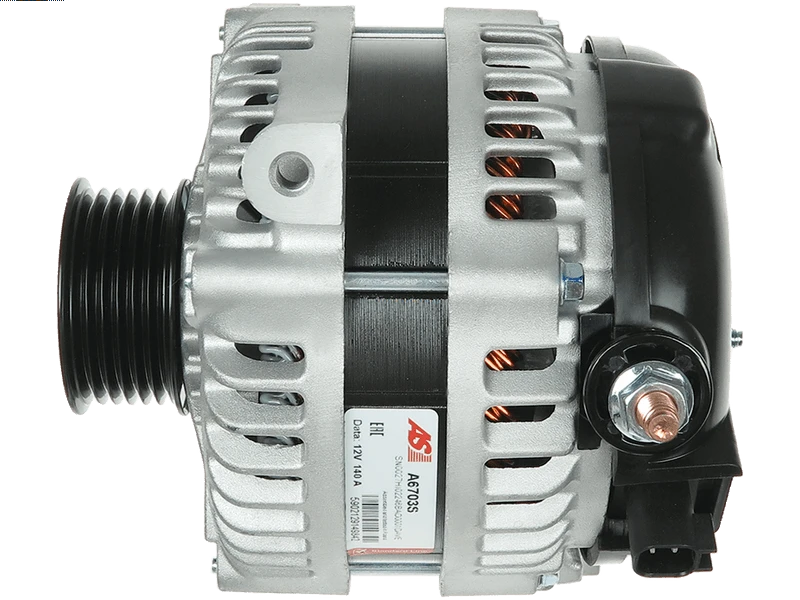

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 462.14 including GST
NZ$ 401.86 excluding GST
or four payments of $115.54
with
Learn More
each
A6420S
A6703S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
421000-0560Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 157 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.50 mm |
| OEM Product | No |
| Plug Code | PL_2804 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 53 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Grand Voyager 3.8 | [EGL] | 10.2007- |
| JEEP | Wrangler 3.8 | [EGT] | 04.2007- |
| JEEP | Wrangler 3.8 | [EGT] | 04.2007-12.2011 |
| JEEP | Wrangler 3.8 RWD | [EGT] | 10.2007-09.2010 |
Reference Information
| 04727865AB | CHRYSLER |
| 04801304AC | CHRYSLER |
| 0986UR0689 | BOSCH |
| 0986UR6292 | BOSCH |
| 11294N | WAI / TRANSPO |
| 27-7593 | ELSTOCK |
| 40171 | CEVAM |
| 421000-0540 | DENSO |
| 421000-0541 | DENSO |
| 421000-0542 | DENSO |
| 421000-0560 | DENSO |
| 421000-0561 | DENSO |
| 421000-0562 | DENSO |
| 446242 | LOGISTIK |
| 4727865AB | CHRYSLER |
| 4801304AC | CHRYSLER |
| 835.952.140.050 | PSH |
| 89216317 | POWERMAX |
| 90-29-5699 | WILSON |
| 90-29-5699N | WILSON |
| AL6462X | BOSCH |
| AL6477X | BOSCH |
| ALT6442 | ELECTROLOG |
| LRA03983 | LUCAS |
| LRA3983 | LUCAS |
| R4727865AB | CHRYSLER |
| STX110362 | STARDAX |
| STX110362R | STARDAX |
| UD21241A | AS-PL |
Video/Publications
