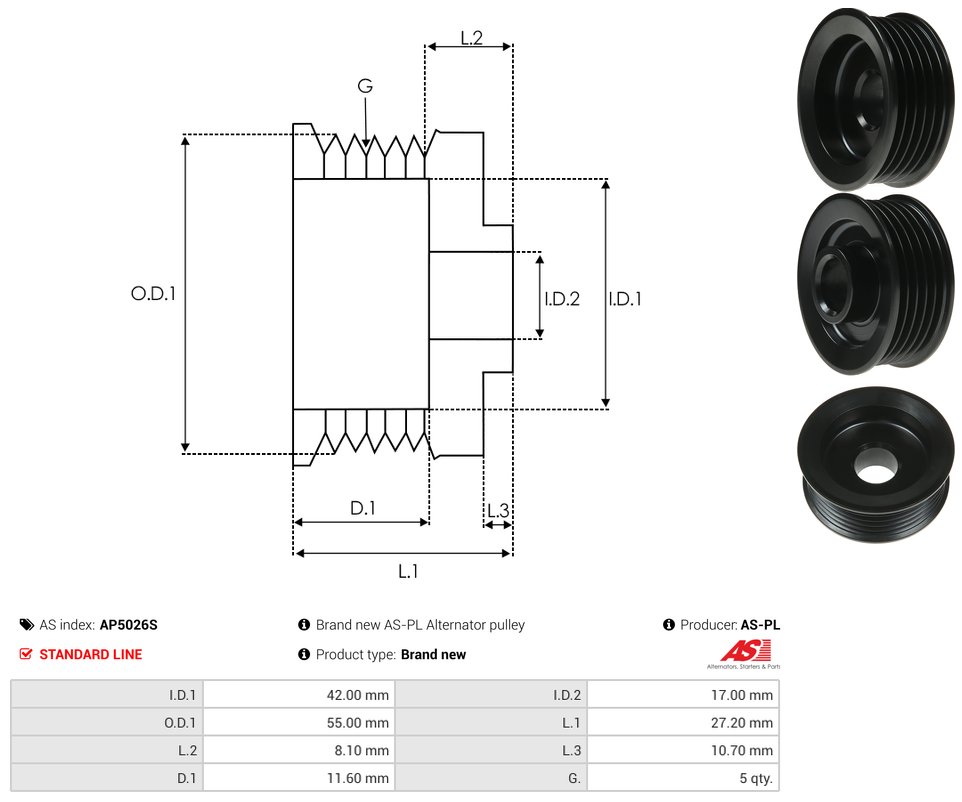

Specifications
Depth (D.1) | 11.6 mm |
Grooves | 5 qty |
Inside Diameter (I.D.1) | 42 mm |
Inside Diameter (I.D.2) | 17 mm |
Length 3 (L.3) | 10.7 mm |
Length (L.1) | 27.2 mm |
Length (L.2) | 8.1 mm |
Outside Diameter (O.D.1) | 55 mm |
Unit Type | MITSUBISHI |
Reference Information
31171-65D00 PUL5067 UD41824AP A630X89870 APM1554 331554 UD52293APVideo/Publications
31171-65D00 A005TG2191ZE A005TB1292AE A5TL0092B UD41824AP APM1554 A5TG0291 A5TA4291 A5049 331554 A5TG2591 A005TB1292 A5254 A005TG0291 A5294 A5387S A003TG1291 A5TB1292 A3TG1291 A5TG2191ZE A5TB1292AE A005TG2191 A005TG0091 A005TB0391 A5TG0091 A5TG2191 A005TA4291 A5080 A5TB0391 A630X89870Add Your Number
