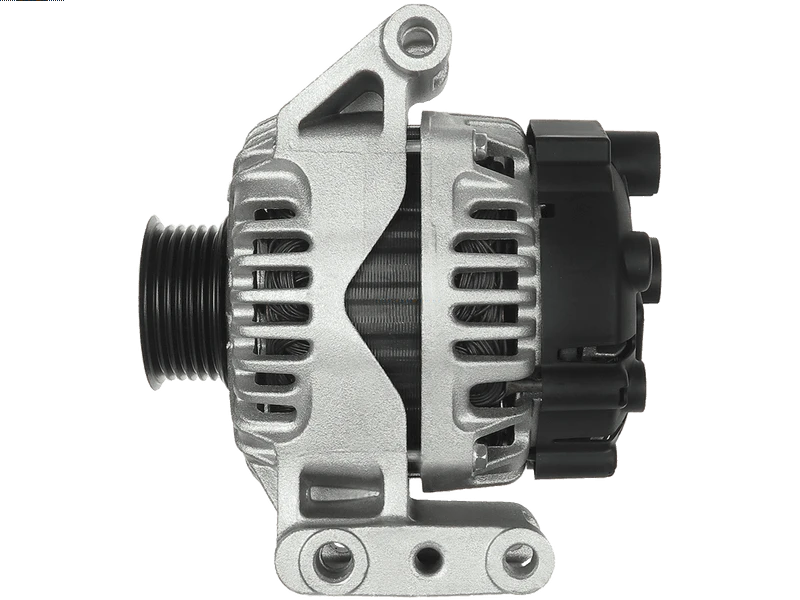

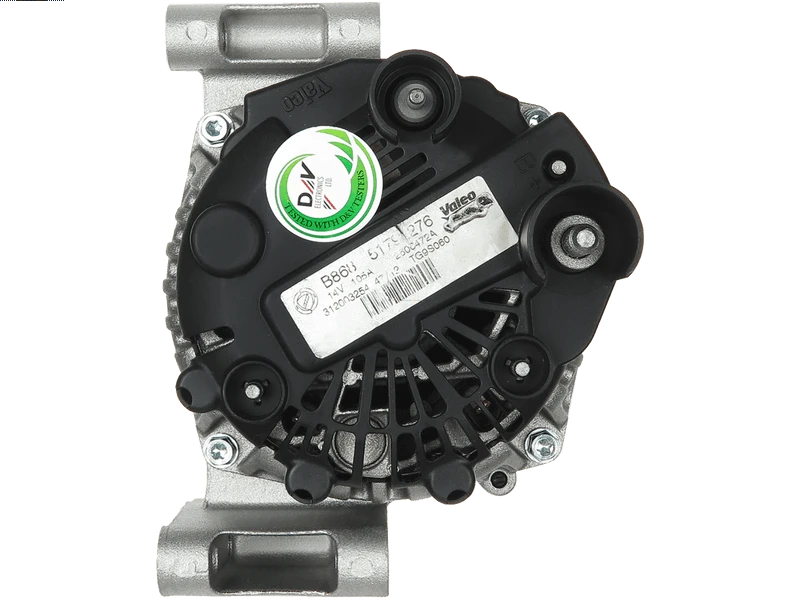

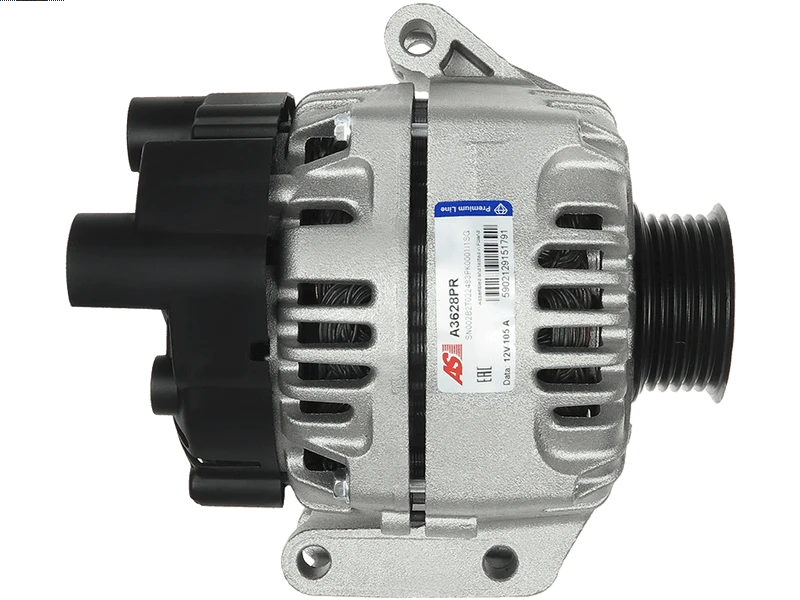

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
VALEO
Price:
NZ$ 394.25 including GST
NZ$ 342.83 excluding GST
or four payments of $98.56
with
Learn More
each
A3628PR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 105 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Length (L.1) | 177 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 40.50 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | Nemo 1.3 HDi 75 | [FHZ(F13DTE5)] | 10.2010- |
| FIAT | Fiorino 1.3 D Multijet | [199A2.000] | 11.2007- |
| FIAT | Fiorino 1.3 D Multijet | [199A9.000] | 11.2007- |
| FIAT | Fiorino 1.3 D Multijet | [199B1.000] | 07.2009- |
| FIAT | Fiorino 1.3 D Multijet | [225A2.000] | 03.2015- |
| FIAT | Fiorino 1.3 D Multijet | [330A1.000] | 07.2009- |
| FIAT | Fiorino 1.3 D Multijet | [55283775] | 03.2015- |
| FIAT | Fiorino JTD Multijet | [199A2.000] | 11.2007- |
| FIAT | Fiorino JTD Multijet | [199A9.000] | 11.2007- |
| FIAT | Fiorino JTD Multijet | [199B1.000] | 01.2011- |
| FIAT | Grande Punto 1.3 D Multijet | [199A2.000] | 10.2005- |
| FIAT | Grande Punto 1.3 JTD Multijet | [199A2.000] | 02.2006-06.2013 |
| FIAT | Panda 1.3 D Multijet | [199A1.000] | 02.2012- |
| FIAT | Panda 1.3 D Multijet | [199A9.000] | 02.2012- |
| FIAT | Panda 1.3 D Multijet | [199B1.000] | 04.2015- |
| FIAT | Panda 1.3 D Multijet | [312B1.000] | 04.2015- |
| FIAT | Panda 1.3 D Multijet | [330A1.000] | 04.2015- |
| FIAT | Panda 1.3 D Multijet 4x4 | [199A1.000] | 06.2012- |
| FIAT | Panda 1.3 D Multijet 4x4 | [199A9.000] | 06.2012- |
| FIAT | Panda 1.3 D Multijet 4x4 | [199A9.000] | 06.2014- |
| FIAT | Panda 1.3 D Multijet 4x4 | [199B1.000] | 04.2015- |
| FIAT | Panda 1.3 D Multijet 4x4 | [225A2.000] | 06.2014- |
| FIAT | Panda 1.3 D Multijet 4x4 | [312A8.000] | 06.2014- |
| FIAT | Panda 1.3 D Multijet 4x4 | [312B1.000] | 04.2015- |
| FIAT | Panda 1.3 D Multijet 4x4 | [312B2.000] | 06.2014- |
| FIAT | Panda 1.3 D Multijet 4x4 | [330A1.000] | 04.2015- |
| FIAT | Qubo 1.3 D Multijet | [225A2.000] | 03.2015- |
| PEUGEOT | Bipper 1.3 HDi 75 | [FHZ(F13DTE5)] | 10.2010- |
| PEUGEOT | Bipper 1.3 HDi 75 Tepee | [FHZ(F13DTE5)] | 10.2010- |
| PEUGEOT | Bipper 1.3 HDi 80 Tepee | [FHY(F13DTE6)] | 12.2015- |
Reference Information
| 063377025010 | MAGNETI MARELLI |
| 063731585210 | MAGNETI MARELLI |
| 115668 | CARGO |
| 1616323180 | PEUGEOT |
| 20097N | WAI / TRANSPO |
| 2015563.1 | SANDO |
| 20179365OE | REAL |
| 209240 | ERA |
| 2606472 | VALEO |
| 2606472A | VALEO |
| 2623609A | VALEO |
| 28-5928 | ELSTOCK |
| 40096 | CEVAM |
| 439706 | VALEO |
| 440297 | VALEO |
| 505.563.105.000 | PSH |
| 505.563.105.500 | PSH |
| 505.563.105.505 | PSH |
| 51718494 | FIAT |
| 51792276 | PEUGEOT |
| 51944877 | PEUGEOT |
| 52092131 | FIAT |
| 52092134 | FIAT |
| 555179RID | KUHNER |
| 555179RIV | KUHNER |
| 5705NY | PEUGEOT |
| 57298 | EAI |
| 63377025 | MAGNETI MARELLI |
| 71796997 | FIAT |
| 71797000 | FIAT |
| 89214183 | POWERMAX |
| 8EL011712-901 | HELLA |
| A133.488 | PSH |
| A146.191 | PSH |
| A606472A | VALEO |
| ALN2271 | KRAUF |
| ALT00603 | ELECTROLOG |
| ALT175630 | SIOM |
| ALTS493 | 3EFFE |
| ALTS493V | 3EFFE |
| CAL15563GS | CASCO |
| CGB-85928 | AINDE |
| DA1487 | DELCO |
| DAN1001 | DENSO |
| DRA0377 | DELCO |
| F032115668 | CARGO |
| LRA03316 | LUCAS |
| LRA3316 | LUCAS |
| MAN7025 | MAGNETI MARELLI |
| PRAS493 | 3EFFE |
| STX102152 | STARDAX |
| TG9S060 | VALEO |
| TG9S138 | VALEO |
| VAL439706 | WOODAUTO |
