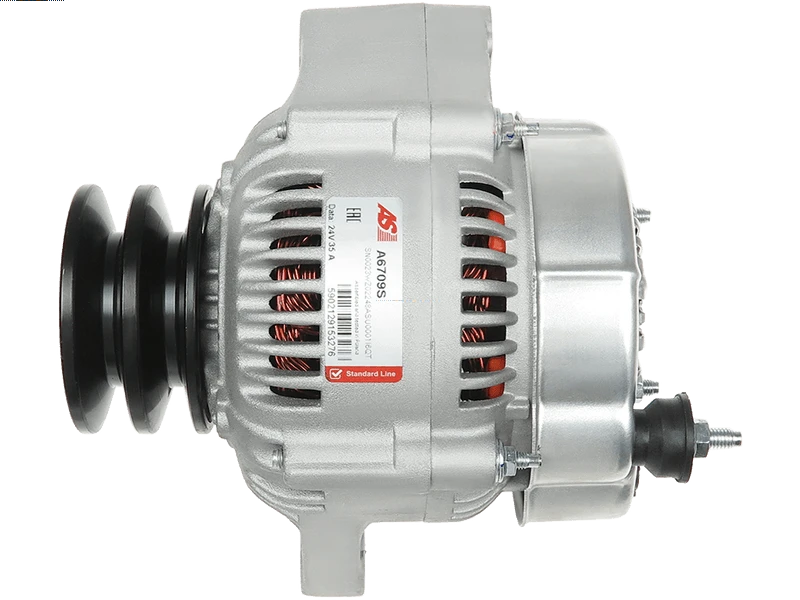

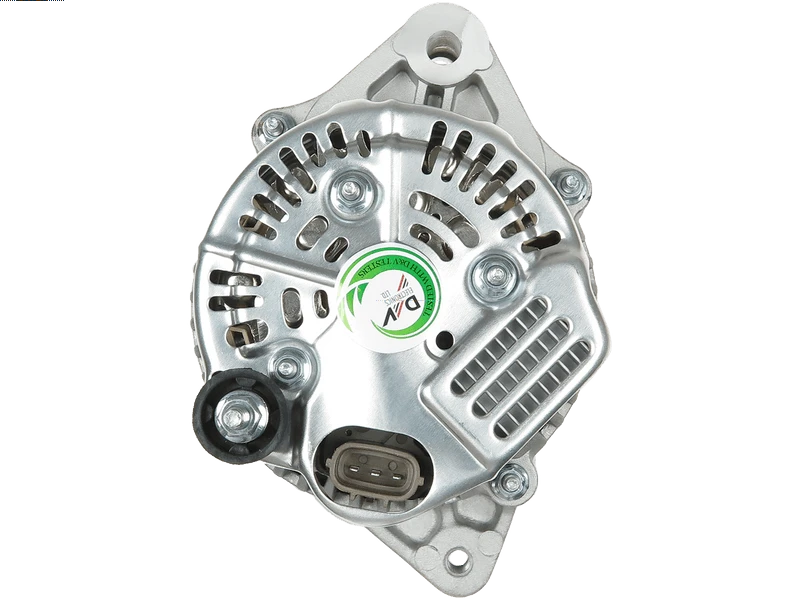

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 512.18 including GST
NZ$ 445.37 excluding GST
or four payments of $128.05
with
Learn More
each
A6709S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
102211-2850Specifications
| Amp | 35 A |
| Bottom Mounting Foot Width (B) | 57.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Length (L.1) | 187 mm |
| OEM Product | No |
| Plug Code | PL_3302 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 12 mm |
| Pulley Outside Diameter (O.D.1) | 46 mm |
| Pulley Outside Diameter (O.D.2) | 74.50 mm |
| Pulley to Mount Distance (A) | 93 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KOMATSU | PC130-7 3.3 | [SAA4D95LE] | 01.2004-12.2012 |
| KOMATSU | PC130-7K 3.3 | [SAA4D95LE] | 01.2004-12.2012 |
| KOMATSU | PC130-8 3.3 | [SAA4D95] | 01.2013-12.2018 |
| KOMATSU | PC130-8 3.3 | [SAA4D95LE] | 01.2008-12.2020 |
| KOMATSU | PC138US-10 3.3 | [SAA4D95LE] | 01.2013-12.2017 |
| KOMATSU | PC138US-2 3.3 | [SAA4D95LE] | 01.2006-12.2008 |
| KOMATSU | PC138US-8 3.3 | [SAA4D95LE] | 01.2007-12.2015 |
| KOMATSU | PC138USLC-2 3.3 | [SAA4D95LE] | 01.2004-12.2007 |
| KOMATSU | PC138USLC-8 3.3 | [SAA4D95LE] | 01.2007-12.2013 |
| KOMATSU | PC70-8 3.3 | [SAA4D95LE] | 01.2008-12.2015 |
| KOMATSU | PC78-6 | [4D95LA] | |
| KOMATSU | PC78MR-6 3.3 | [S4D95LE] | 01.2003-12.2010 |
| KOMATSU | PC78US-6 3.3 | [4D95LE] | 01.2002-12.2009 |
| KOMATSU | PC78US-6 3.3 | [S4D95LE] | 01.2002-12.2009 |
| KOMATSU | PC78US-8 3.3 | [SAA4D95LE] | 01.2008-12.2015 |
| KOMATSU | PC78UU-6 3.3 | [4D95LE] | 01.2002-12.2011 |
| KOMATSU | PC78UU-6 3.3 | [S4D95LE] | 01.2002-12.2011 |
| KOMATSU | PC78UU-8 3.3 | [SAA4D95LE] | 01.2008-12.2015 |
| KOMATSU | PC88MR-8 3.3 | [SAA4D95LE] | 01.2008-12.2017 |
| KOMATSU | PW98MR-8 3.3 | [SAA4D95LE] | 01.2012-12.2017 |
| KOMATSU | WA80-3 | [S4D95LE] | 01.2006-12.2008 |
Reference Information
| 102211-1280 | DENSO |
| 102211-2850 | DENSO |
| 102211-2851 | DENSO |
| 600-861-3610 | KOMATSU |
| 90-29-5821 | WILSON |
| 946.504.035.050 | PSH |
| 946.504.035.265 | PSH |
| 9762219-285 | DENSO |
| ALN2840 | KRAUF |
| ALT6685 | ELECTROLOG |
| UD90991A | AS-PL |
