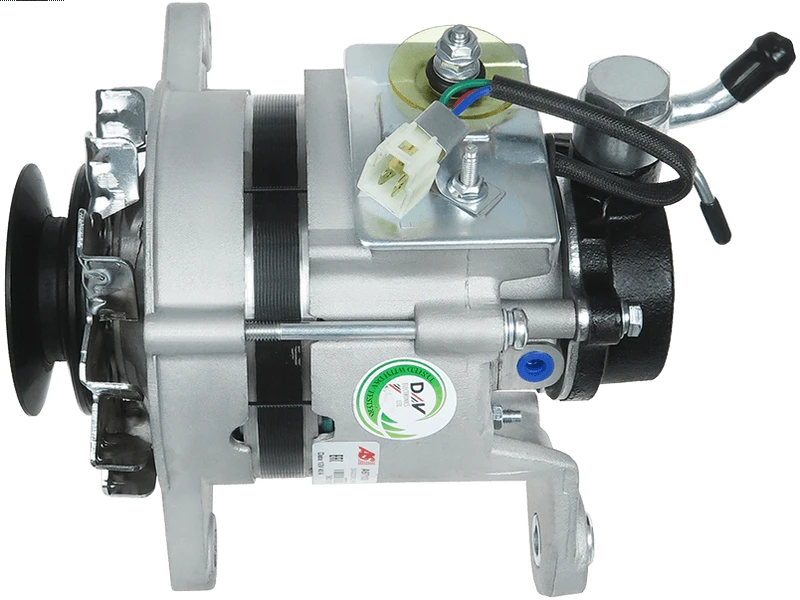

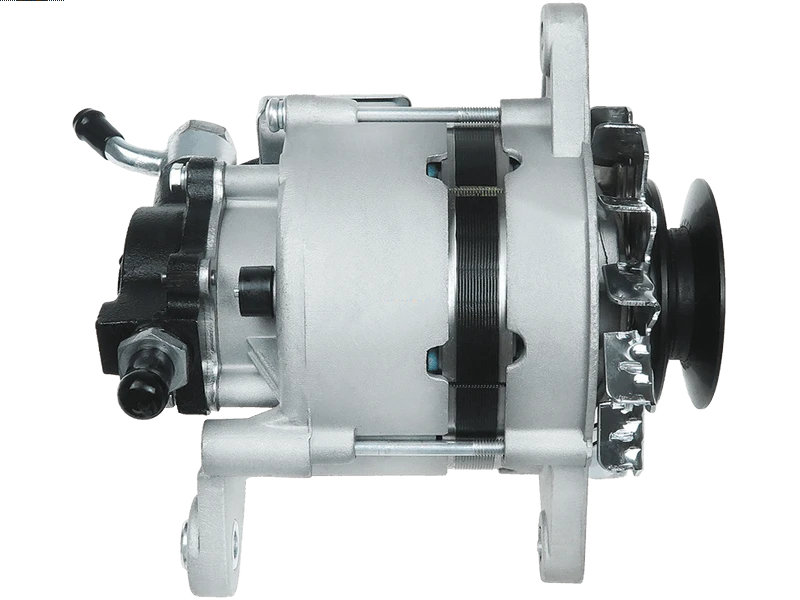

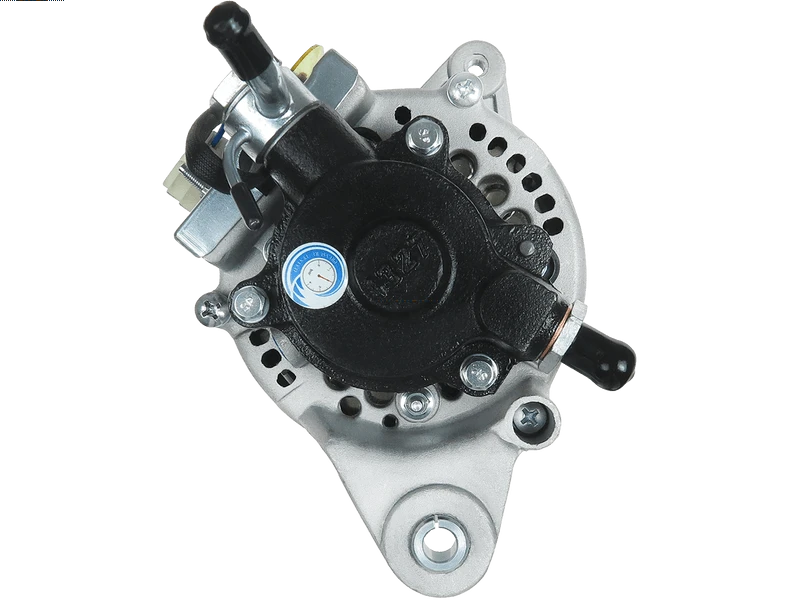

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 510.90 including GST
NZ$ 444.26 excluding GST
or four payments of $127.73
with
Learn More
each
A6710S
1
Information
100210-3280Specifications
| Amp | 45 A |
| Bottom Mounting Foot Width (B) | 14.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 238 mm |
| Mount Inside Length or Pad Mount C-C (C) | 106 mm |
| OEM Product | No |
| Plug Code | PL_3601 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 15 mm |
| Pulley Outside Diameter (O.D.1) | 47 mm |
| Pulley Outside Diameter (O.D.2) | 82 mm |
| Pulley to Mount Distance (A) | 48 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAIHATSU | Rocky 2.8 D | [DL] | 02.1985-03.1987 |
| DAIHATSU | Rocky 2.8 D | [DL] | 02.1985-12.1998 |
| DAIHATSU | Rocky 2.8 TD | [DL50] | 09.1985-04.1987 |
| DAIHATSU | Rocky 2.8 TD | [DL51] | 12.1987-04.1993 |
| DAIHATSU | Rocky 2.8 TD | [DL52] | 09.1991-12.1998 |
| DAIHATSU | Rocky 2.8 TD | [DLT] | 09.1991-12.1998 |
| DAIHATSU | Wildcat 2.8 D | [DL] | 02.1985-03.1987 |
| DAIHATSU | Wildcat 2.8 TD | [DL50] | 09.1985-04.1987 |
Reference Information
| 021000-9861 | DENSO |
| 100210-2221 | DENSO |
| 100210-2810 | DENSO |
| 100210-2840 | DENSO |
| 100210-3280 | DENSO |
| 100210-3720 | DENSO |
| 100210-3728 | DENSO |
| 100211-2841 | DENSO |
| 115.802.045.050 | PSH |
| 121000-1480 | DENSO |
| 121000-2740 | DENSO |
| 20132431BN | REAL |
| 2040134.0 | SANDO |
| 21275R | WAI / TRANSPO |
| 27020-87602 | TOYOTA |
| 27020-87603 | TOYOTA |
| 27020-87604 | TOYOTA |
| 27020-87904 | TOYOTA |
| 27030-87601 | DAIHATSU |
| 27030-87601-000 | DAIHATSU |
| 27030-87602 | DAIHATSU |
| 27030-87603 | DAIHATSU |
| 27-0919 | ELSTOCK |
| 40195 | KUHNER |
| 437809 | VALEO |
| 445244 | LOGISTIK |
| 56435 | EAI |
| 89213584 | POWERMAX |
| 8EL726-340-001 | HELLA |
| 9139 | CEVAM |
| ALN7603 | KRAUF |
| ALT6219 | ELECTROLOG |
| ALTS407 | 3EFFE |
| CAL40134AS | CASCO |
| DRA3138 | DELCO |
| LRA00544 | LUCAS |
| LRA544 | LUCAS |
| PRAS407 | 3EFFE |
| UD19461A | AS-PL |
