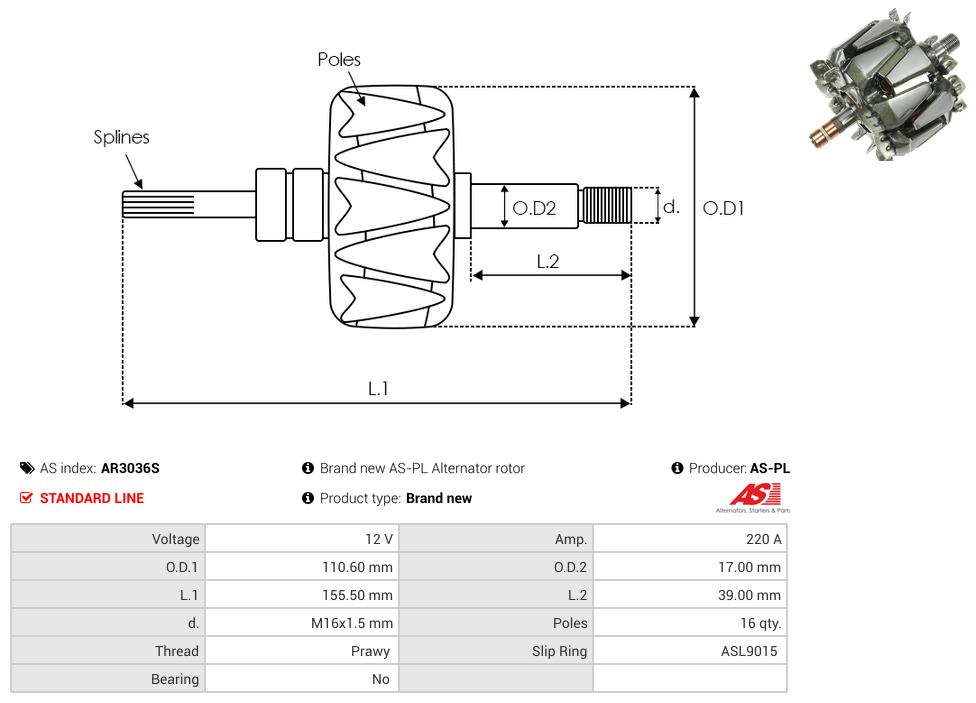

Specifications
Amp | 220 A |
Fitted with Bearing | No |
Length (L.1) | 155.5 mm |
Length (L.2) | 39 mm |
Outside Diameter (O.D.1) | 110.6 mm |
Outside Diameter (O.D.2) | 17 mm |
Poles | 16 qty |
Slip Ring to Suit | ASL9015 |
Thread Direction | Right |
Thread size & pitch (d.) | M16x1.5 mm |
Unit Type | VALEO |
Voltage | 12 V |
Reference Information
AVV5274 595274 ROT0061 UD19674ARVideo/Publications
A3115 A3277 2543443 440124 TG23C019 TG23C018 TG23C017 TG23C011 TG23C022 TG23C013 TG23C035 TG23C012 TG23C034Add Your Number
