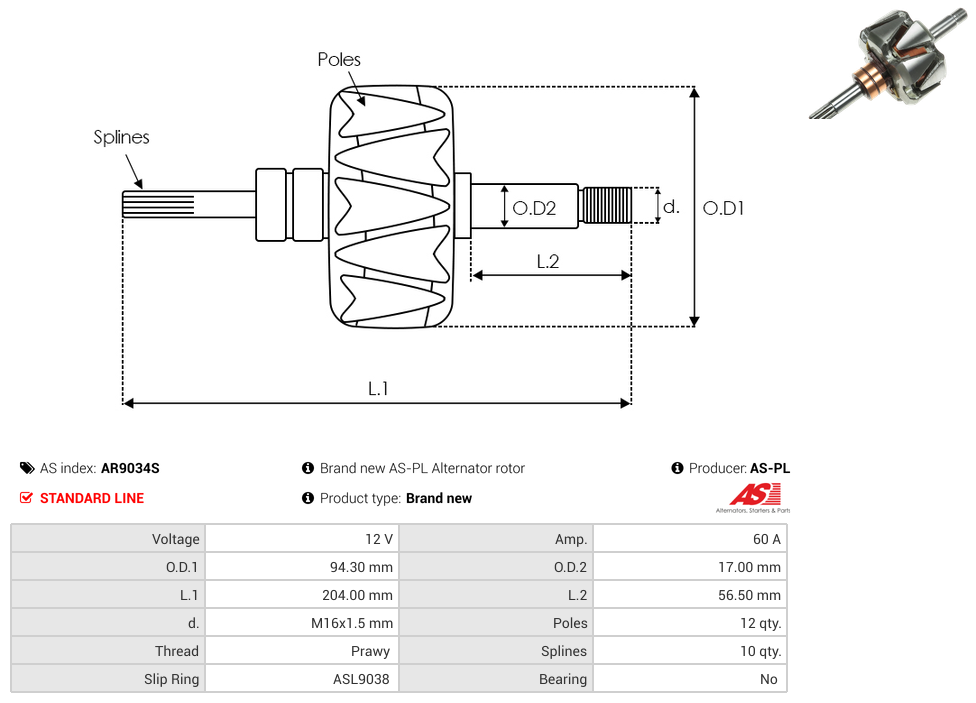

Specifications
| Amp | 60 A |
| Fitted with Bearing | No |
| Length (L.1) | 204 mm |
| Length (L.2) | 58 mm |
| No./Splines | 10 qty |
| Outside Diameter (O.D.1) | 94.2 mm |
| Outside Diameter (O.D.2) | 17 mm |
| Poles | 12 qty |
| Slip Ring to Suit | ASL9080S |
| Thread Direction | Right |
| Thread size & pitch (d.) | M16x1.5 mm |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Reference Information
UD46760AR AVY1206 ROT8709Video/Publications
373002W001 373004Z300 A9067 A9070Add Your Number
