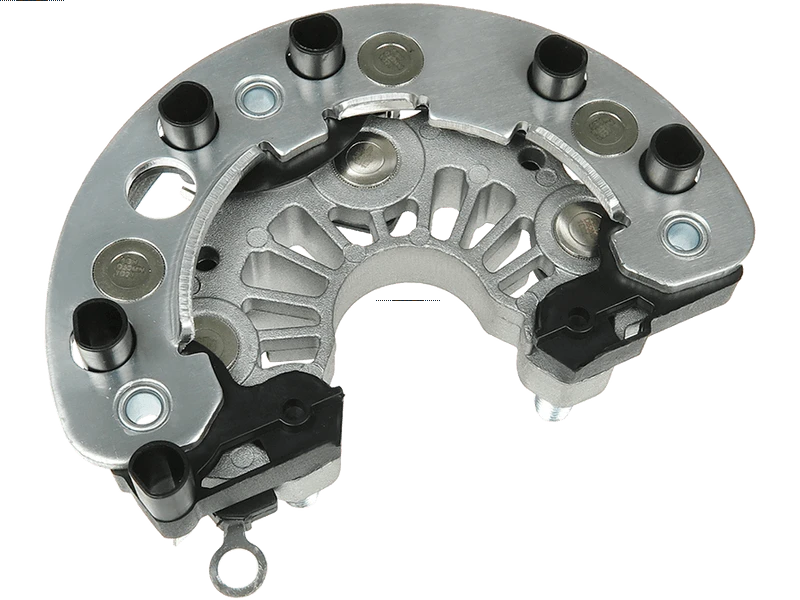

Brand new AS-PL Alternator rectifier
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 66.08 including GST
NZ$ 57.46 excluding GST
or four payments of $16.52
with
Learn More
each
ARC0253S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

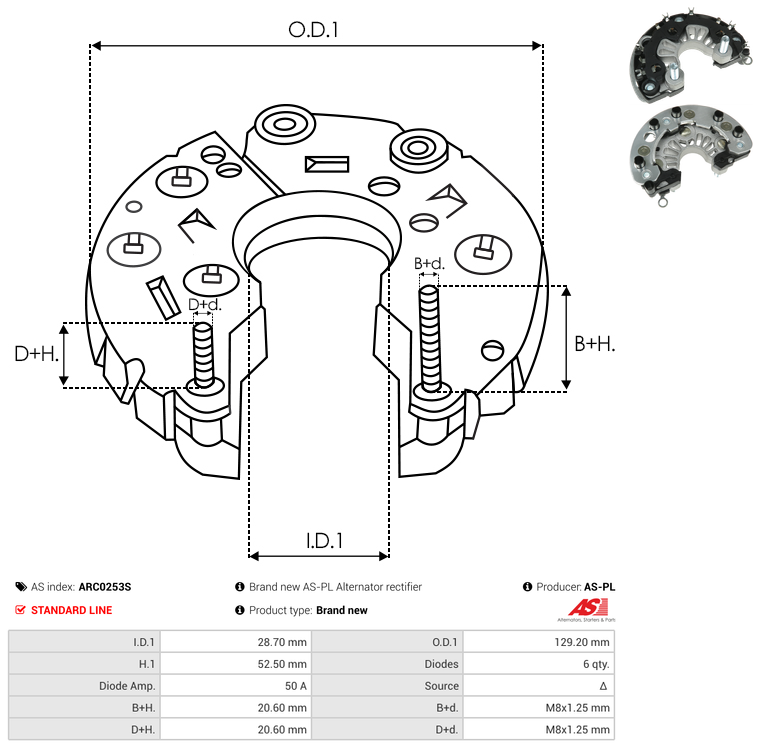

Specifications
| B+ Stud Diameter & Thread Pitch (B+d) | M8x1.25 mm |
| B+ Thread Length (B+H) | 20.60 mm |
| Diode Amp Rating | 50 A |
| Diodes (Main) | 6 qty |
| D+ Stud Diameter & Thread Pitch (D+d) | M8x1.25 mm |
| D+ Thread Height (D+H) | 20.60 mm |
| Height (H.1) | 52.50 mm |
| Inside Diameter (I.D.1) | 28.70 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 129.20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Reg/Rec Combo | No |
| Source | ∆ |
| Unit Type | BOSCH |
| With Attached Bracket | No |
Reference Information
| 053.000.283.890 | PSH |
| 216190 | ERA |
| 42557821 | IVECO |
| 42559486 | IVECO |
| 42566236 | IVECO |
| 52307 | MEAT & DORIA |
| AEB1237 | KRAUF |
| BOSF00M147638 | WOODAUTO |
| F00M133237 | BOSCH |
| F00M133340 | BOSCH |
| F00M147638 | BOSCH |
| IBR237 | WAI / TRANSPO |
| PRP570 | GHIBAUDI |
| PT0088 | 3EFFE |
| RCT1215 | ELECTROLOG |
| RTF40192 | WOODAUTO |
| UD45281ARC | AS-PL |
Video/Publications
0124515044 0124515126 0124525020 0124525064 0124525091 0124525119 0124525125 0124525130 0124525216 0124615043 0124625027 0124625031 A0075 A0147 A0190 A0190(P-INA) A0349 A0417 A0496 A0559S A0593S A0711S A0734S A0816S A0854SView your shopping basket or Browse other items in Rectifier.
