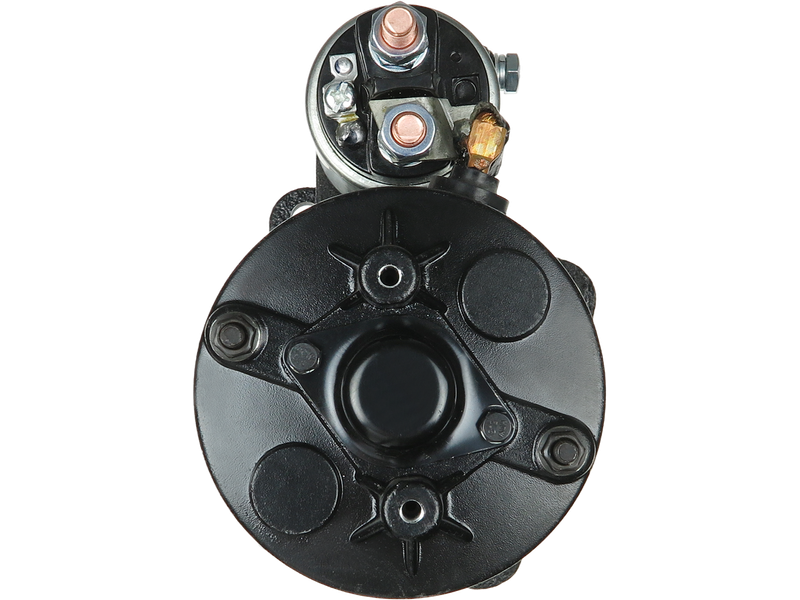

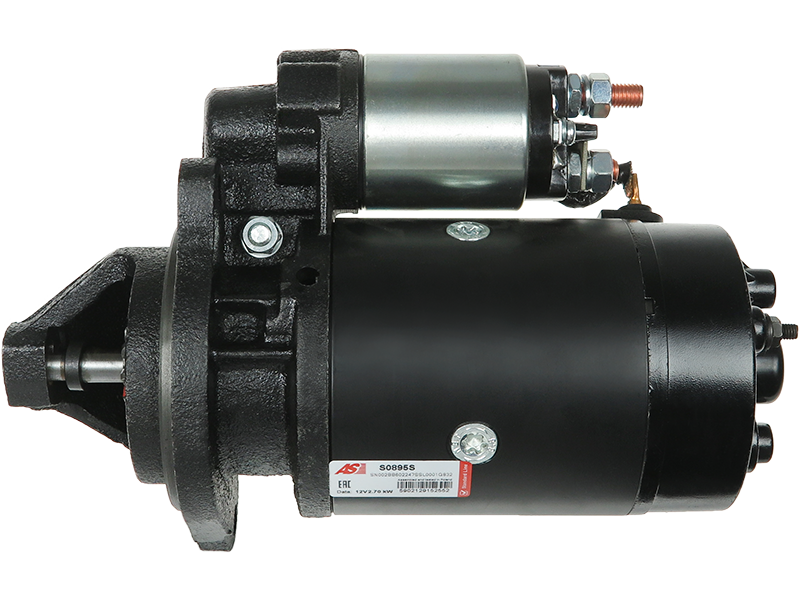

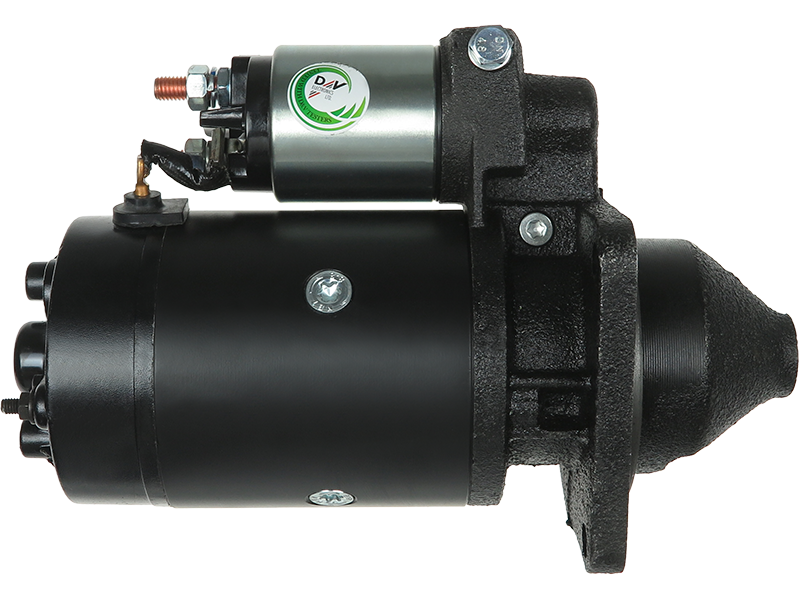

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 438.14 including GST
NZ$ 380.99 excluding GST
or four payments of $109.54
with
Learn More
UOM:
each
Product Code:
S0895S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0001362039Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 295 mm |
| Mount Hole Center - Center (O.1) | 147 mm |
| Mount Hole Center - Center (O.2) | 104 mm |
| Mount Hole Center - Center (O.3) | 104 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | 12 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 110 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALLIS CHALMERS | 5045 | 3-158 | 01.1981-12.1983 |
| ALLIS CHALMERS | 5050 | 3-168 | 01.1977-12.1983 |
| CASE IH | JX-SERIES JX 70 | 01.2007-12.2008 | |
| CASE IH | JX-SERIES JX 70 | 01.2007-12.2008 | |
| CLAAS | Consul 3.8 | OM314 | 01.1975-12.1978 |
| CLAAS | Dominator 85 | OM352 | 01.1977-12.1985 |
| CLAAS | Dominator 85 | OM352A | 01.1977-12.1985 |
| CLAAS | Dominator 86 | OM352 | 01.1981-12.1993 |
| CLAAS | Jaguar 60SF | OM352 | 01.1974-12.1994 |
| CLAAS | Mercator 50 3.8 | OM314 | 01.1977-12.1978 |
| CLAAS | Mercator 60 | OM352 | 01.1982-12.1993 |
| CLAAS | Mercator 75 | OM352 | 01.1977-12.1993 |
| FIAT | 400 400 | 8035.01 | 01.1968- |
| FIAT | 400 450 | 8035.01 | 01.1968-12.1981 |
| FIAT | 400 450 | 8035.01 | 01.1968-12.1981 |
| FIAT | 400 466 | 8035.02 | 01.1968-12.1986 |
| FIAT | 400 466 | 8035.02 | 01.1968-12.1986 |
| FIAT | 400 480 | 8035.02 | 01.1973-12.1984 |
| FIAT | 400 480 | 8035.02 | 01.1973-12.1984 |
| FIAT | 45.66 | [8035.06] | 01.1985-12.1989 |
| FIAT | 465 2.6 | 01.1982-12.1984 | |
| FIAT | 466 2.6 | 01.1982-12.1984 | |
| FIAT | 480 2.6 | 01.1976-12.1982 | |
| FIAT | 500 Serie 500 | 8035.02 | 01.1971-12.1980 |
| FIAT | 500 Serie 500 | 8035.02 | 01.1971-12.1980 |
| FIAT | 500 Serie 540 | 8035.02 | 01.1971-12.1980 |
| FIAT | 500 Serie 540 | 8035.02 | 01.1971-12.1980 |
| FIAT | 500 Serie 566 | 8035.04.265 | 01.1982-12.1986 |
| FIAT | 500 Serie 566 | 8035.04.265 | 01.1982-12.1986 |
| FIAT | 500 Serie 580 | 8035.04.270 | 01.1978-12.1984 |
| FIAT | 500 Serie 580 | 8035.04.270 | 01.1978-12.1984 |
| FIAT | 540S 2.6 | 01.1978-12.1982 | |
| FIAT | 55.46 | [8035.06] | 01.1985-12.1988 |
| FIAT | 55.65 | [55.65] | 01.1984-12.1989 |
| FIAT | 55.66 | [8035.06] | 01.1984-12.1989 |
| FIAT | 55.88 | [8035.06] | 01.1990-12.1991 |
| FIAT | 55.9 | [8035.06] | 01.1984-12.1989 |
| FIAT | 55.90 | [8035.06] | 01.1984-12.1989 |
| FIAT | 565C 2.8 | 01.1982-12.1984 | |
| FIAT | 566 2.8 | 01.1982-12.1984 | |
| FIAT | 570 2.8 | 01.1977-12.1987 | |
| FIAT | 580 2.8 | 01.1977-12.1984 | |
| FIAT | 60.88 | [8035.05] | 01.1990-12.1992 |
| FIAT | 60.9 | [8035.05] | 01.1984-12.1990 |
| FIAT | 60.90 | [8035.05] | 01.1984-12.1990 |
| FIAT | 66 45-66 | 8035.06.200 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.200 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.220 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.220 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.222 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.222 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.321 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.321 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.323 | 01.1985-12.1992 |
| FIAT | 66 45-66 | 8035.06.323 | 01.1985-12.1992 |
| FIAT | 66 45-66S | 01.1996-12.1999 | |
| FIAT | 66 55-66 | 8035.06.206 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.206 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.208 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.208 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.222 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.222 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.307 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.307 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.308 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.308 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.323 | 01.1985-12.1992 |
| FIAT | 66 55-66 | 8035.06.323 | 01.1985-12.1992 |
| FIAT | 66 55-66S | 8035.06.206 | 01.1996-12.1999 |
| FIAT | 66 55-66S | 8035.06.208 | 01.1996-12.1999 |
| FIAT | 66 55-66S | 8035.06.222 | 01.1996-12.1999 |
| FIAT | 66 55-66S | 8035.06.307 | 01.1996-12.1999 |
| FIAT | 66 55-66S | 8035.06.308 | 01.1996-12.1999 |
| FIAT | 66 60-66S | 8035.05.214 | 01.1992-12.1996 |
| FIAT | 66 60-66S | 8035.05.215 | 01.1992-12.1996 |
| FIAT | 66 65-66 | 8045.06.213 | 01.1985-12.1991 |
| FIAT | 66 65-66 | 8045.06.213 | 01.1985-12.1991 |
| FIAT | 66 65-66S | 8045.06.213 | 01.1996-12.1999 |
| FIAT | 66 70-66, 70-66S | 8045.06.213 | 01.1985-12.1999 |
| FIAT | 88 55-88 | 8035.06.216 | 01.1989-12.1993 |
| FIAT | 88 55-88 | 8035.06.216 | 01.1989-12.1993 |
| FIAT | 88 55-88 | 8035.06.317 | 01.1989-12.1993 |
| FIAT | 88 55-88 | 8035.06.317 | 01.1989-12.1993 |
| FIAT | 88 60-88 | 8035.05.214 | 01.1989-12.1993 |
| FIAT | 88 60-88 | 8035.05.214 | 01.1989-12.1993 |
| FIAT | 88 60-88 | 8035.05.215 | 01.1989-12.1993 |
| FIAT | 88 60-88 | 8035.05.215 | 01.1989-12.1993 |
| FIAT | 90 55-90 | 8035.06.200 | 01.1984-12.1992 |
| FIAT | 90 55-90 | 8035.06.200 | 01.1984-12.1992 |
| FIAT | 90 60-90 | 8035.05.214 | 01.1984-12.1992 |
| FIAT | 90 60-90 | 8035.05.214 | 01.1984-12.1992 |
| FIAT | 90 60-90 | 8035.05.215 | 01.1984-12.1992 |
| FIAT | 90 60-90 | 8035.05.215 | 01.1984-12.1992 |
| FIAT | 94 60-94 | 8035.05.214 | 01.1993-12.1996 |
| FIAT | 94 60-94 | 8035.05.215 | 01.1993-12.1996 |
| FIAT | L L60 | 8035.05.214 | 01.1996-12.1998 |
| FIAT | L L60 | 8035.05.215 | 01.1996-12.1998 |
| HESSTON | 55 | 8035 | 01.1989-12.1991 |
| HESSTON | 56 DT | 8035 | 01.1989-12.1991 |
| HESSTON | 580 | 8035 | 01.1981-12.1984 |
| HESSTON | 580 DT | 8035 | 01.1981-12.1984 |
| HESSTON | 640 | 8045 | 01.1981-12.1982 |
| HESSTON | 640 DT | 8045 | 01.1981-12.1982 |
| HESSTON | 65-66 | 8045 | 01.1990-12.1991 |
| HESSTON | 666 | 8045 | 01.1983-12.1984 |
| HESSTON | 666 DT | 8045 | 01.1983-12.1984 |
| HESSTON | 680 | 8045 | 01.1981-12.1984 |
| HESSTON | 680 DT | 8045 | 01.1981-12.1984 |
| HESSTON | 70-66 | 8045 | 01.1985-12.1991 |
| HESSTON | 70-66 DT | 8045 | 01.1985-12.1991 |
| HESSTON | 70-66 F | 8045 | 01.1985- |
| HESSTON | 70-66 FDT | 8045 | 01.1985- |
| HESSTON | 70-66 LP | 8045 | 01.1985- |
| HESSTON | 70-90 | 8045 | 01.1985- |
| HESSTON | 70-90 DT | 8045 | 01.1985- |
| HESSTON | 766 | 8045 | 01.1983-12.1984 |
| HESSTON | 766 T | 8045 | 01.1983-12.1984 |
| HESSTON | 780 | 8045 | 01.1981-12.1984 |
| HESSTON | 780 DT | 8045 | 01.1985- |
| HESSTON | 80-66 | 8045 | 01.1985- |
| HESSTON | 80-66 DFDT | 8045 | 01.1985- |
| HESSTON | 80-66 DT | 8045 | 01.1985- |
| HESSTON | 80-66 F | 8045 | 01.1985- |
| HESSTON | 80-90 | 8045 | 01.1985-12.1991 |
| HESSTON | 80-90 DT | 8045 | 01.1981-12.1984 |
| HESSTON | 880-5 | 8055 | 01.1982-12.1982 |
| IVECO | EUROCARGO I-III 75 E 14, 75 E 14 P | 8040.45.4000 | 01.1991-09.2015 |
| IVECO | EUROCARGO I-III 75 E 14, 75 E 14 P | 8040.45.4180 | 01.1991-09.2015 |
| IVECO | ZETA 109-14 | 8060.04.689 | 06.1983-12.1985 |
| IVECO | ZETA 109-14 | 8060.05.289 | 11.1985-03.1991 |
| IVECO | ZETA 109-14 H | 8060.04.689 | 06.1983-12.1985 |
| IVECO | ZETA 109-14 H | 8060.05.289 | 11.1985-03.1991 |
| IVECO | ZETA 60-10 | 8340.04.200 | 11.1979-12.1986 |
| IVECO | ZETA 60-10 | 8340.04.250 | 11.1979-12.1986 |
| IVECO | ZETA 60-10 H | 8340.04.200 | 11.1979-12.1986 |
| IVECO | ZETA 60-10 H | 8340.04.250 | 11.1979-12.1986 |
| IVECO | ZETA 60-10 V | 8340.04.200 | 11.1979-12.1986 |
| IVECO | ZETA 60-10 V | 8340.04.250 | 11.1979-12.1986 |
| IVECO | ZETA 65-12 H | 8040.25.200 | 01.1987-03.1991 |
| IVECO | ZETA 65-12 V | 8040.25.200 | 01.1987-03.1991 |
| IVECO | ZETA 79-13 | 8060.04.060 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.060 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.060 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.660 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.660 | 11.1979-12.1983 |
| IVECO | ZETA 79-13 | 8060.04.660 | 11.1979-12.1983 |
| IVECO | ZETA 79-14 | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 H | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 H | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 H | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 H | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 V | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 V | 8060.04.660 | 01.1983-11.1985 |
| IVECO | ZETA 79-14 V | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 79-14 V | 8060.05.280 | 12.1985-03.1991 |
| IVECO | ZETA 95-14 | 8060.04.669 | 07.1983-10.1985 |
| IVECO | ZETA 95-14 H | 8060.04.669 | 07.1983-10.1985 |
| LONG | 1010 | 01.1975-12.1985 | |
| LONG | 310 | 2-110 | 01.1980-12.1989 |
| LONG | 340 | 01.1980-12.1985 | |
| LONG | 350 | 01.1974-12.1989 | |
| LONG | 360 | 3-143 | 01.1976-12.1989 |
| LONG | 445 | 01.1974-12.1989 | |
| LONG | 460 | 3-143 | 01.1976-12.1989 |
| LONG | 500 | 01.1980-12.1985 | |
| LONG | 510 | 3-165 | 01.1979-12.1990 |
| LONG | 530 | 01.1980-12.1985 | |
| LONG | 550 | 01.1974-12.1989 | |
| LONG | 600 | 01.1980-12.1989 | |
| LONG | 610 | 4-219 | 01.1980-12.1989 |
| LONG | 640 | 01.1980-12.1985 | |
| LONG | 850 | 01.1980-12.1989 | |
| NEW HOLLAND | 4030 | 3-179 | 01.1992-12.1996 |
| NEW HOLLAND | 4635 | 01.1996-12.1999 | |
| NEW HOLLAND | L L60 | 8045.06 | 01.1995-12.1998 |
| NEW HOLLAND | T4000 T4030 | 06.2008- | |
| NEW HOLLAND | TD 5 5.110 | 11.2011- | |
| NEW HOLLAND | TD 5 5.65 | 11.2011- | |
| NEW HOLLAND | TD 5 5.75 | 11.2011- | |
| NEW HOLLAND | TD 5 5.80 | 11.2011- | |
| NEW HOLLAND | TD 5 5.80 | 11.2011- | |
| NEW HOLLAND | TN55 2.9 | 01.1999-12.2004 | |
| NEW HOLLAND | TN55D 2.9 | 01.1999-12.2004 | |
| NEW HOLLAND | TN55S 2.9 | 01.1999-12.2004 | |
| NEW HOLLAND | TN65 2.9 | 01.1999-12.2004 | |
| NEW HOLLAND | TN65D 2.9 | 01.1999-12.2004 | |
| NEW HOLLAND | TN65S 2.9 | 01.1999-12.2004 | |
| NEW HOLLAND | TN70 2.9 | 01.2000-12.2004 | |
| NEW HOLLAND | TN75 2.9 | 01.1999-12.2003 | |
| NEW HOLLAND | TN-A TN60DA | 01.2004-12.2008 | |
| NEW HOLLAND | TN-A TN60DA | 01.2004-12.2008 | |
| NEW HOLLAND | TN-A TN60SA | 01.2004-12.2008 | |
| NEW HOLLAND | TN-A TN70DA, TN75DA | 01.2004-12.2008 | |
| NEW HOLLAND | TN-A TN70DA, TN75DA | 01.2004-12.2008 | |
| PEUGEOT | 104 Coupe 1.1 | 109F(XW7) | 08.1979-06.1988 |
| PEUGEOT | 205 I (741A/C) 1.4 | 150D(XY7) | 02.1983-10.1987 |
| PEUGEOT | 205 I (741A/C) 1.4 | 150G(XY7) | 02.1983-10.1987 |
| PEUGEOT | 205 I Convertible (741B, 20D) 1.4 CT | 150B(XY8) | 04.1986-12.1988 |
| PEUGEOT | 205 I Convertible (741B, 20D) 1.4 CT | 150H(XY8) | 04.1986-12.1988 |
| PEUGEOT | 205 II (20A/C) 1.4 | 150B(XY8) | 07.1988-05.1989 |
| PEUGEOT | 205 II (20A/C) 1.4 | 150H(XY8) | 07.1988-05.1989 |
| TALBOT | SAMBA 1.1 (51A611, 51A702) | XW7 | 01.1981-06.1986 |
Reference Information
| 0001362032 | BOSCH |
| 0001362039 | BOSCH |
| 0001362322 | BOSCH |
| 0001362332 | BOSCH |
| 0986012670 | BOSCH |
| 0986012671 | BOSCH |
| 10010373AV | ITAB AUTOMOTIVE |
| 110529 | CARGO |
| 110813 | CARGO |
| 17093N | WAI |
| 20401373BN | REAL |
| 2093331-3 | ALLIS CHALMERS |
| 2093673-8 | ALLIS CHALMERS |
| 25-3320 | ELSTOCK |
| 33341 | EAI |
| 341ST33 | STARTCAR |
| 35530712A | CHRYSLER |
| 4169096 | FIAT |
| 4682998 | FIAT |
| 4710224 | FIAT |
| 4722682 | FIAT |
| 4737755 | FIAT |
| 4739353 | FIAT |
| 4755109 | FIAT |
| 4763996 | FIAT |
| 4832942 | NEW HOLLAND |
| 500.001.093.010 | WAI |
| 500.001.093.050 | WAI |
| 500333271 | IVECO |
| 500338952 | IVECO |
| 500.533.093.012 | WAI |
| 500.533.093.016 | WAI |
| 619017092 | DRI |
| 84224935 | NEW HOLLAND |
| 8615 | CEVAM |
| 88205001 | FIAT |
| 88205006 | FIAT |
| 8EA726196-001 | HELLA |
| 91-15-6928 | WILSON |
| 91-15-6928N | WILSON |
| 99449113 | IVECO |
| A12670 | ATL AUTOTECHNIK |
| ANM12244 | ANDEL |
| BREF032110813 | CARWOOD GROUP |
| CGB-22670 | AINDE |
| CGB-23074 | AINDE |
| CS240 | HC PARTS |
| CST0303 | COMLINE |
| CST10373AS | CASCO |
| DM2138 | MAN |
| DRS0024 | DELCO |
| DRS2670 | DELCO |
| F032110813 | CARGO |
| LRS01976 | LUCAS |
| LRS1976 | LUCAS |
| MAV123730A | SIOM |
| PL9008 | SNRA |
| PTC-4304 | POWER TRUCK |
| S0895S | AS-PL |
| S144.331 | WAI |
| SBO373A | AUTOTEAM |
| ST01374 | TMI |
| STR1285 | ELECTROLOG |
| UD49010S | AS-PL |
Video/Publications
S0895SView your shopping basket or Browse other items in Starter Motors.
