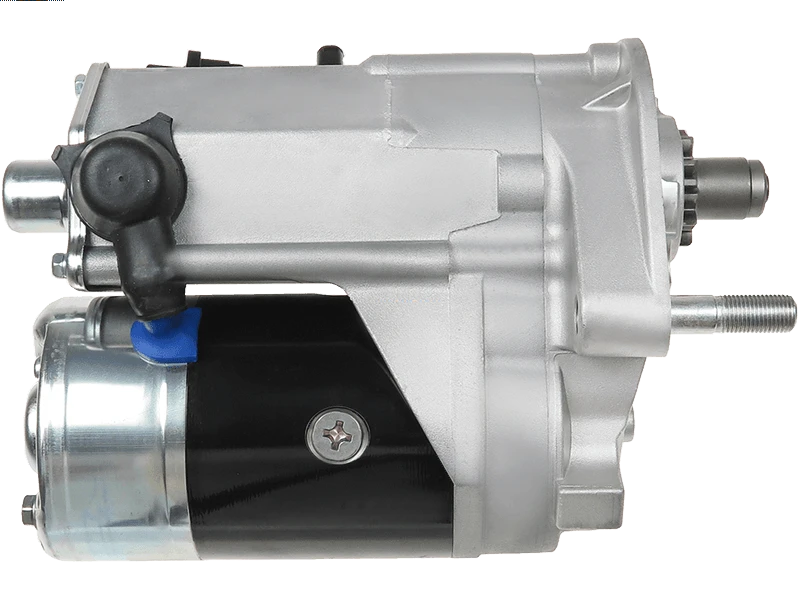

Brand new OEM DENSO Starter motor
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 1,079.30 including GST
NZ$ 938.52 excluding GST
or four payments of $269.83
with
Learn More
each
S6021(DENSO)
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
DSN1229Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 258 mm |
| Mount Hole Center - Center (O.1) | 128 mm |
| Mount Hole Diameter (C.1) | M12x1.25 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| OEM Product | Yes |
| Pinion at Rest (B) | 18 mm |
| Product Line | Premium Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Dyna 2.5 D-4D | [2KD-FTV] | 07.2001- |
| TOYOTA | Dyna 2.5 D-4D | [2KD-FTV] | 08.2001- |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 06.2004- |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 08.2001-08.2006 |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 08.2006-12.2012 |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 09.2006- |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 09.2006-12.2012 |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 08.2001-08.2004 |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 08.2001-08.2006 |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 09.2006-12.2012 |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 11.2001-08.2006 |
| TOYOTA | Hilux 2.5 D-4D | [2KD-FTV] | 11.2001-07.2005 |
| TOYOTA | Hilux 2.5 D-4D 4WD | [2KD-FTV] | 11.2001-07.2005 |
| TOYOTA | Land Cruiser 3.0 D-4D 4WD | [1KD-FTV] | 08.2000-08.2002 |
| TOYOTA | Land Cruiser 3.0 TD | [1KZ-TE] | 04.1995-07.2000 |
| TOYOTA | Land Cruiser 3.0 TD | [1KZ-TE] | 04.1996-12.2002 |
| TOYOTA | Land Cruiser Prado 2.8 D-4D | [1GD-FTV] | 06.2015- |
| TOYOTA | Land Cruiser Prado 2.8 D-4D | [1GD-FTV] | 10.2018- |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 07.2004-08.2009 |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 08.2006-07.2009 |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 08.2009- |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 09.2002-08.2009 |
| TOYOTA | Land Cruiser Prado 3.0 D-4D | [1KD-FTV] | 09.2002-12.2010 |
| TOYOTA | Land Cruiser Van 3.0 D-4D 4WD | [1KD-FTV] | 01.2011- |
Reference Information
| 0986020591 | BOSCH |
| 0986024320 | BOSCH |
| 101447 | KUHNER |
| 10438145 | ALANKO |
| 106564 | FARCOM |
| 11040770 | EUROTEC |
| 113938 | CARGO |
| 115973 | CARGO |
| 11982 | EAI |
| 190.575.112.050 | PSH |
| 190.575.112.260 | PSH |
| 190.930.112.050 | PSH |
| 190.930.112.058 | PSH |
| 201155 | KUHNER |
| 20432932BN | REAL |
| 20432932OE | REAL |
| 20432973BN | REAL |
| 220789 | ERA |
| 22.1155 | LAUBER |
| 228000-4930 | DENSO |
| 228000-5340 | DENSO |
| 228000-5341 | DENSO |
| 228000-5342 | DENSO |
| 228000-5650 | DENSO |
| 228000-5651 | DENSO |
| 228000-5652 | DENSO |
| 25-3388 | ELSTOCK |
| 25-3388CT | AINDE |
| 25-4046 | ELSTOCK |
| 28100-30050 | TOYOTA |
| 28100-30051 | TOYOTA |
| 28100-3005184 | TOYOTA |
| 28100-30070 | TOYOTA |
| 28100-30071 | TOYOTA |
| 28100-30080 | TOYOTA |
| 28100-30081 | TOYOTA |
| 28100-67040 | TOYOTA |
| 28100-67070 | TOYOTA |
| 28100-67090 | TOYOTA |
| 33217N | WAI / TRANSPO |
| 33217R | WAI / TRANSPO |
| 335224112 | DRI |
| 428000-0290 | DENSO |
| 428000-0291 | DENSO |
| 428000-1370 | DENSO |
| 428000-1371 | DENSO |
| 428000-3110 | DENSO |
| 428000-3111 | DENSO |
| 428080-3111 | DENSO |
| 458865 | VALEO |
| 6040239.0 | SANDO |
| 6040239.1 | SANDO |
| 6040379.0 | SANDO |
| 8052287 | FRIESEN |
| 88212202 | POWERMAX |
| 88212807 | POWERMAX |
| 8EA012527-341 | HELLA |
| 8EA012527-342 | HELLA |
| 8EA737760-001 | HELLA |
| 944280522870 | MAGNETI MARELLI |
| 9728 | CEVAM |
| 982ST11 | STARTCAR |
| AET1155 | AUTOELECTRO |
| ASM1600 | APEC |
| CGB-23965 | AINDE |
| CS1447 | HC PARTS |
| CST40239AS | CASCO |
| CST40239GS | CASCO |
| CST40379AS | CASCO |
| DENDSN1229 | WOODAUTO |
| DRS0434 | DELCO |
| DRS3965 | DELCO |
| DSN1229 | DENSO |
| F032113938 | CARGO |
| F032115973 | CARGO |
| F042S0H078 | UNIPOINT |
| J5212087 | HERTH+BUSS |
| JS1155 | HC PARTS |
| LRS02217 | LUCAS |
| LRS02374 | LUCAS |
| LRS2217 | LUCAS |
| LRS2374 | LUCAS |
| MAV422390 | SIOM |
| MAV422390A | SIOM |
| MAV423790A | SIOM |
| MRS52287 | MAGNETI MARELLI |
| NPANSM1600 | NAPA |
| PRSS067 | 3EFFE |
| PRSS926 | 3EFFE |
| QRS2048 | QUINTON HAZELL |
| RNL1155JS | RNL |
| S12DE0137A2 | SIDAT |
| S1402D | PRESTOLITE |
| S511208 | BTS TURBO |
| S-70020 | DTS |
| SG1000 | GM |
| SS474 | SOVEREIGN |
| SS481 | SOVEREIGN |
| ST01571 | TMI |
| STN1155 | KRAUF |
| STN1447 | KRAUF |
| STR6305 | ELECTROLOG |
| STR70020 | WOODAUTO |
| STRS067 | 3EFFE |
| STRS926 | 3EFFE |
| STX200339 | STARDAX |
| STX200468 | STARDAX |
| STX210245 | STARDAX |
| STX210245R | STARDAX |
| TO9050 | SNRA |
| TO9066 | SNRA |
| UD808770(DENSO)S | AS-PL |
| WOOSTR70020 | WOODAUTO |
Video/Publications
