Associated Numbers
ARROWHEAD SMU0420
HI LEVEL 217007, 219534, STS0420
J&N ELECTRICAL PRODUCTS 410-58072
LESTER 19630
SUZUKI 31100-22G00, 31100-22G10
Lester 19630
PIC Picture ID 191-492
Suzuki 31100-22G00, 31100-22G10
Youtech/PartRef 439445
Wilson 71-26-19630
410-58072-CW
|
116073 |
HC-Cargo |
|---|---|
|
180018103 |
PSH |
|
19630N |
WAI |
|
3110022G00 |
Suzuki |
|
3110022G10 |
Suzuki |
|
STR76000 |
Wood Auto |
|
WOOSTR76000 |
Wood Auto |
- Arrowhead SMU0420
- Hi Level 217007, 219534, STS0420
- J&N Electrical Products 410-58072
- Lester 19630
- Suzuki 31100-22G00, 31100-22G10
-
UD18998S AS-PL
116073 CARGO
F032116073 CARGO
31100-22G00 SUZUKI
31100-22G10 SUZUKI
31100-36C02-000 SUZUKI
10439076 ALANKO
SMU0420 ARROWHEAD
108694 FARCOM
3113502 HENKEL PARTS
255373 KUHNER
19630 LESTER
180.018.103.190 PSH
19630N WAI / TRANSPO
STR76000 WOODAUTO
WOOSTR76000 WOODAUTO

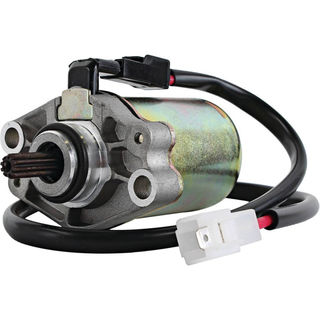

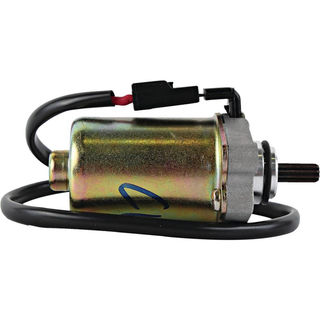

Specifications
| Length (L.1) | 74 mm |
| Mount Hole Center - Center (O.1) | 57 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion/Drive OD | 7.3 mm |
| Spigot Diameter (A) | 24 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| APRILIA | Habana 50 | 1999, 2000, 2001, 2002, 2003 | |
| APRILIA | Mojito 50 Custom | 1999, 2000, 2001, 2002, 2003, 2004 | |
| APRILIA | Mojito 50 Retro | 1999, 2000, 2001, 2002, 2003 | |
| APRILIA | Scarabeo 50 Di-Tech | 2001, 2002, 2003, 2004, 2005, 2006 | |
| APRILIA | SR 50 Di-Tech | 50 Piaggi | 2003 |
| APRILIA | SR 50 Di-Tech | 50 Suzuk | 2000, 2001, 2002, 2004 |
| APRILIA | SR 50 R / Factory | 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 | |
| ATALA | Byte AT10 50 | 1997, 1998 | |
| ATALA | Hacker AT12 50 | 1998, 1999 | |
| ATALA | Hacker LC 50 | 1997, 1998 | |
| ATALA | Hacker Racing 50 | 1997, 1998, 1999 | |
| ATALA | Skeggia 50 | ||
| BENELLI | 491 RR SBK | 50cc | 2003, 2004 |
| BENELLI | 491 Sport | 50cc | 2003, 2004 |
| BENELLI | 491 ST Rage | 50cc | 2003, 2004 |
| BENELLI | Naked Morini 50 | 2003 | |
| SUZUKI | AP 50 | 1996, 1997 | |
| SUZUKI | LT-Z 50 QuadSport | 2017, 2018 | |
| SUZUKI | TR50 Street Magic | 1998, 1999 |
Reference Information
ARROWHEAD SMU0420, LESTER 19630, SUZUKI 31100-22G00, 31100-22G10
