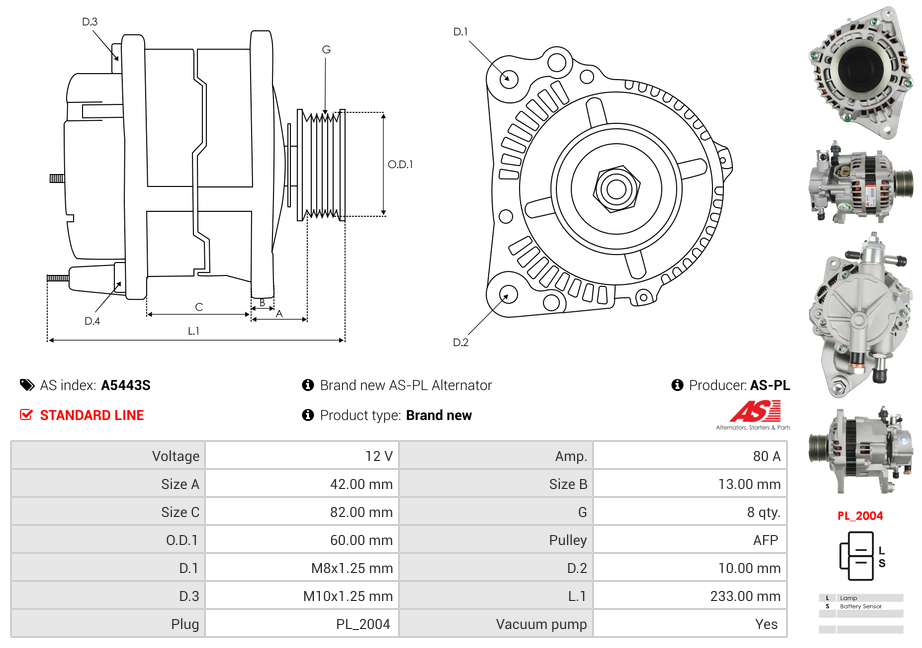

Specifications
Amp | 80 A |
Bottom Mounting Foot Width (B) | 13 mm |
Diameter (D.1) | M8x1.25 mm |
Diameter (D.2) | 10 mm |
Diameter (D.3) | M10x1.25 mm |
Grooves | 8 qty |
Length (L.1) | 233 mm |
Mount Inside Length or Pad Mount C-C (C) | 82 mm |
OEM Product | No |
Outside Diameter (O.D.1) | 60 mm |
Plug Code | PL_2004 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 42 mm |
Pulley Type | CLUTCH |
Unit Type | MITSUBISHI |
Vacuum Pump | Yes |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
MAZDA | Bongo 2.5 TD | [WL-T] | 06.1995-12.2001 |
MAZDA | Bongo 2.5 TD 4x4 | [WL-T] | 06.1995-12.2001 |
Reference Information
20137734BN A002TN3381 UD19454A ALT5308 RF6C-18-300A 23100-HA302 A2TN3381 ALT31451 2035437 CAL35437ASAdd Your Number
