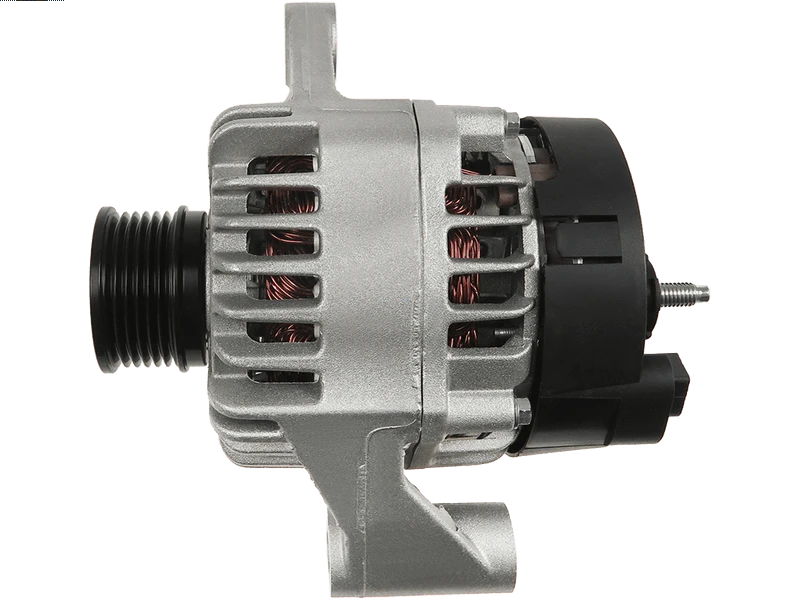

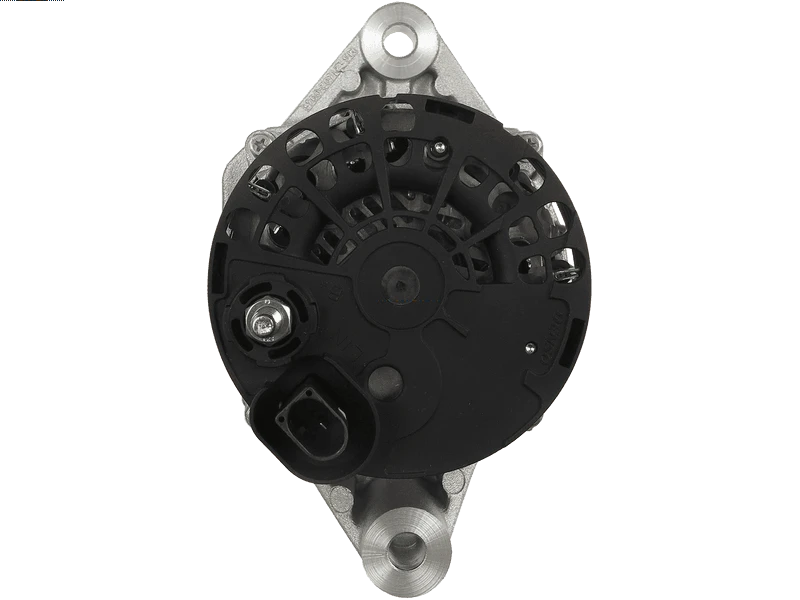

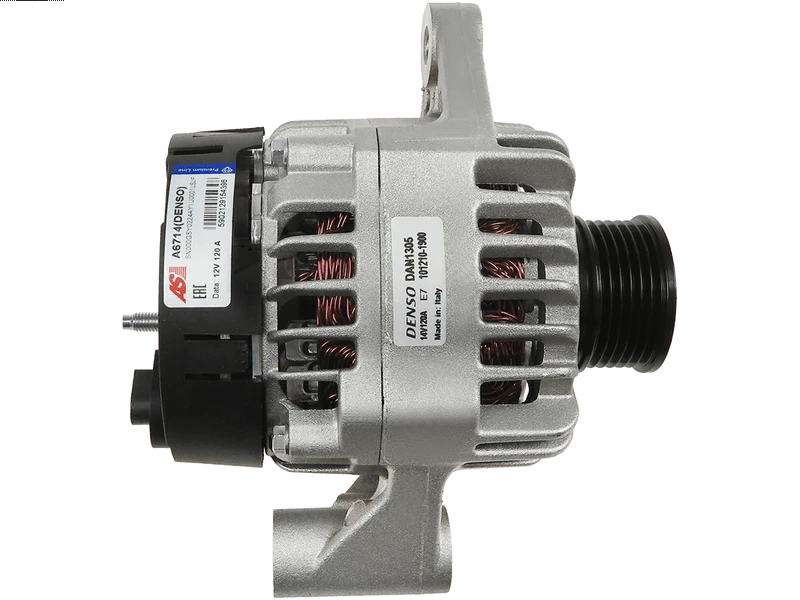

Brand new OEM DENSO Alternator
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 1,142.78 including GST
NZ$ 993.72 excluding GST
or four payments of $285.70
with
Learn More
each
A6714(DENSO)
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
DAN1305Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 61 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 12 mm |
| Length (L.1) | 195 mm |
| OEM Product | Yes |
| Plug Code | PL_2305 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 113 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | SX4 S-Cross 1.6 DDiS | [D16AA] | 08.2013- |
| SUZUKI | SX4 S-Cross 1.6 DDiS AllGrip | [D16AA] | 08.2013- |
| SUZUKI | Vitara 1.6 DDiS | [D16AA] | 02.2015- |
| SUZUKI | Vitara 1.6 DDiS AllGrip | [D16AA] | 02.2015- |
Reference Information
| 101210-1900 | DENSO |
| 12061135 | EUROTEC |
| 185.530.120.050 | PSH |
| 185.530.120.260 | PSH |
| 20040489OV | ITAB AUTOMOTIVE |
| 20132984OE | REAL |
| 2040489.1 | SANDO |
| 21048N | WAI / TRANSPO |
| 211066A | ERA |
| 2451401202 | DRI |
| 28-7721 | ELSTOCK |
| 3113616 | HENKEL PARTS |
| 31400-62M00 | SUZUKI |
| 40313 | CEVAM |
| 404ST58 | STARTCAR |
| 554670RID | KUHNER |
| 58404 | EAI |
| 89216668 | POWERMAX |
| ADN489 | AUTOTEAM |
| AEG1406 | AUTOELECTRO |
| AL03652 | TMI |
| ALN5126 | KRAUF |
| ALT424890 | SIOM |
| ALT6493 | ELECTROLOG |
| ALTJ085 | 3EFFE |
| ANM98551 | ANDEL |
| CAL40489GS | CASCO |
| CGB-13151 | AINDE |
| DA2597 | DELCO |
| DAN1305 | DENSO |
| DENDAN1305 | WOODAUTO |
| DRA1487 | DELCO |
| G103662 | BTS TURBO |
| GAAN1305-N | GPARTS |
| IR5755 | PROTECH |
| LRA04112 | LUCAS |
| LRA4112 | LUCAS |
| PRAJ085 | 3EFFE |
| SZ8046 | SNRA |
| UD808757(DENSO)A | AS-PL |
| WG1916809 | WILMINK GROUP |
