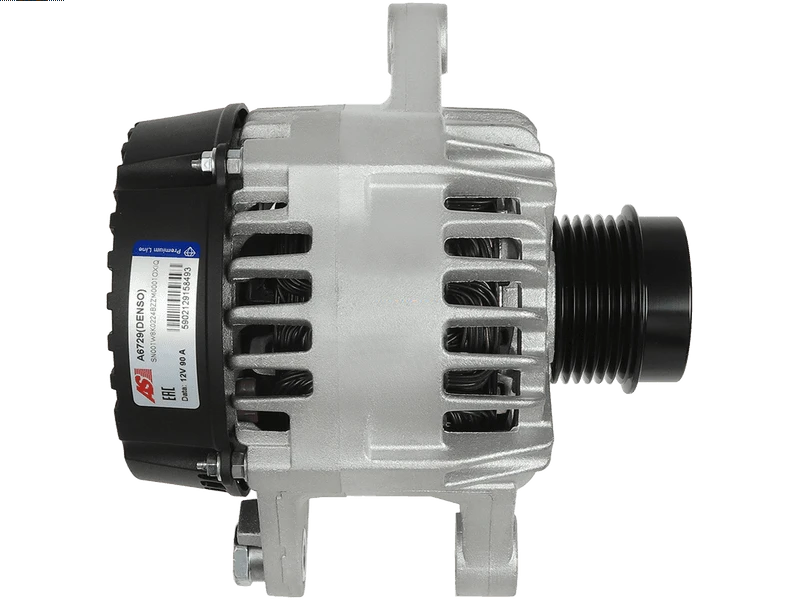

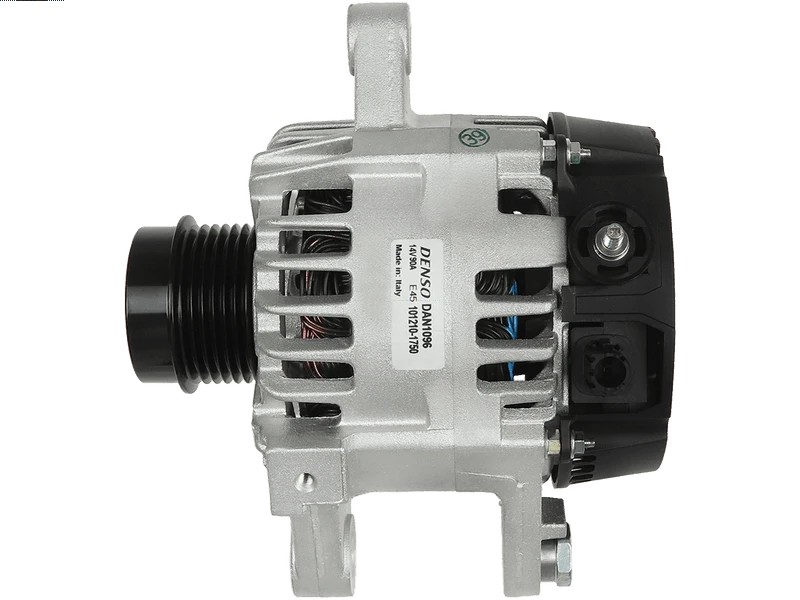

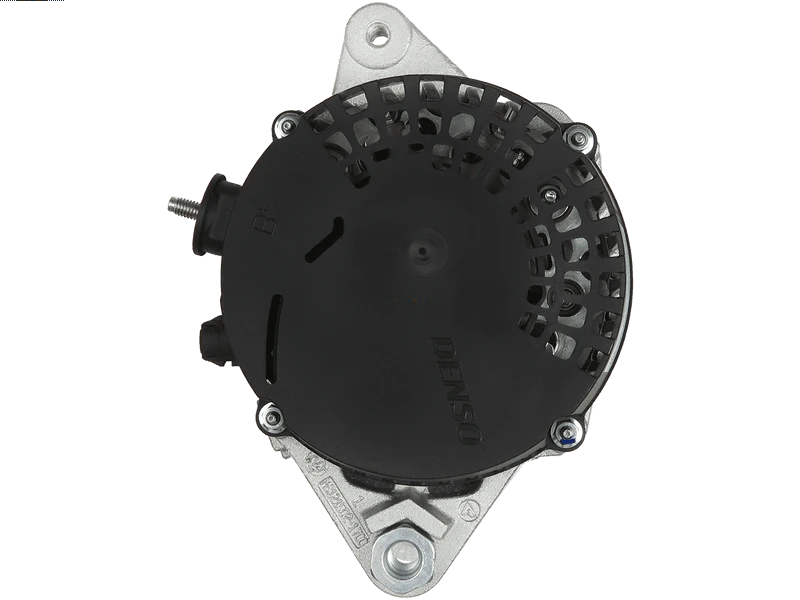

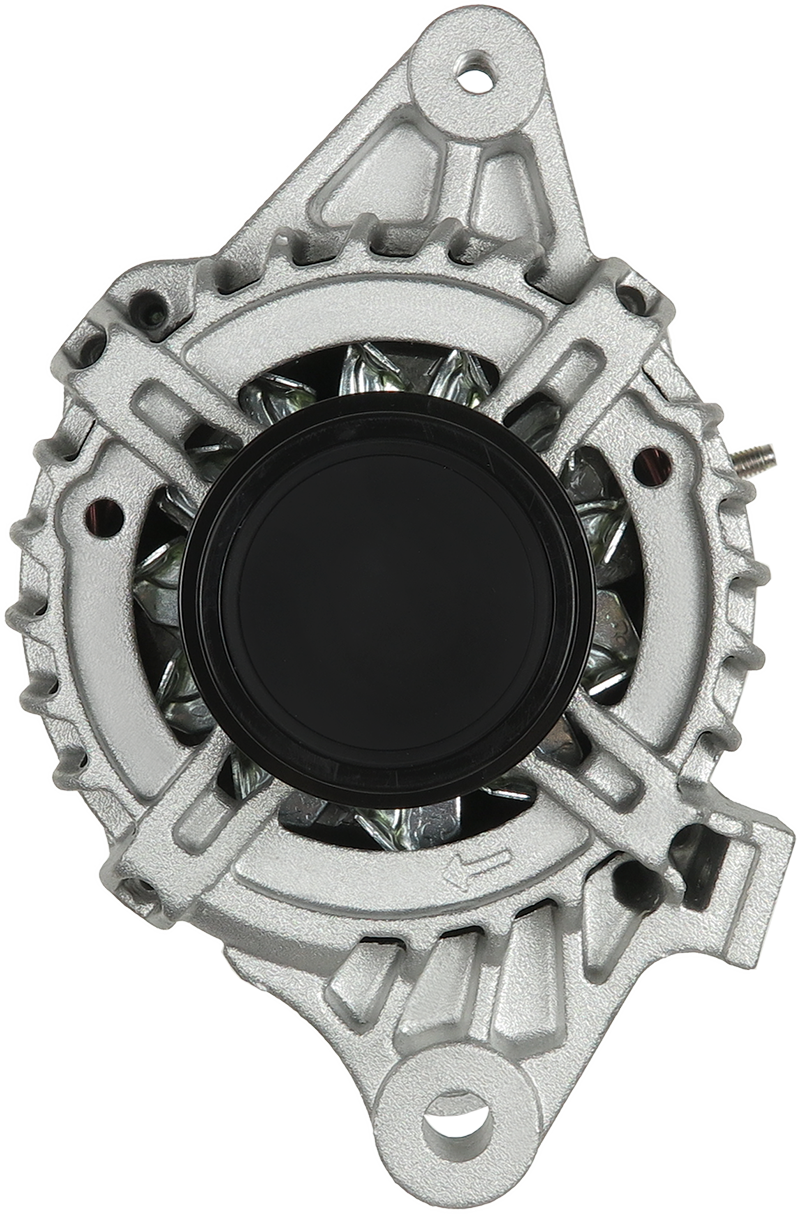

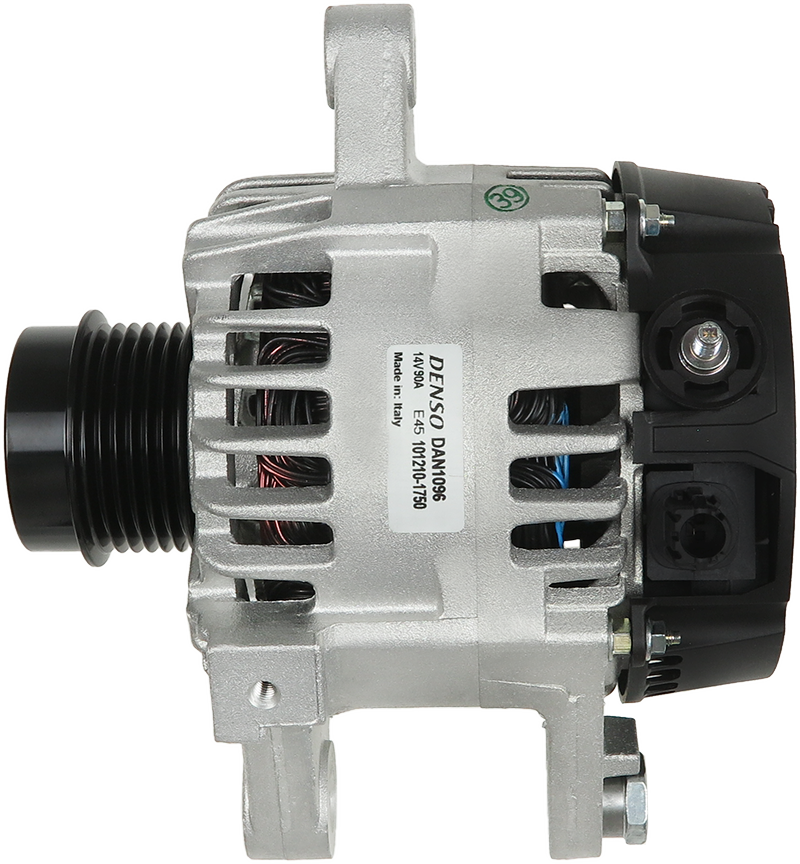

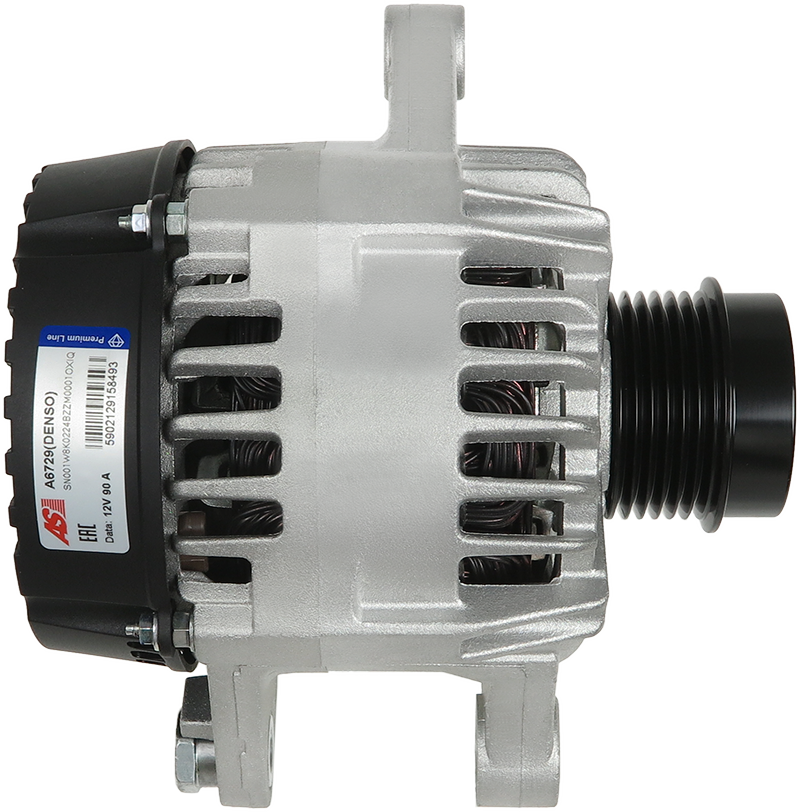

Brand new OEM DENSO Alternator
PREMIUM LINE
Denso
DENSO
Price:
NZ$ 555.45 including GST
NZ$ 483.00 excluding GST
or four payments of $138.86
with
Learn More
each
A6729(DENSO)
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
DAN1096Associated Numbers
1012101750 Denso
195999090 PSH
270600T190 Toyota
287547 Denso
931446 EDR
DAN1096 Denso
DRA1446 Remy
LRA03937 Lucas
Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 20 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 175 mm |
| Mount Inside Length or Pad Mount C-C (C) | 51 mm |
| OEM Product | Yes |
| Plug Code | PL_1100 |
| Product Line | Premium Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | Clutch |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.6 | [1ZR-FAE] | 10.2012-12.2018 |
| TOYOTA | Auris 1.6 Touring Sports | [1ZR-FAE] | 07.2013-12.2018 |
| TOYOTA | Corolla 1.6 | [1ZR-FAE] | 06.2013-12.2018 |
Reference Information
| 063377577010 | MAGNETI MARELLI |
| 101210-1750 | DENSO |
| 195.999.090.260 | PSH |
| 20132424OE | REAL |
| 2040424.1 | SANDO |
| 210967 | ERA |
| 27060-0T190 | TOYOTA |
| 28-7547 | ELSTOCK |
| 40016 | CEVAM |
| 554453RID | KUHNER |
| 89216026 | POWERMAX |
| A148.381 | PSH |
| AEK3937 | AUTOELECTRO |
| ALN9610 | KRAUF |
| ALT6462 | ELECTROLOG |
| ALTE782 | 3EFFE |
| CAL40424GS | CASCO |
| DAN1096 | DENSO |
| DENDAN1096 | WOODAUTO |
| DRA1446 | DELCO |
| J5112209 | HERTH+BUSS |
| LRA03937 | LUCAS |
| LRA3937 | LUCAS |
| MAN7577 | MAGNETI MARELLI |
| PRAE782 | 3EFFE |
| UD810064(DENSO)A | AS-PL |
Video/Publications
A6729(DENSO)View your shopping basket or Browse other items in Alternators.
