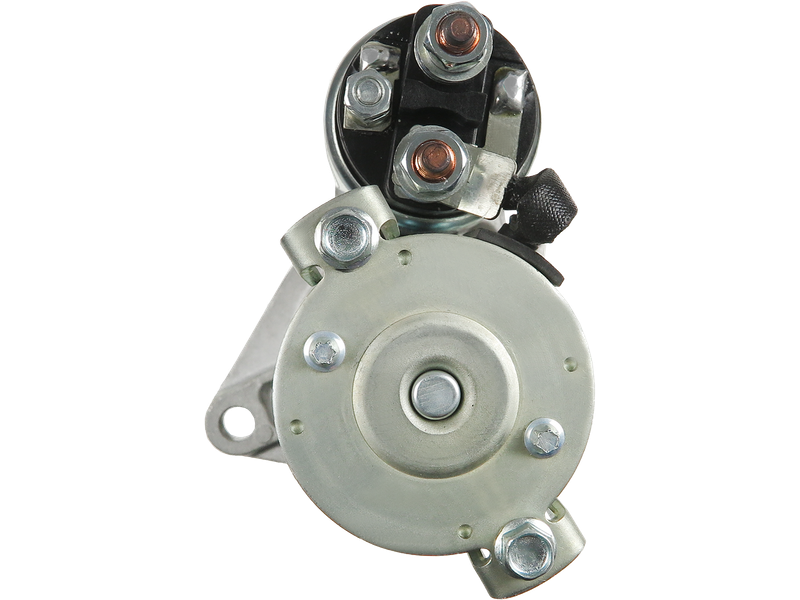

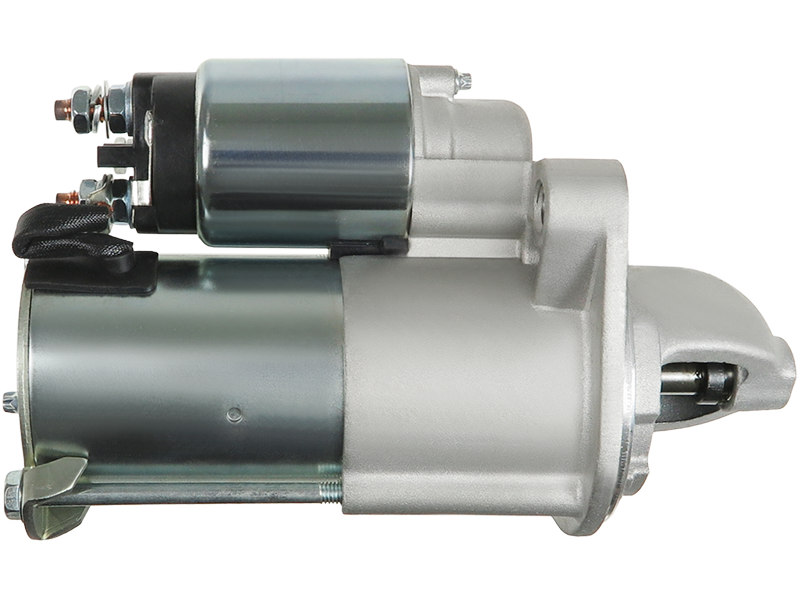

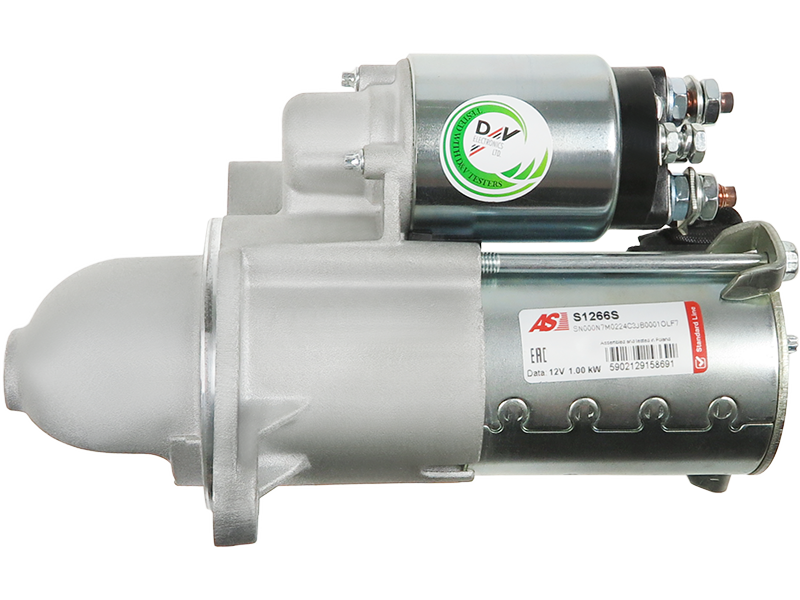

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 332.44 including GST
NZ$ 289.08 excluding GST
or four payments of $83.11
with
Learn More
UOM:
each
Product Code:
S1266S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 1 kW |
| Length (L.1) | 212 mm |
| Mount Hole Center - Center (O.1) | 114 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | DELCO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DOOSAN | D15S-5 2.4 | - | |
| DOOSAN | D15S-5 2.4 | ||
| DOOSAN | D18S-5 2.4 | - | |
| DOOSAN | D18S-5 2.4 | ||
| DOOSAN | D20SC-5 2.4 | - | |
| DOOSAN | D20SC-5 2.4 | ||
| DOOSAN | G20E-5 2.4 | - | |
| DOOSAN | G20E-5 2.4 | ||
| DOOSAN | G20P-5 2.4 | - | |
| DOOSAN | G20P-5 2.4 | ||
| DOOSAN | G25P-5 2.4 | - | |
| DOOSAN | G25P-5 2.4 | ||
| DOOSAN | G30E-5 2.4 | - | |
| DOOSAN | G30E-5 2.4 | ||
| DOOSAN | G30P-5 2.4 | - | |
| DOOSAN | G30P-5 2.4 | ||
| DOOSAN | G33P-5 2.4 | - | |
| DOOSAN | G33P-5 2.4 | ||
| DOOSAN | G35C-5 2.4 | - | |
| DOOSAN | G35C-5 2.4 | ||
| FIAT | ELBA (146_) 1.5 | 149C1.000 | 01.1992-12.1996 |
| FIAT | ELBA (146_) 1.5 | 149C1.000 | 04.1986-10.1992 |
| FIAT | FIORINO Box Body/MPV (146_) 70 i.e. 1.4 | 146C5.000 | 05.1994-05.2001 |
| FIAT | FIORINO Box Body/MPV (146_) 70 i.e. 1.4 | 146D5.000 | 05.1994-05.2001 |
| FIAT | FIORINO Box Body/MPV (146_) 75 i.e. 1.5 | 149C1.000 | 05.1988-12.1993 |
| FIAT | FIORINO Box Body/MPV (146_) 75 i.e. 1.6 | 146C6.000 | 10.1993-05.2001 |
| FIAT | FIORINO Box Body/MPV (146_) 75 i.e. 1.6 | 146D6.000 | 10.1993-05.2001 |
| FIAT | FIORINO MPV (146_) 1.4 (146RE) | 146D5.000 | 11.1996-05.2000 |
| FIAT | FIORINO Pick up (146_) 1.4 | 146D5.000 | 05.1994-05.2001 |
| FIAT | FIORINO Pick up (146_) 1.6 | 146C6.000 | 01.1994-05.2001 |
| FIAT | FIORINO Pick up (146_) 1.6 | 146D6.000 | 01.1994-05.2001 |
| FIAT | MAREA (185_) 1.6 100 16V | 182A4.000 | 09.1996-05.2002 |
| FIAT | MAREA (185_) 1.6 100 16V Bipower | 185A3.000 | 04.1999-05.2002 |
| FIAT | MAREA (185_) 1.6 100 16V Bipower | 186A4.000 | 04.1999-05.2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.4 | 178B2.000 | 04.1996-10.2002 |
| FIAT | PALIO (178_, 171_, 371_) 1.4 Cat | 178B2.016 | 04.1996-08.2001 |
| FIAT | PALIO (178_, 171_, 371_) 1.6 16V | 178B3.000 | 04.1996-10.2002 |
| FIAT | PUNTO (176_) 1.4 GT Turbo (176AD_) | 176A4.000 | 10.1993-03.1997 |
| FIAT | PUNTO (176_) 1.4 GT Turbo (176AS_) | 176B6.000 | 09.1996-07.1999 |
| FIAT | REGATA (138_) 70 1.3 | 138B2.000 | 09.1983-07.1986 |
| FIAT | REGATA (138_) 70 1.3 | 149A3.000 | 09.1983-07.1989 |
| FIAT | REGATA (138_) 70 1.3 | 149A7.000 | 09.1983-07.1989 |
| FIAT | REGATA (138_) 75 1.5 | 138B3.048 | 12.1983-07.1989 |
| FIAT | REGATA (138_) 75 1.5 | 138C2.048 | 12.1983-07.1989 |
| FIAT | REGATA (138_) 75 1.5 | 138C3.048 | 12.1983-07.1989 |
| FIAT | REGATA (138_) 75 1.5 | 149C1.000 | 12.1983-07.1989 |
| FIAT | REGATA (138_) 85 1.6 | 149A.000 | 10.1983-06.1990 |
| FIAT | REGATA Weekend (138_) 100 1.6 (RF) | 149A4.000 | 09.1984-12.1990 |
| FIAT | REGATA Weekend (138_) 100 1.6 (RF) | 149C3.000 | 09.1984-12.1990 |
| FIAT | REGATA Weekend (138_) 75 1.5 | 138B3.048 | 09.1984-07.1989 |
| FIAT | REGATA Weekend (138_) 75 1.5 | 138C2.048 | 09.1984-07.1989 |
| FIAT | REGATA Weekend (138_) 75 1.5 | 138C3.048 | 09.1984-07.1989 |
| FIAT | REGATA Weekend (138_) 75 1.5 | 149C1.000 | 09.1984-07.1989 |
| FIAT | RITMO (138_) 1.1 | 146A4.048 | 04.1985-12.1987 |
| FIAT | RITMO (138_) 1.5 | 138A2.000 | 01.1978-12.1988 |
| FIAT | RITMO (138_) 1.5 | 138A4.000 | 01.1981-05.1987 |
| FIAT | RITMO (138_) 1.5 | 138B3.000 | 01.1983-12.1987 |
| FIAT | RITMO (138_) 1.5 | 138C2.048 | 01.1978-12.1988 |
| FIAT | RITMO (138_) 1.5 | 138C3.048 | 01.1978-12.1988 |
| FIAT | RITMO (138_) 1.5 | 149A5.000 | 08.1985-05.1987 |
| FIAT | RITMO (138_) 1.5 | 149C1.000 | 01.1978-12.1988 |
| FIAT | RITMO (138_) 1.6 | 138AR.000 | 12.1985-12.1987 |
| FIAT | RITMO (138_) 1.6 | 149A4.000 | 01.1983-12.1987 |
| FIAT | RITMO Convertible (138_) 100 1.6 | 138AR.000 | 10.1985-12.1987 |
| FIAT | RITMO Convertible (138_) 100 1.6 | 138AR.048 | 10.1985-12.1987 |
| FIAT | RITMO Convertible (138_) 85 1.5 | 138A4.000 | 01.1980-07.1989 |
| FIAT | RITMO Convertible (138_) 85 1.5 | 138B3.000 | 03.1983-12.1986 |
| FIAT | SCUDO Bus (220_) 1.6 | 220A2.000 | 02.1996-12.2006 |
| FIAT | SCUDO Van (220_) 1.6 | 220A2.000 | 02.1996-12.2006 |
| FIAT | SIENA (178_, 172_, 372_) 1.4 | 178B2.000 | 04.1996-12.2009 |
| FIAT | SIENA (178_, 172_, 372_) 1.4 Cat | 178B2.016 | 04.1996-12.2009 |
| FIAT | TEMPRA (159_) 1.4 i.e. (159.AA) | 159A2.000 | 03.1991-08.1996 |
| FIAT | TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX) | 159A2.000 | 04.1990-08.1996 |
| FIAT | TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX) | 160A1.046 | 04.1990-08.1996 |
| FIAT | TEMPRA (159_) 1.4 i.e. (159.AC, 159.AX) | 836A4.000 | 04.1990-08.1996 |
| FIAT | TEMPRA (159_) 1.6 (159.AD) | 159A3.000 | 03.1990-04.1994 |
| FIAT | TEMPRA (159_) 1.6 (159.AD) | 159B9.000 | 03.1990-04.1994 |
| FIAT | TEMPRA (159_) 1.6 (159AS, 159AT) | 159A3.048 | 04.1990-07.1996 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AE) | 159A3.046 | 06.1990-07.1992 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AJ) | 159B9.000 | 06.1994-08.1996 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AJ) | 159B9.000 | 06.1994-08.1996 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT) | 159A3.048 | 06.1992-08.1996 |
| FIAT | TEMPRA (159_) 1.6 i.e. (159.AS, 159.AT) | 835C1.000 | 06.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.4 i.e. (159.AC) | 159A2.000 | 03.1991-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX) | 159A2.000 | 10.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX) | 160A1.046 | 10.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.4 i.e. (159.AC, 159.AX) | 836A4.000 | 10.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.6 | 159A3.000 | 12.1990-04.1993 |
| FIAT | TEMPRA S.W. (159_) 1.6 (159AE) | 159A3.046 | 04.1991-06.1993 |
| FIAT | TEMPRA S.W. (159_) 1.6 i.e. (159.AE) | 159A3.046 | 10.1990-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.6 i.e. (159.AE) | 835C1.000 | 10.1990-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.6 i.e. (159.AJ) | 159B9.000 | 06.1994-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.6 i.e. (159.AS, 159.AT) | 159A3.048 | 10.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 1.6 i.e. (159.AS, 159.AT) | 835C1.000 | 10.1992-08.1996 |
| FIAT | TEMPRA S.W. (159_) 2.0 i.e. (159.AP) | 159A6.046 | 01.1991-03.1995 |
| FIAT | TIPO (160_) 1.4 (160.AC) | 160A1.000 | 07.1987-12.1989 |
| FIAT | TIPO (160_) 1.4 (160.AC) | 160A1.048 | 07.1987-12.1989 |
| FIAT | TIPO (160_) 1.4 i.e. | 159A2.000 | 05.1989-04.1995 |
| FIAT | TIPO (160_) 1.4 i.e. (160.AP, 160.AD, 160.EA) | 160A1.046 | 05.1989-04.1995 |
| FIAT | TIPO (160_) 1.4 i.e. (160.AP, 160.AD, 160.EA) | 160A1.048 | 05.1989-04.1995 |
| FIAT | TIPO (160_) 1.4 i.e. (160.AP, 160.AD, 160.EA) | 836A4.000 | 05.1989-04.1995 |
| FIAT | TIPO (160_) 1.6 | 160A2.000 | 03.1988-10.1992 |
| FIAT | TIPO (160_) 1.6 (160.AE) | 160A2.000 | 01.1988-10.1991 |
| FIAT | TIPO (160_) 1.6 i.e. | 149C2.046 | 02.1988-05.1991 |
| FIAT | TIPO (160_) 1.6 i.e. (160.A1, 160.EC, 160.EB) | 159A3.048 | 10.1992-04.1995 |
| FIAT | TIPO (160_) 1.6 i.e. (160.A1, 160.EC, 160.EB) | 835C1.000 | 10.1992-04.1995 |
| FIAT | UNO (146_, 158_) 1.3 Turbo i.e. | 146A2.000 | 04.1985-08.1989 |
| FIAT | UNO (146_, 158_) 1.3 Turbo i.e. | 146A2.146 | 01.1987-12.1987 |
| FIAT | UNO (146_, 158_) 1.3 Turbo i.e. | 146A2.246 | 09.1989-03.1991 |
| FIAT | UNO (146_, 158_) 1.4 Turbo i.e. | 146A8.000 | 12.1989-12.1996 |
| FIAT | UNO (146_, 158_) 1.4 Turbo i.e. | 146A8.046 | 09.1989-09.1993 |
| FIAT | UNO (146_, 158_) 60 1.1 (146A.EG) | 146A4.048 | 05.1985-08.1989 |
| FIAT | UNO (146_, 158_) 70 i.e. 1.4 | 146C1.000 | 09.1989-12.1993 |
| FIAT | UNO (146_, 158_) 70 S 1.4 | 160A1.046 | 10.1988-06.2006 |
| FIAT | UNO (146_, 158_) 70 S 1.4 | 160A1.048 | 10.1988-06.2006 |
| FIAT | UNO (146_, 158_) 75 i.e. 1.5 | 138C2.048 | 10.1985-12.1993 |
| FIAT | UNO (146_, 158_) 75 i.e. 1.5 | 149C1.000 | 10.1985-12.1993 |
| HYSTER | H-40FT 2.4 | 01.2005-12.2009 | |
| HYSTER | H-50FT 2.4 | 01.2005-12.2009 | |
| HYSTER | H-60FT 2.4 | 01.2005-12.2009 | |
| HYSTER | H-70FT 2.4 | 01.2005-12.2009 | |
| HYSTER | H-70XM 2.4 | 01.2005-12.2009 | |
| INNOCENTI | ELBA 1.4 i.e. (146EN, 146EQ) | 146C5.000 | 09.1994-12.1996 |
| INNOCENTI | ELBA 1.4 i.e. (146EN, 146EQ) | 146D5.000 | 09.1994-12.1996 |
| INNOCENTI | ELBA 1.5 i.e. (146C9) | 149C1.000 | 08.1992-09.1994 |
| INNOCENTI | ELBA 1.6 i.e. (146EO, 146ER) | 146C6.000 | 09.1994-12.1996 |
| INNOCENTI | ELBA 1.6 i.e. (146EO, 146ER) | 146D6.000 | 09.1994-12.1996 |
| LANCIA | DEDRA (835_) 1.6 i.e. (835AA) | 835A1.000 | 08.1989-06.1994 |
| LANCIA | DEDRA (835_) 1.6 i.e. (835AB) | 835A1.046 | 08.1989-03.1993 |
| LANCIA | DEDRA (835_) 1.6 LE Cat (835EB) | 159B9.000 | 07.1994-07.1999 |
| LANCIA | DEDRA SW (835_) 1.6 (835EB) | 159B9.000 | 10.1994-07.1999 |
| LANCIA | DELTA I (831_) 1.1 (831AB.015) | 831B8.000 | 01.1986-12.1990 |
| LANCIA | DELTA I (831_) 1.5 (831AB.025) | 831A1.000 | 09.1979-12.1992 |
| LANCIA | DELTA I (831_) 1.5 (831AB.025) | 831B1.000 | 09.1979-12.1992 |
| LANCIA | DELTA II (836_) 1.6 i.e. (836AD) | 835C1.000 | 06.1993-08.1999 |
| LANCIA | DELTA II (836_) 1.8 i.e. 16V (836AQ) | 182A2.000 | 03.1996-08.1999 |
| LANCIA | PRISMA (831_) 1.5 (831AB) | 138C2.048 | 09.1985-02.1992 |
| LANCIA | PRISMA (831_) 1.5 (831AB) | 831A1.000 | 01.1983-04.1986 |
| LANCIA | PRISMA (831_) 1.5 (831AB) | 831B1.000 | 05.1986-07.1989 |
| LANCIA | PRISMA (831_) 1.5 (831AB) | 831B1.048 | 09.1985-02.1992 |
| LANCIA | THEMA (834_) 2850 V6 i.e. (834AD, 834CD, 834BD) | 834E.146 | 06.1988-05.1992 |
| LANCIA | THEMA (834_) 2850 V6 i.e. (834F) | 834E.000 | 11.1984-09.1988 |
| LANCIA | THEMA (834_) 2850 V6 i.e. (834F) | 834E.146 | 11.1984-09.1988 |
| YUGO | FLORIDA (VX65) 1.4 | 160A1.000 | 10.1991-06.1995 |
| YUGO | FLORIDA (VX65) 1.4 Cat | 160A1.000 | 10.1988-11.2008 |
| YUGO | FLORIDA (VX65) 1.6 | 149A.000 | 08.1989-06.1995 |
Reference Information
| 140-10520 | ROBERT'S |
| 1548620 | HYSTER |
| 201-12102 | DIXIE |
| 20409861BN | REAL |
| 22761DR2 | WAI |
| 3542 | CEVAM |
| 580044885 | YALE |
| 6060168.0 | SANDO |
| 640.546.092.030 | WAI |
| 6984N | WAI |
| 8000158 | DELCO |
| 88213645 | POWERMAX |
| 9000890 | DELCO |
| 91-01-4793 | WILSON |
| A403559 | DOOSAN |
| A413593 | DOOSAN |
| CST60168AS | CASCO |
| S134.890 | WAI |
| STD0015 | KRAUF |
| STR2225 | ELECTROLOG |
| STR80149 | WOODAUTO |
| UD90341S | AS-PL |
| YT580044885 | YALE |
