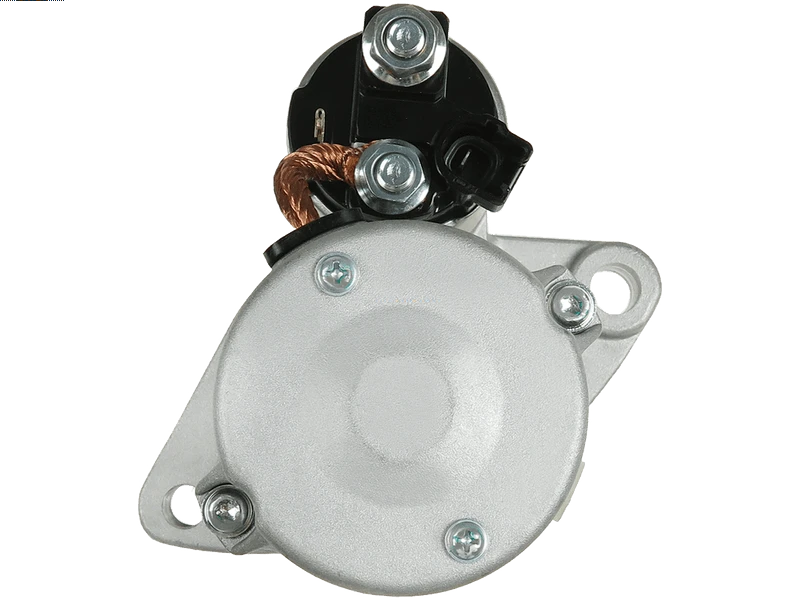

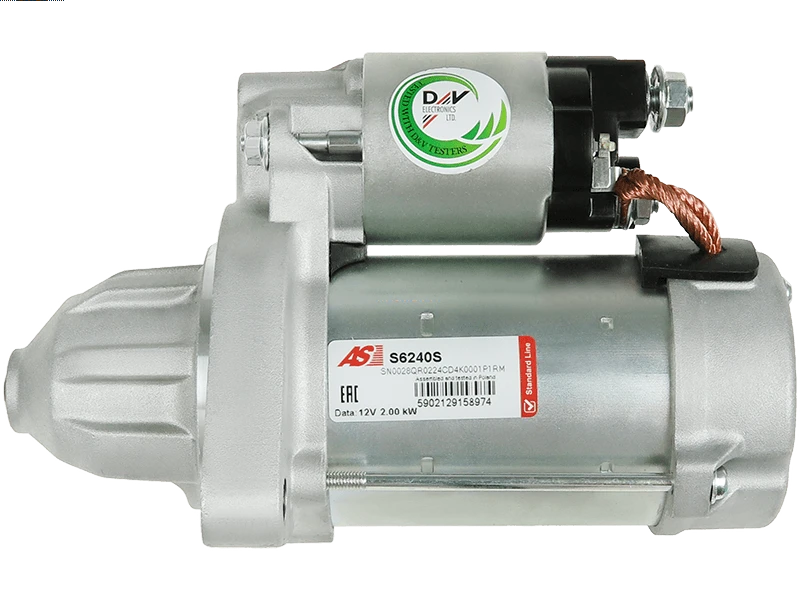

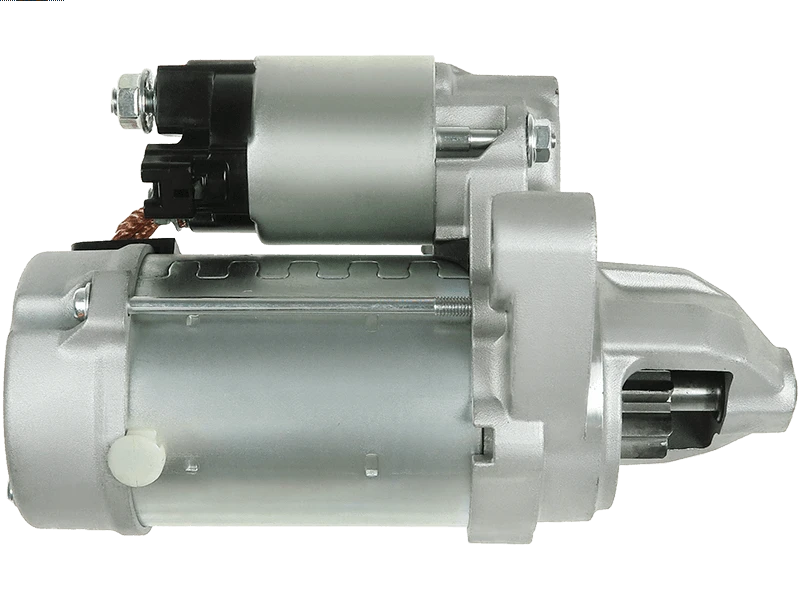

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 391.87 including GST
NZ$ 340.76 excluding GST
or four payments of $97.97
with
Learn More
each
S6240S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
428000-9481Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 201 mm |
| Mount Hole Center - Center (O.1) | 123 mm |
| Mount Hole Diameter (C.1) | M12x1.25 mm |
| Mount Hole Diameter (C.2) | 13 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | RAV4 2.0 D4-D | [1AD-FTV] | 01.2012- |
| TOYOTA | RAV4 2.0 D4-D 4WD | [1AD-FTV] | 01.2012- |
| TOYOTA | RAV4 2.2 D4-D 4WD | [2AD-FHV] | 01.2012- |
| TOYOTA | RAV4 2.2 D4-D 4WD | [2AD-FTV] | 01.2012- |
Reference Information
| 12409 | EAI |
| 190.920.092.050 | PSH |
| 190.920.092.260 | PSH |
| 20432104BN | REAL |
| 20432104OE | REAL |
| 220940 | ERA |
| 25-5078 | ELSTOCK |
| 255439D | KUHNER |
| 28100-26180 | TOYOTA |
| 28100-26181 | TOYOTA |
| 428000-9480 | DENSO |
| 428000-9481 | DENSO |
| 428000-9482 | DENSO |
| 428080-9482 | DENSO |
| 6040401.0 | SANDO |
| 6040401.1 | SANDO |
| 88215227 | POWERMAX |
| 9638 | CEVAM |
| AEX1244 | AUTOELECTRO |
| CGB-55078 | AINDE |
| CST40401AS | CASCO |
| CST40401GS | CASCO |
| DENDSN1235 | WOODAUTO |
| DRS0953 | DELCO |
| DSN1235 | DENSO |
| LRS03915 | LUCAS |
| LRS3915 | LUCAS |
| PRSE516 | 3EFFE |
| S6240S | AS-PL |
| STN6180 | KRAUF |
| STR6692 | ELECTROLOG |
| STR70539 | WOODAUTO |
| STRE516 | 3EFFE |
| STX210256 | STARDAX |
| STX210256R | STARDAX |
| UD19724S | AS-PL |
Video/Publications
