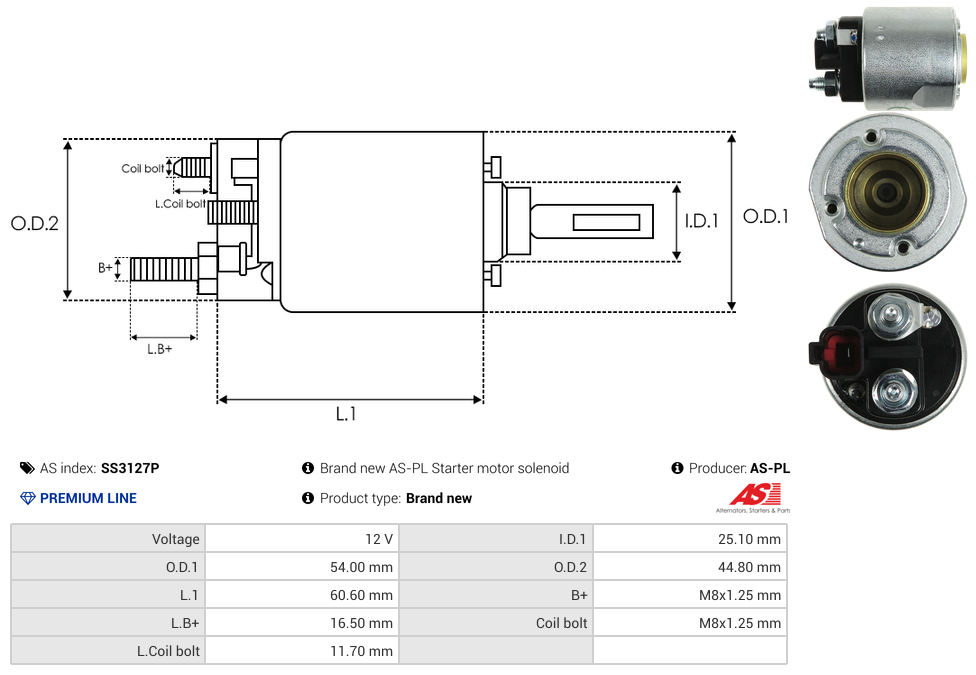

Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 11.7 mm |
| Inside Diameter (I.D.1) | 25.1 mm |
| L.B+ | 16.5 mm |
| Length (L.1) | 60.6 mm |
| Outside Diameter (O.D.1) | 54 mm |
| Outside Diameter (O.D.2) | 44.8 mm |
| Unit Type | VALEO |
| Voltage | 12 V |
Reference Information
UD16455SS ZM9492Video/Publications
1196601 25183761 12609317 25383761 S001196601Add Your Number
