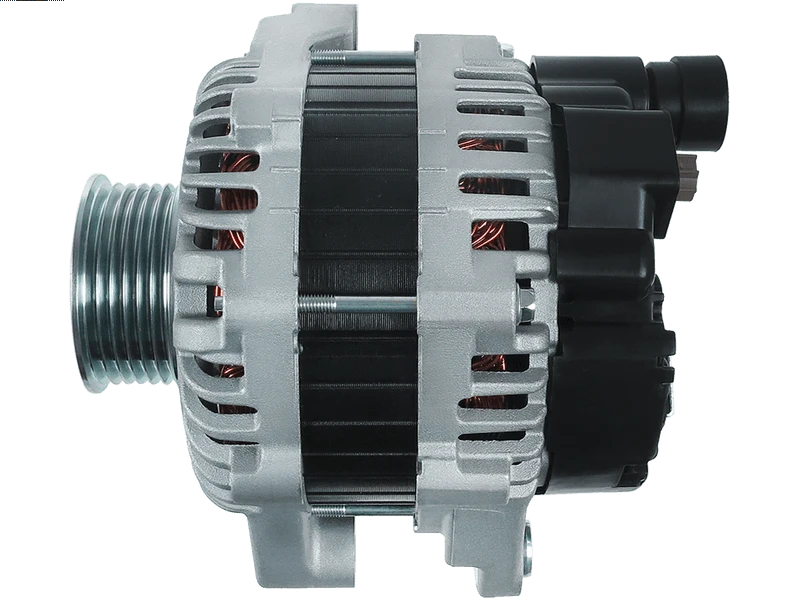

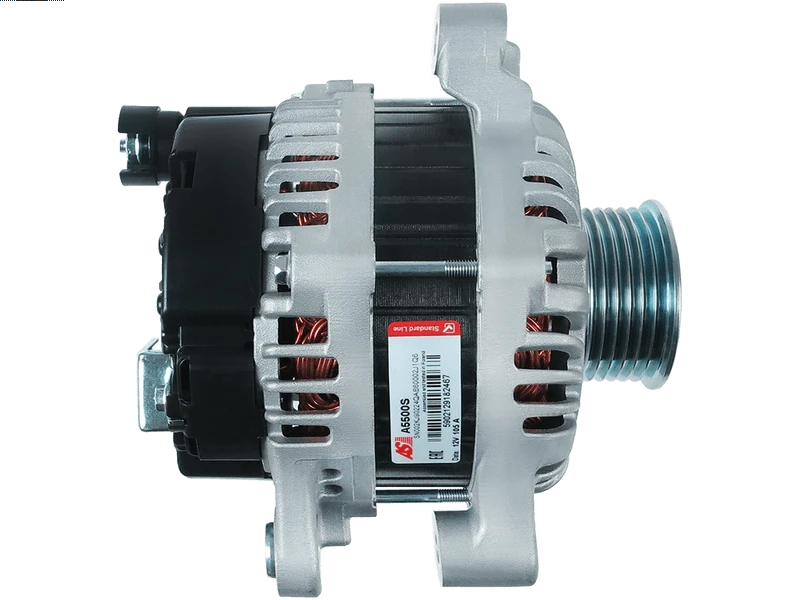

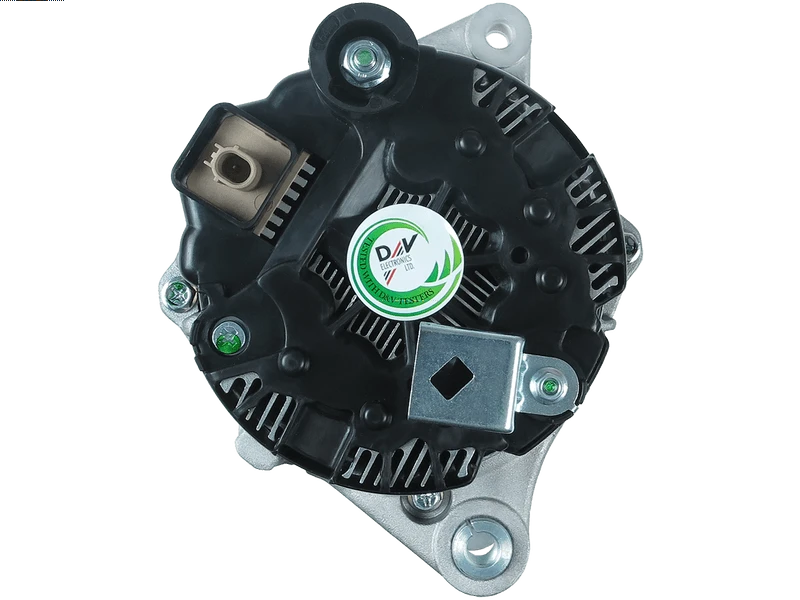

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 599.77 including GST
NZ$ 521.54 excluding GST
or four payments of $149.94
with
Learn More
each
A5500S
3
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
A5TZ0391Specifications
| Amp | 105 A |
| Bottom Mounting Foot Width (B) | 29 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 176 mm |
| Mount Inside Length or Pad Mount C-C (C) | 36 mm |
| OEM Product | No |
| Plug Code | PL_1000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 50.50 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Fit 1.5 | 01.2014- | |
| HONDA | Jazz 1.5 | 01.2015- |
Reference Information
| 125.901.105.130 | PSH |
| 21139N | WAI / TRANSPO |
| 31100-50Z-G01 | HONDA |
| 31100-5R0-004 | HONDA |
| 31100-5R0-014 | HONDA |
| 31100-5R1-004 | HONDA |
| 31100-5R1-014 | HONDA |
| 40661 | CEVAM |
| 90-27-3460 | WILSON |
| A005TZ0091 | MITSUBISHI |
| A005TZ0091A | MITSUBISHI |
| A005TZ0091ZC | MITSUBISHI |
| A005TZ0291 | MITSUBISHI |
| A005TZ0391 | MITSUBISHI |
| A5TZ0091 | MITSUBISHI |
| A5TZ0091A | MITSUBISHI |
| A5TZ0091ZC | MITSUBISHI |
| A5TZ0291 | MITSUBISHI |
| A5TZ0391 | MITSUBISHI |
| AHGA103 | HONDA |
| AHGA92 | HONDA |
| AHGA96 | HONDA |
| ALM2292 | KRAUF |
| ALT5526 | ELECTROLOG |
| UD101280A | AS-PL |
