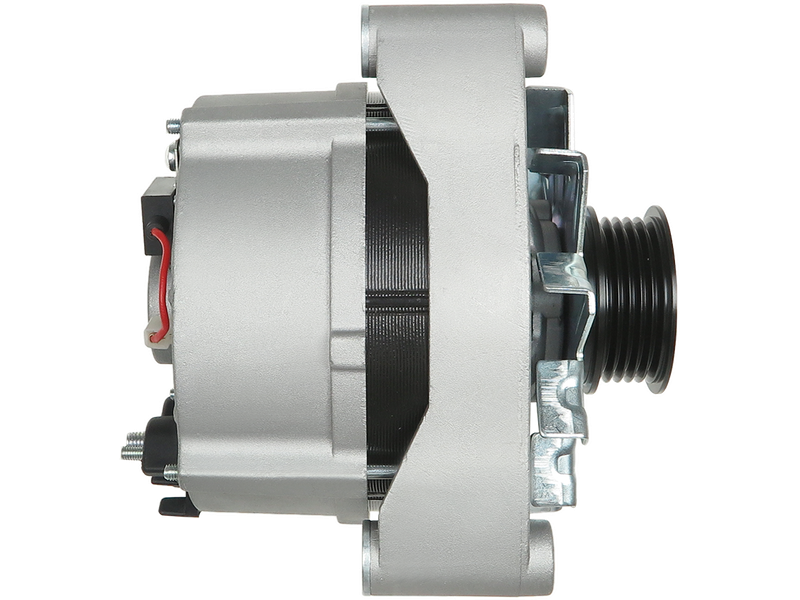

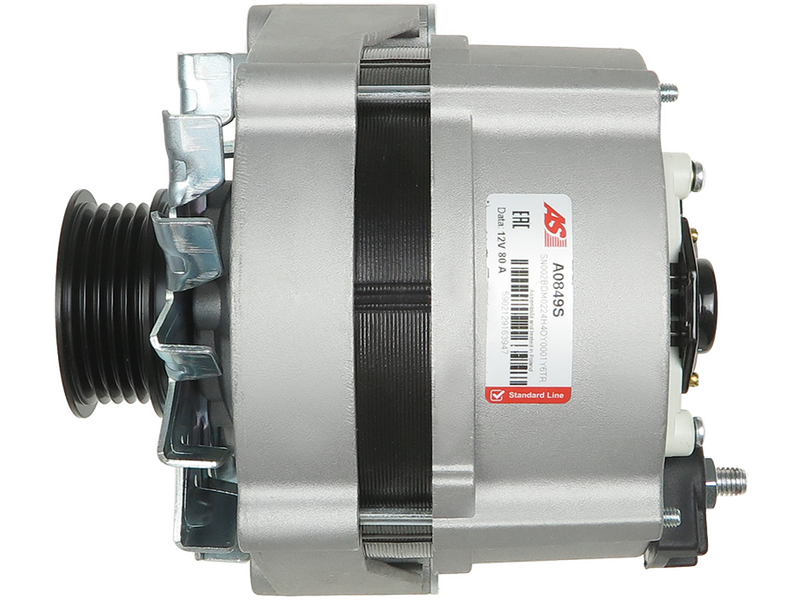

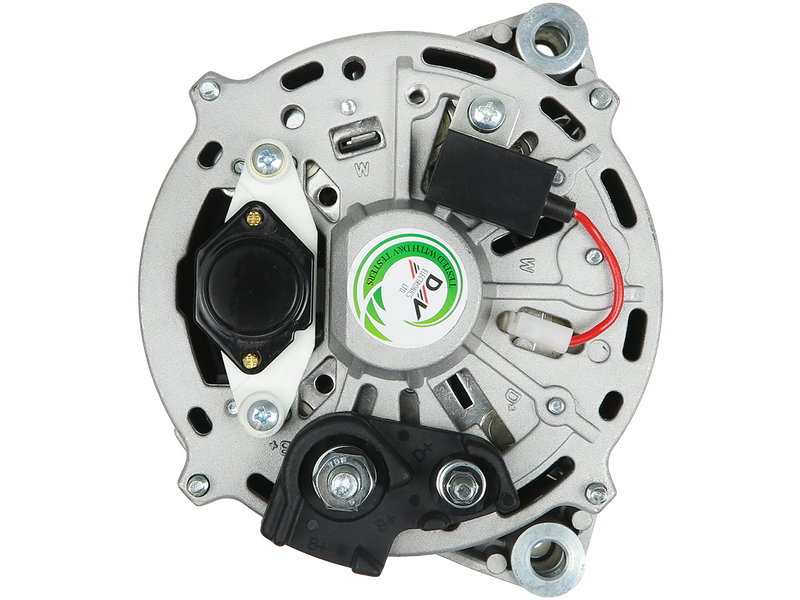

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 378.20 including GST
NZ$ 328.87 excluding GST
or four payments of $94.55
with
Learn More
each
A0849S
1
Information
0120469684Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Length (L.1) | 178 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 80 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 323 S 1.6 16V | [B6] | 08.1989-10.1996 |
| SAAB | 9000 2.0 | [B202I] | 10.1988-01.1990 |
| SAAB | 9000 2.0 | [B202I] | 10.1988-08.1990 |
| SAAB | 9000 2.0 -16 | [B202I] | 01.1989-01.1993 |
| SAAB | 9000 2.0 -16 | [B202XI] | 12.1985-08.1988 |
| SAAB | 9000 2.0 -16 | [B202XI] | 12.1985-12.1988 |
| SAAB | 9000 2.0 -16 CS | [B202I] | 01.1989-12.1998 |
| SAAB | 9000 2.0 -16 CS | [B202XI] | 01.1989-12.1998 |
| SAAB | 9000 2.0 -16 Turbo | [B202] | 06.1989-12.1992 |
| SAAB | 9000 2.0 -16 Turbo | [B202L] | 09.1984-12.1991 |
| SAAB | 9000 2.0 -16 Turbo | [B202XL] | 04.1985-12.1991 |
| SAAB | 9000 2.0 -16 Turbo | [B202XL] | 05.1988-08.1993 |
| SAAB | 9000 2.0 -16 Turbo | [B202XL] | 09.1984-08.1993 |
| SAAB | 9000 2.0 -16 Turbo | [B202XL] | 09.1984-12.1991 |
| SAAB | 9000 2.0 -16 Turbo CD | [B202L] | 09.1989-12.1998 |
| SAAB | 9000 2.0 -16 Turbo CD | [B202S] | 09.1992-12.1998 |
| SAAB | 9000 2.0 -16 Turbo CD | [B202XL] | 09.1988-08.1993 |
| SAAB | 9000 2.0 -16 Turbo CD | [B204E] | 09.1992-12.1998 |
| SAAB | 9000 2.0 -16 Turbo CS | [B202L] | 09.1988-12.1998 |
| SAAB | 9000 2.0 16V | [B202L] | 09.1989-01.1990 |
Reference Information
| 0120469644 | BOSCH |
| 0120469644 | BOSCH |
| 0120469645 | BOSCH |
| 0120469645 | BOSCH |
| 0120469684 | BOSCH |
| 0120469685 | BOSCH |
| 0120469685 | BOSCH |
| 0986033910 | BOSCH |
| 0986033910 | BOSCH |
| 14791R | WAI / TRANSPO |
| 14791R | WAI / TRANSPO |
| 20100729 | PRESTOLITE |
| 20100729 | PRESTOLITE |
| 28-1666 | ELSTOCK |
| 28-1666 | ELSTOCK |
| 30567RI | KUHNER |
| 30567RI | KUHNER |
| 30567RIM | KUHNER |
| 30567RIM | KUHNER |
| 436311 | VALEO |
| 436311 | VALEO |
| 440714 | LOGISTIK |
| 475.002.080.010 | PSH |
| 475.002.080.010 | PSH |
| 55939 | EAI |
| 55939 | EAI |
| 8545725 | SCANIA |
| 89212869 | POWERMAX |
| 90-15-6153 | WILSON |
| 90-15-6153 | WILSON |
| 9120973 | SCANIA |
| 9120981 | SCANIA |
| 944390339100 | MAGNETI MARELLI |
| 944390339100 | MAGNETI MARELLI |
| 9506353 | SCANIA |
| 9526005 | SCANIA |
| 9529033 | SCANIA |
| A132.630 | PSH |
| A132.630 | PSH |
| AEA7129 | AUTOELECTRO |
| AEA7129 | AUTOELECTRO |
| ALB0567 | KRAUF |
| ALT10207 | WOODAUTO |
| ALT10207 | WOODAUTO |
| ALT1509 | ELECTROLOG |
| ALTL508 | 3EFFE |
| ANM36130 | ANDEL |
| ANM36130 | ANDEL |
| CA567IR | HC PARTS |
| CA567IR | HC PARTS |
| DRA3910 | DELCO |
| LRA00729 | LUCAS |
| LRA00729 | LUCAS |
| LRA729 | LUCAS |
| LRA729 | LUCAS |
| MAR542 | MAGNETI MARELLI |
| MAR542 | MAGNETI MARELLI |
| MRA33910 | MAGNETI MARELLI |
| MRA33910 | MAGNETI MARELLI |
| PRAL508 | 3EFFE |
| UD21350A | AS-PL |
| UD21350A | AS-PL |
