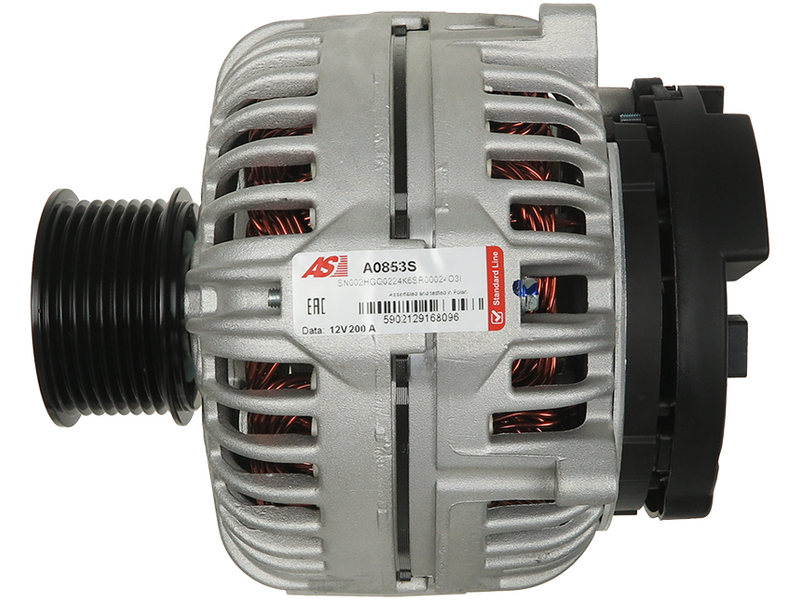

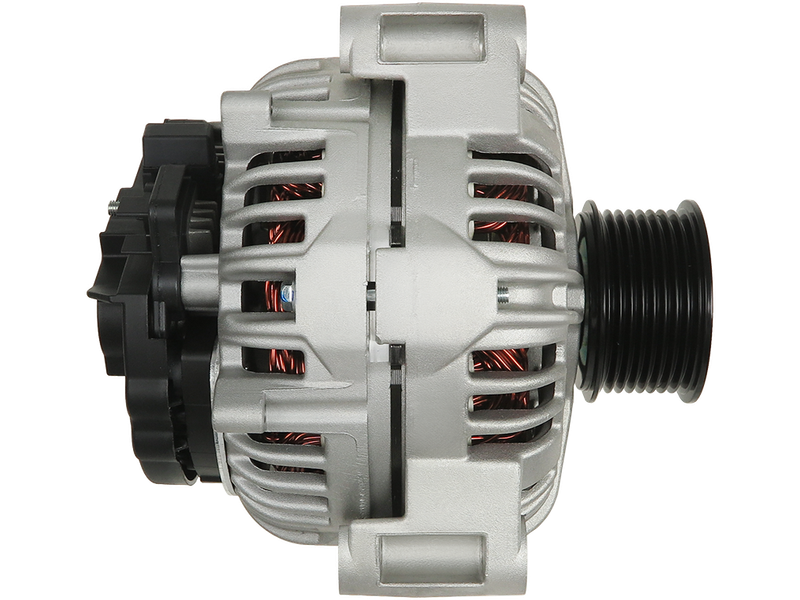

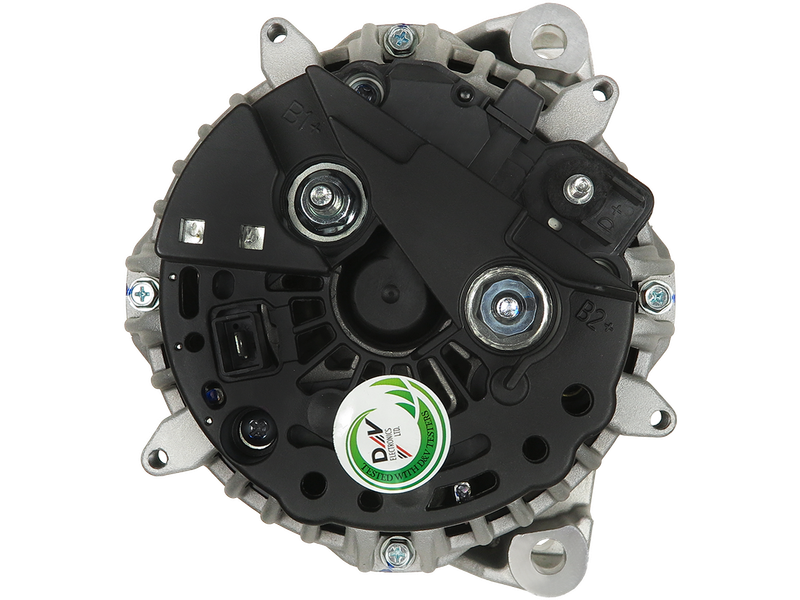

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 525.40 including GST
NZ$ 456.87 excluding GST
or four payments of $131.35
with
Learn More
each
A0853S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Information
0124625084Specifications
| Amp | 200 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 196 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 86 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 540H 6.8 | [6068] | 01.2010-01.2016 |
| JOHN DEERE | 548H 6.8 | [6068] | 01.2009-01.2016 |
| JOHN DEERE | 640H 6.8 | [6068] | 01.2007-01.2016 |
| JOHN DEERE | 648H 6.8 | [6068] | 01.2007-01.2016 |
| JOHN DEERE | 7280 13.5 | [6135] | 01.2013-01.2016 |
| JOHN DEERE | 7380 13.5 | [6135] | 01.2013-01.2016 |
| JOHN DEERE | 7480 13.5 | [6135] | 01.2013-01.2016 |
| JOHN DEERE | 748H 6.8 | [6068] | 01.2007-01.2016 |
| JOHN DEERE | 7580 13.5 | [6135] | 01.2013-01.2016 |
| JOHN DEERE | 7760 13.5 | [6135] | 01.2012-01.2014 |
| JOHN DEERE | 7780 13.5 | [6135] | 01.2013-01.2016 |
| JOHN DEERE | 848H 6.8 | [6068] | 01.2007-01.2016 |
| JOHN DEERE | 9360R 9.0 | [6090] | 01.2012-01.2014 |
| JOHN DEERE | CP690 13.5 | [6135] | 01.2014-01.2019 |
| JOHN DEERE | R4038 9.0 | [6090] | 01.2014-01.2018 |
| JOHN DEERE | R4045 9.0 | [6090] | 01.2014-01.2019 |
| JOHN DEERE | W155 4.5 | [4045] | 01.2015-01.2021 |
| JOHN DEERE | W170 4.5 | [4045] | 01.2019-01.2020 |
Reference Information
| 0124625083 | BOSCH |
| 0124625084 | BOSCH |
| 0124625214 | BOSCH |
| 2010195AOE | REAL |
| 2010A59.1 | SANDO |
| 556426RI | KUHNER |
| 635.557.200.010 | PSH |
| 90-15-6697 | WILSON |
| A134.918 | PSH |
| AT384632 | JOHN DEERE |
| CAL10A59GS | CASCO |
| RE544808 | JOHN DEERE |
| UD100879A | AS-PL |
