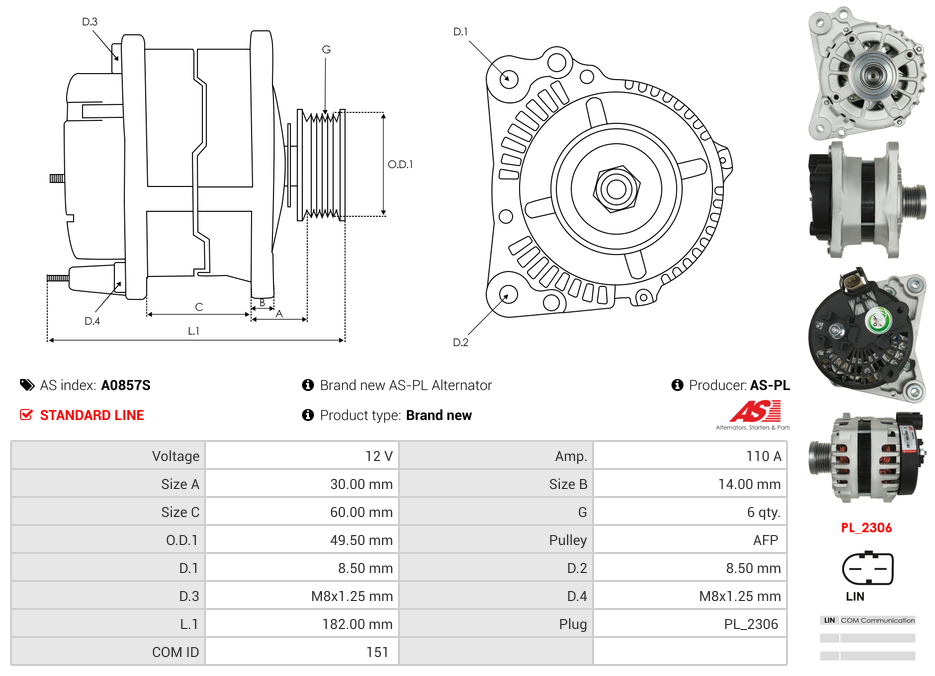

Specifications
Amp | 110 A |
Bottom Mounting Foot Width (B) | 14 mm |
Diameter (D.1) | 8.5 mm |
Diameter (D.2) | 8.5 mm |
Diameter (D.3) | M8x1.25 mm |
Diameter (D.4) | M8x1.25 mm |
Grooves | 6 qty |
Length (L.1) | 182 mm |
Mount Inside Length or Pad Mount C-C (C) | 60 mm |
OEM Product | No |
Outside Diameter (O.D.1) | 49.5 mm |
Plug Code | PL_2306 |
Product Line | Standard Line |
Product Type | Brand new |
Pulley to Mount Distance (A) | 30 mm |
Pulley Type | CLUTCH |
Unit Type | BOSCH |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
VW | Polo | ||
VW | T-Cross |
Reference Information
UD101074A 04E903015KAdd Your Number
